SmartNode 4654 & 4658 ADSL2+ Quick Start Guide 5
In general, the SmartNode will connect to the network via the WAN (DSL) port. This enables the SmartNode to
offer routing services to the PC hosts on LAN (ETH 0/)) port. The SmartNode 4650 ADSL2+ Series provides an
auto-MDX feature for both Ethernet ports, so you can use a straight-through or cross-over cable to connect to a
host or a switch (see
figure 2 ).

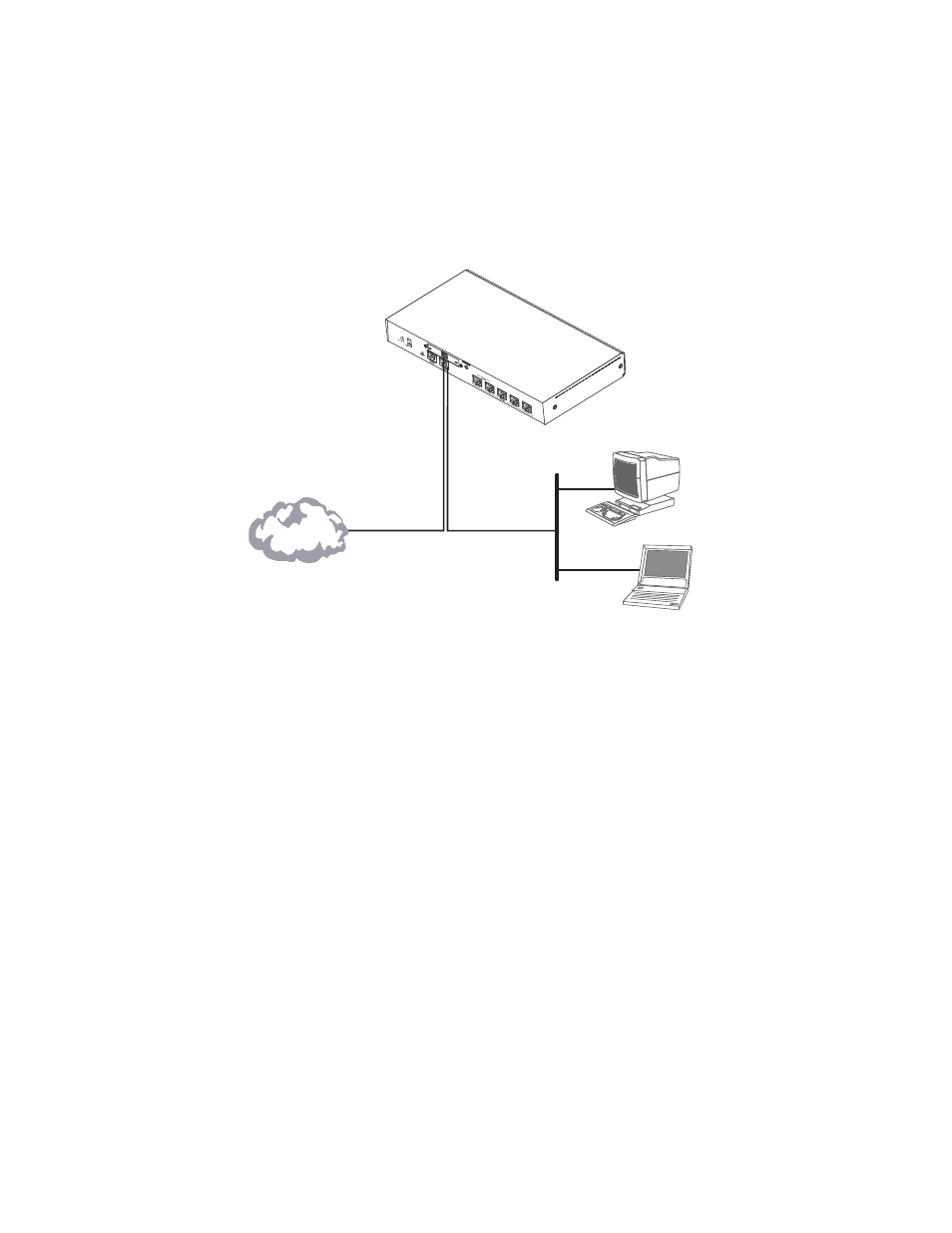

Figure 2. Connecting the SmartNode to the network
1. You can check the connection with the ping command from the SmartNode to another host on the
local LAN.
172.16.1.99(if-ip)[eth_dsl]#ping
Note If the WAN address is not set to DHCP, to ping a device outside your local LAN you must first configure
the default gateway. (For information on configuring the default gateway, refer to section “Set IP
addresses” in Appendix C, “Command Summary” of the SmartNode Series SmartWare Software Config-
uration Guide.)
ACT
LINK
12V , 1.25A
– +
Straight-through wired
or crossover cable
LAN (ETH 0/0)
LAN
WAN (DSL)
Network
