Poulan Pro PR624ES SNOW THROWER - Manual (Page 36)

36

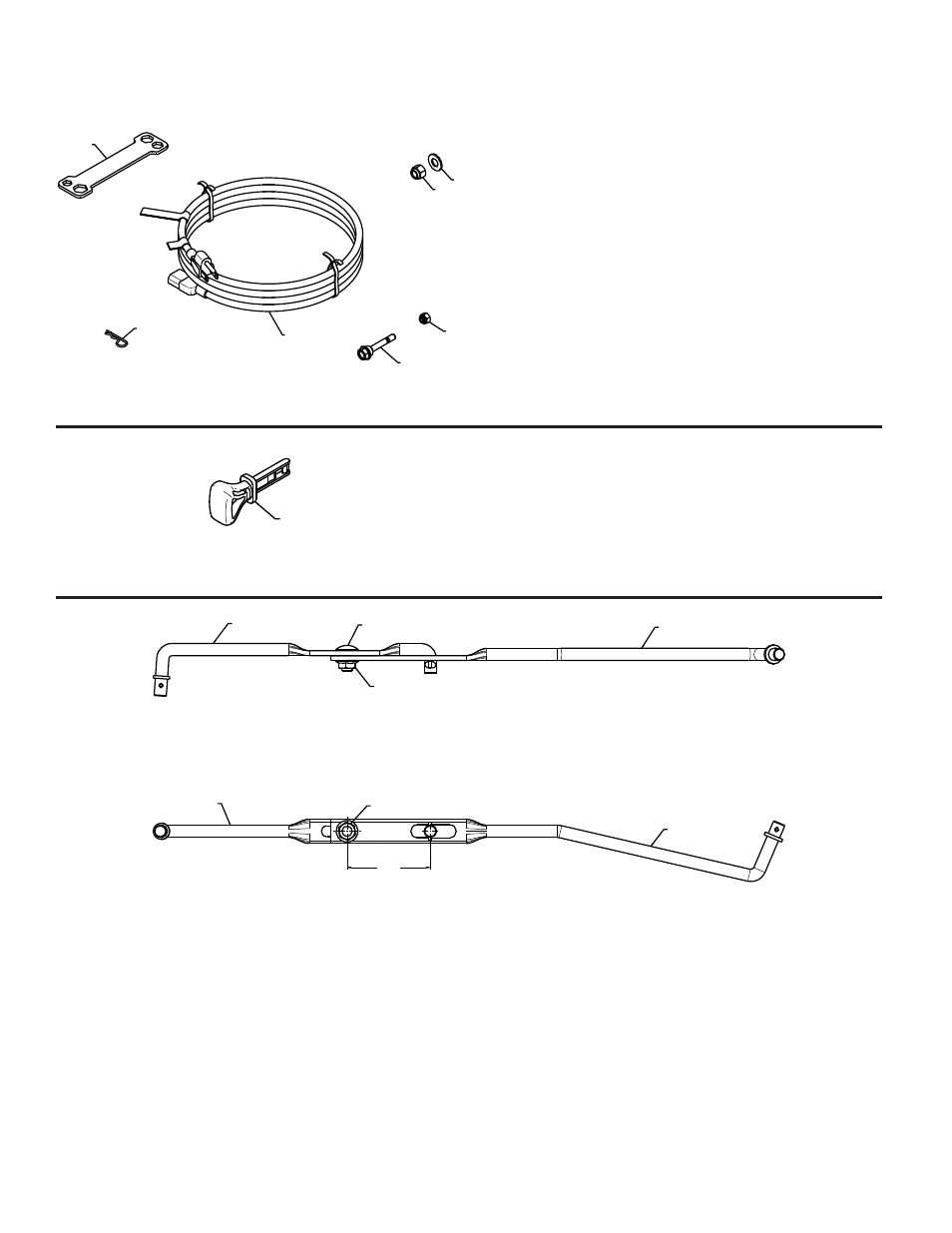

REPAIR PARTS
SNOW THROWER - - MODEL NO. PR624ES (96192002901)
BAG OF PARTS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
7
01.14.004-B
01.14.009-A
1
1 198563 POWER CORD
2 169675 RETAINER PIN
3 180684X008 WRENCH
4 73800600 LOCKNUT 3/8−16
5 19131316 WASHER 3/8
6 192090 SHEAR BOLT 1/4−20 X 1−3/4
7 73800400 LOCKNUT 1/4−20
1 422663 SAFETY IGNITION KEY
1
1
2
2
3
2.56
01.14.012-A
4
4
1 180445 SHIFTER ROD TOP
2 187716 SHIFTER ROD BOTTOM
3 72270505 CARRIAGE BOLT 5/16-18 X .75
4 155377 NUT 5/16-18
