ProForm GT 95X PFEX3096.0 User Manual
Page 6

6

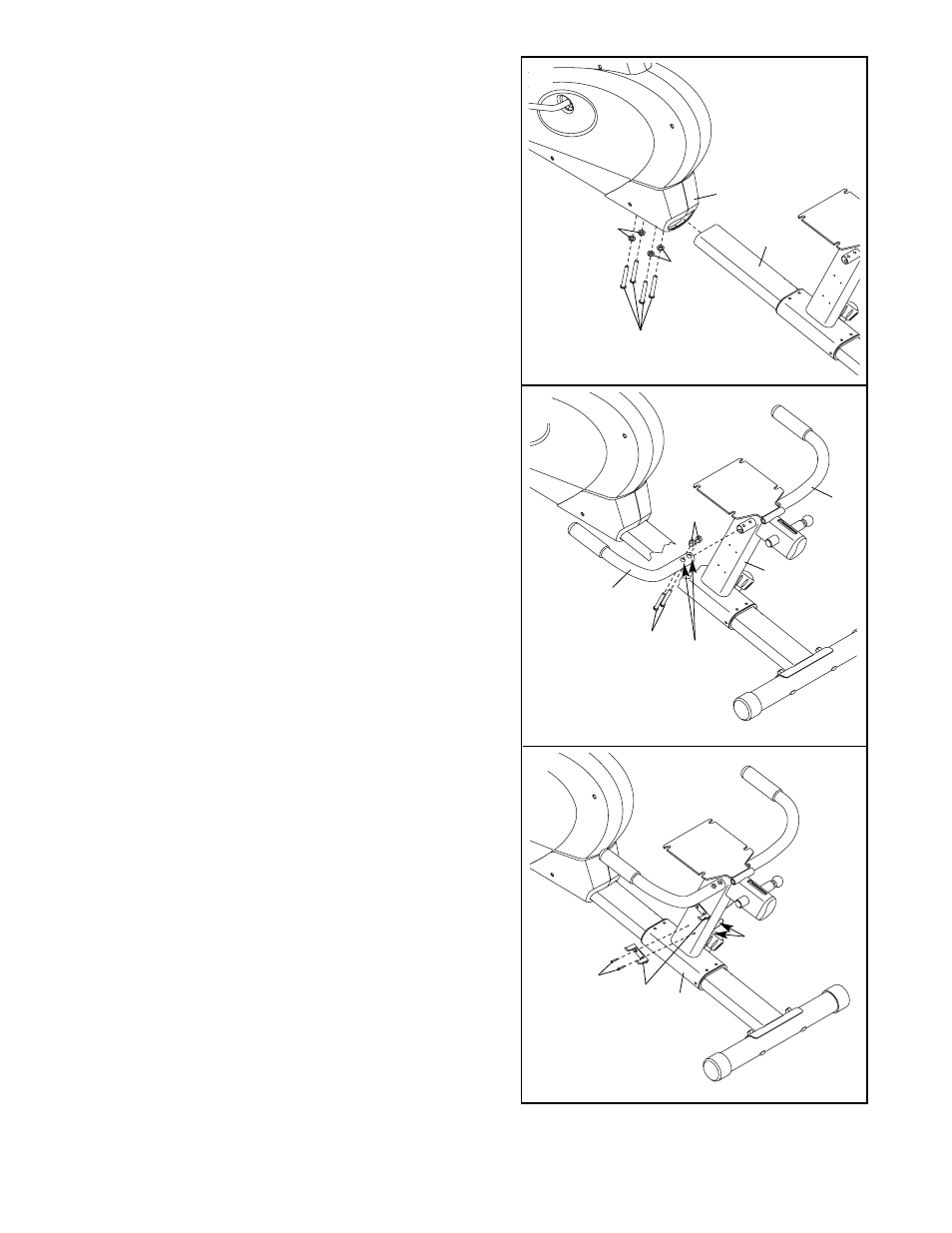

7. Attach a Dumbbell Cradle (33) to the side of the Seat
Carriage (3) with two M4 x 10mm Screws (54).
Repeat this step for the other three Dumbbell
Cradles (33).
6. Identify the Left Handlebar (35), which is marked with
a sticker. Orient the Left Handlebar with the hexagonal
holes facing upward. Attach the Left Handlebar to the
Seat Carriage (3) with two M8 x 38mm Button Bolts
(45) and two M8 Nylon Locknuts (47). Make sure the
Nylon Locknuts are in the hexagonal holes.
Repeat this step for the Right Handlebar (36).
5. Slide the rear of the Frame (1) onto the Seat Rail (2).
Attach the Frame with four M10 x 25mm Button
Screws (50) and four M10 Split Washers (48).
5
6
7
50
35
45
47
Hexagonal
Holes
36
48
48
33
54
33
3
1
2
3
