SM/SMBW 2000 Series™ Filter Installation and User’s Guide
Section 6
Replacement Parts

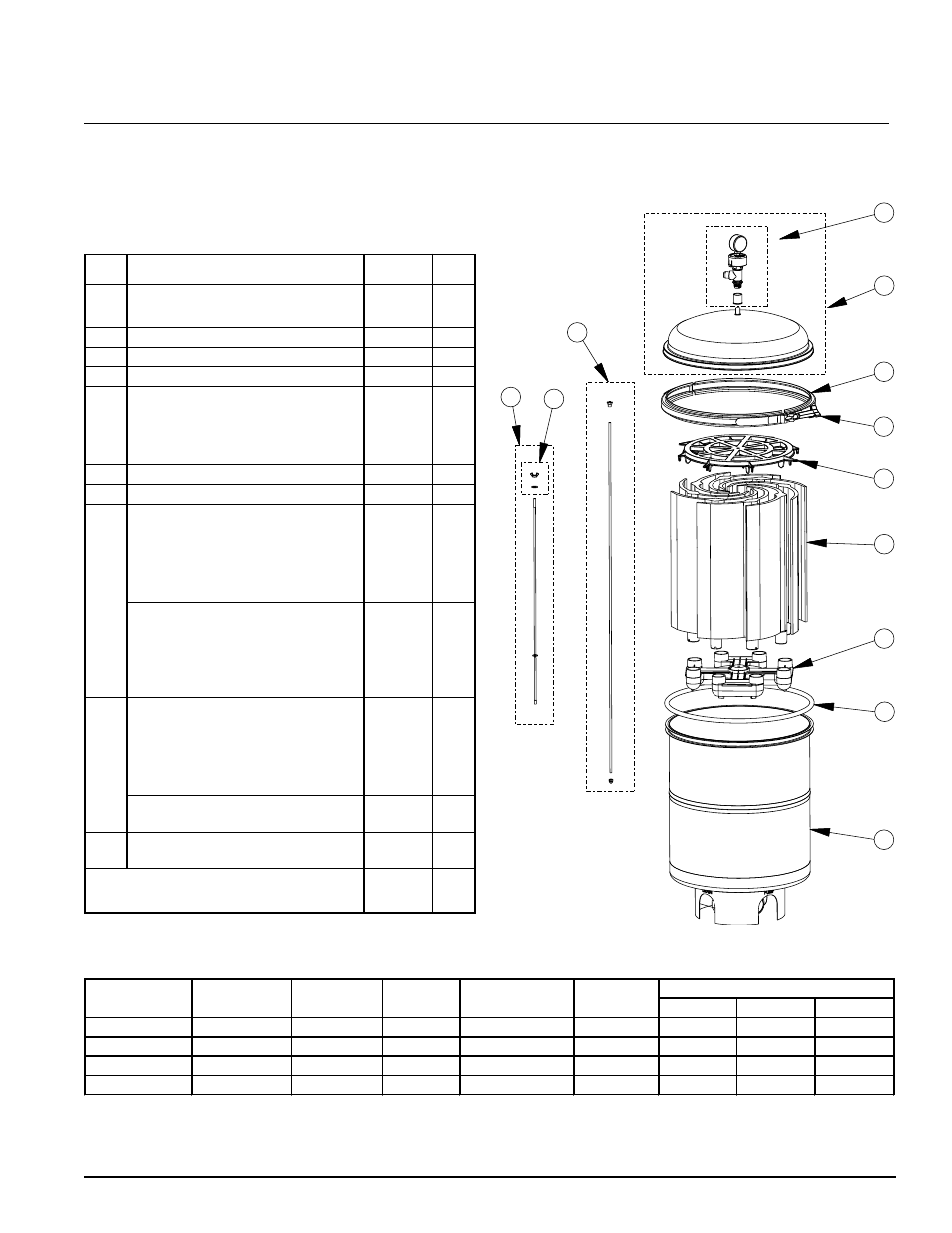

Replacement Parts List
Model SM/SMBW 2000 Series™ Filter
ITEM DESCRIPTION P/N QTY.
1 Manual Air Relief Valve Kit 188597 1
2 Lid w/Manual Air Relief Valve Kit 188603 1
3 Clamp Ring 2000 Knob Style 072898 1
4 Knob, Plastic 076033 1
5 Holding Wheel 2000 071019 1
6 Element 2036 - 18" 074923 8
Element 2048 - 24" 074924
Element 2060 - 30" 074925
Element 2072 - 36" 074926
7 Manifold 2000 Series - 8 Hole 073270 1
8 O-Ring, Channel w/Red Line 071442 1
9 Tank SM – Less Collector 1
SM 2036 073437
SM 2048 073438
SM 2060 073439
SM 2072 073440
Tank SMBW – Less Casting 1
SM 2036 073442
SM 2048 073443
SM 2060 073444
SM 2072 073445
10 Center Rod Kit 1
SM/SMBW 2036 188598
SM/SMBW 2048 188599
SM/SMBW 2060 188600
SM/SMBW 2072 188601
11 Center Rod Hardware Kit 188596 1
Includes: Washer and Wing Nut
12 Vent Tube Kit 075279 1
Includes: Screen Cap and Nut
Not Shown
Collector 3 Port 2" SM Series only 072901 1
12
11 10
1
2
3
4
5
6
7
8
9
Flow Rate Table
Model Filter Vertical Filter D.E. Required Flow Rate
Number Area Sq. Ft. Clearance* Diameter (Lbs.) (GPM)** 8hrs. 10hrs. 12hrs.
SMBW 2036† 35 60" 20" 3.6 70 33,600 42,000 50,400
SMBW 2048† 47 66" 20" 4.8 94 45,120 56,400 67,680
SMBW 2060† 58 72" 20" 6 116 55,680 69,600 83,520
SMBW 2072† 70 78" 20" 7.2 140 67,200 84,000 100,800
* Required clearance to remove filter elements
** Maximum flow rate
† Also available without backwash valve—SM models
Turnover Capacity-Res.
