34

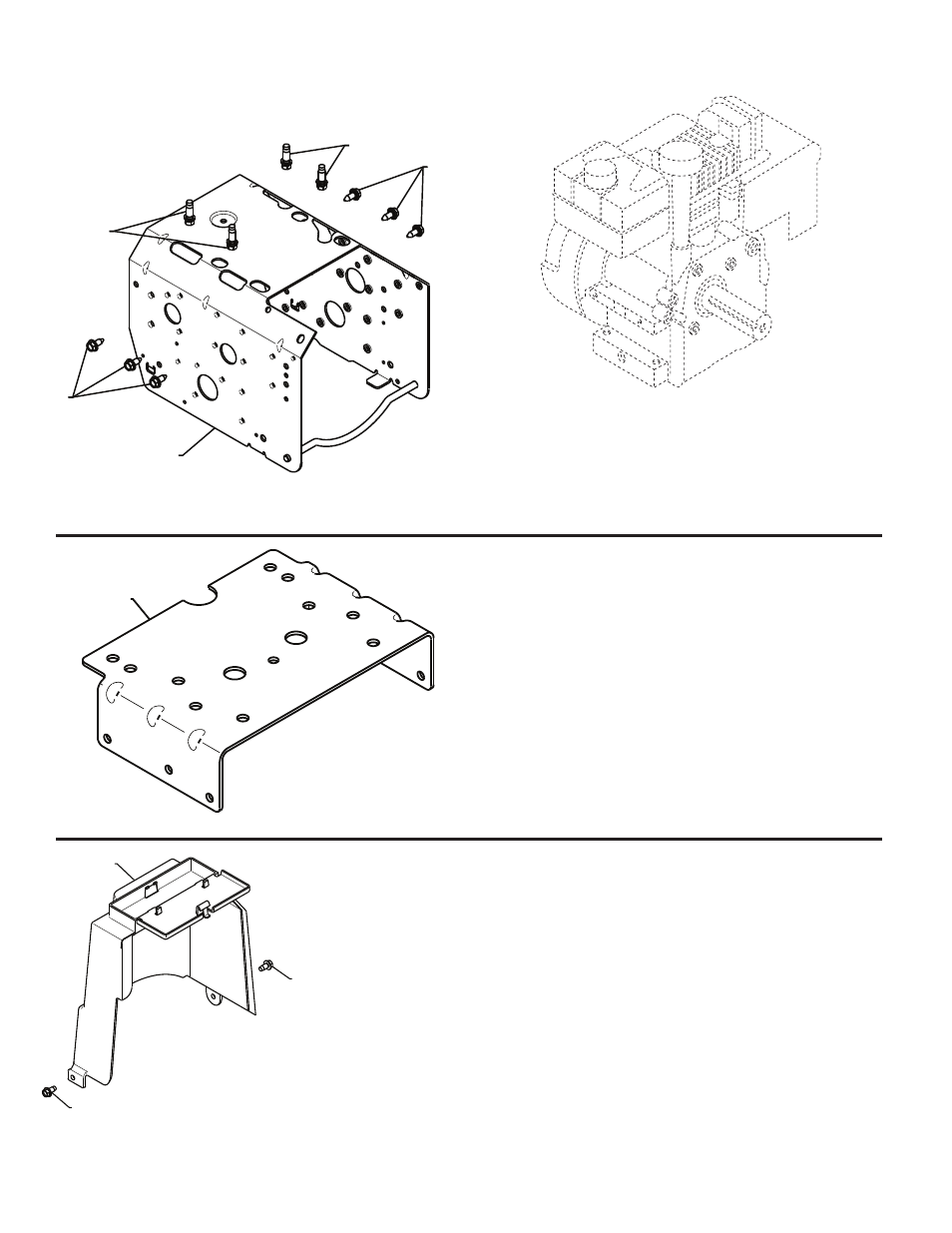

REPAIR PARTS
SNOW THROWER - MODEL PR1030ES (96192003100)
CHASSIS / ENGINE / PULLEYS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
2
3
3
01.00.034-A
- - 428173 COMPLETE LCT ENGINE
1 418694X428 FRAME
2 150406 BOLT 3/8-16
3 428867 SCREW 5/16-18 X .750
1
01.01.004-A
1 427963X428 ENGINE MOUNTING PLATE
01.21.014-B
1
2
2
1 418601 COVER ASSEMBLY
2 17490408 SCREW 1/4-20 X .50
