25
REPAIR PARTS
SNOW THROWER - - MODEL NO. XT824ES (96192003302)

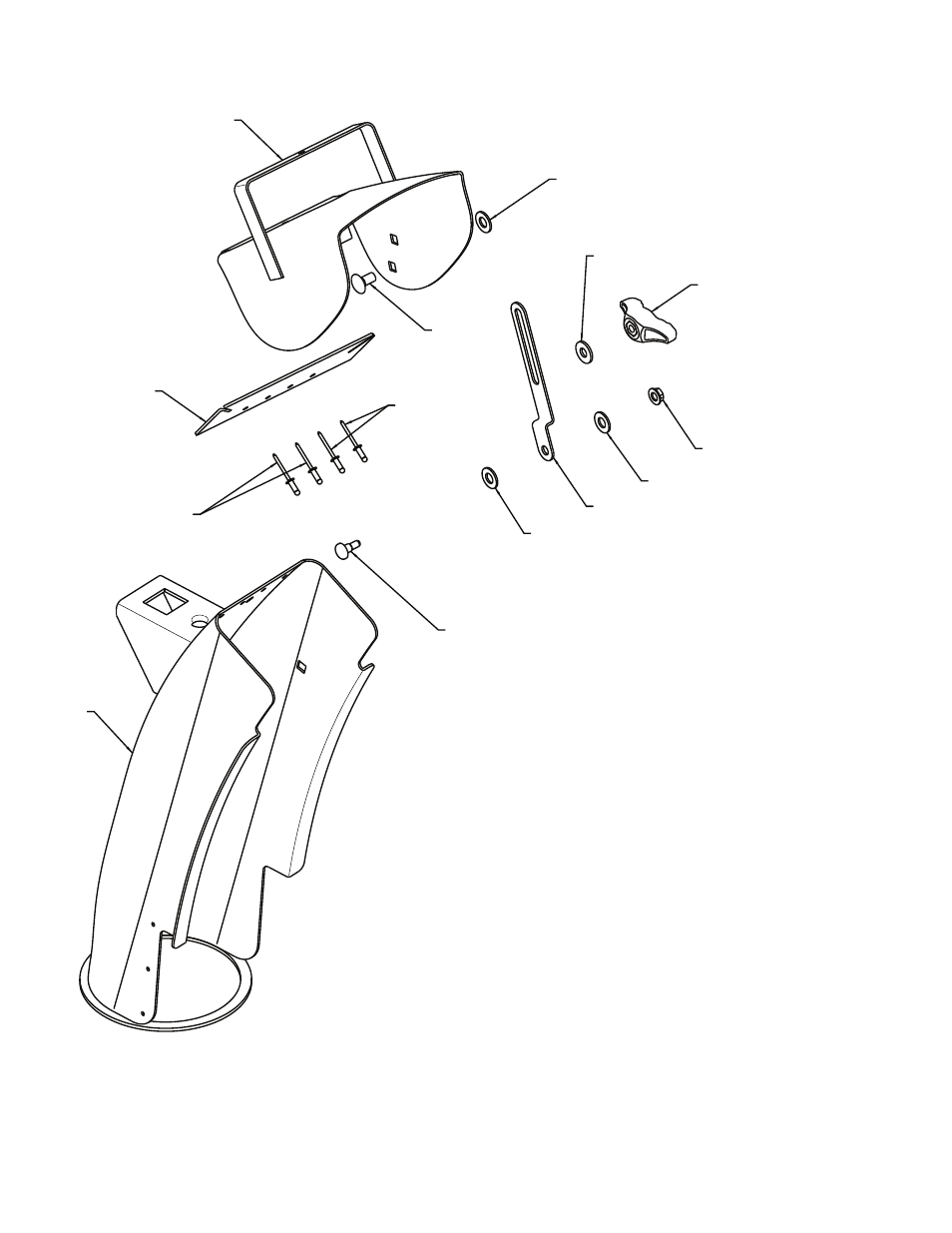

CONTROL PANEL / DISCHARGE CHUTE
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
6
6
7
8
9
11
11
11
10
01.09.001-B
1 420315X505 CHUTE WELDMENT
2 178633X505 DEFLECTOR WELDMENT
3 420325 DEFLECTOR SEAL
4 179096 X479 STRAP
5 189713X428 KNOB BLACK
6 128415 POP RIVET
7 185600 SHOULDER BOLT 1/4−20 X .704
8 72270505 CARRIAGE BOLT 5/16−18 X .625
9 191730 NUT 1/4−20
10 155415 WASHER
11 179246 PLASTIC WASHER
