14

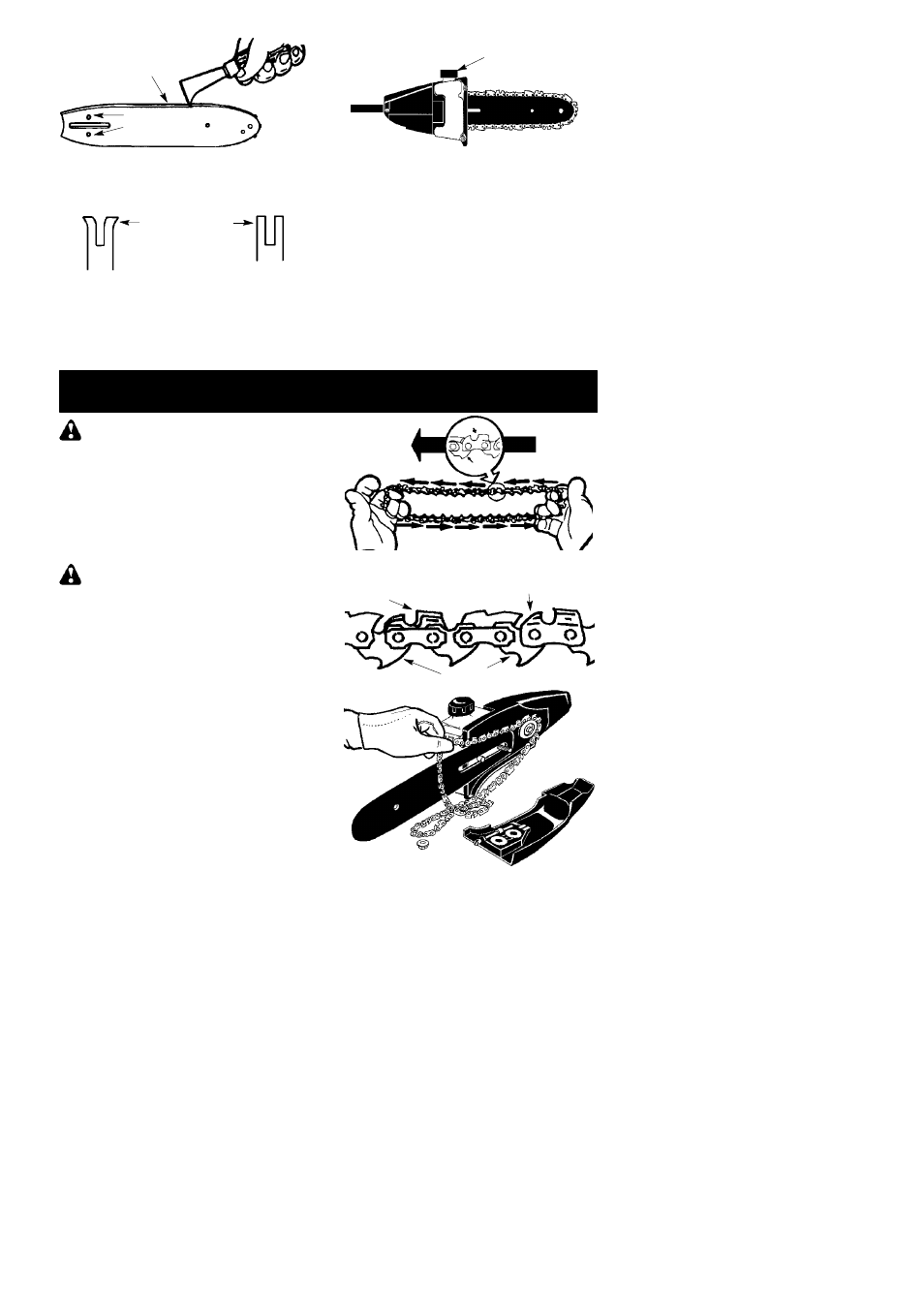

Remove Sawdust From
Guide Bar Groove
Oil Holes
S Burring of guide bar rails is a normal
process of rail wear. Remove these burrs
with a flat file.
S When rail top is uneven, use a flat file to
restore square edges and sides.
Correct Groove Worn Groove
File Rail Edges
and Sides
Square
Replace guide bar when the groove is worn,
the guide bar is bent or cracked, or when
excess heating or burring of the rails occurs. If
replacement is necessary, use only the guide
bar specified for your pruner in the repair
parts list.
LUBRICATION
Bar Oil
Fill Cap
S See GUIDE BAR AND CHAIN OIL under
the OPERATION section.
REPLACE SPARK PLUG
Replace the spark plug each year to ensure
the engine starts easier and runs better. Set
spark plug gap at 0.025 inch. Ignition timing is
fixed and nonadjustable.
1. Twist, then pull off spark plug boot.
2. Remove spark plug from cylinder and
discard.
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 3/4 inch
socket wrench.
4. Reinstall the spark plug boot.
SERVICE AND ADJUSTMENTS
WARNING: Disconnect the spark
plug before performing maintenance, service, or
adjustments except for carburetor adjustments.
CHAIN SHARPENING
Chain sharpening is a complicated task that
requires special tools. We recommended you
refer chain sharpening to a professional chain
sharpener.
CHAIN REPLACEMENT
WARNING:
Wear protective gloves
when handling chain. The chain is sharp and
can cut you even when it is not moving.
It is normal for a new chain to stretch during the
first 15 minutes of operation. You should re-
check your chain tension frequently and adjust
the chain tension as required. See CHAIN TEN-
SION section.
Replace the old chain when it becomes worn or
damaged. Use only the Low-Kickback replace-
ment chain specified in the repair parts list.
TO REPLACE CHAIN:
1. Move ON/OFF switch to the OFF position
and disconnect spark plug.
2. Remove bar clamp nut.
3. Remove bar clamp.
4. Turn adjusting screw by hand counter-
clockwise until adjusting pin just touches
the stop.
5. Slide guide bar behind sprocket until
guide bar stops against sprocket.
6. Remove the old chain.
7. Carefully remove new chain from pack-
age. Hold chain with the drive links as
shown.
CUTTERS MUST FACE IN
DIRECTION OF ROTATION
Tip of
Bar
Cutter
Drivelink
Cutters
Depth Gauge
Drive Links
8. Place chain over sprocket, fitting the
drive links in the sprocket.
9. Fit bottom of drive links between the teeth
in the sprocket in the nose of the guide
bar.
10. Fit chain drive links into bar groove.
