Connecting up 02
9
En
English
Chapter 2
Connecting up

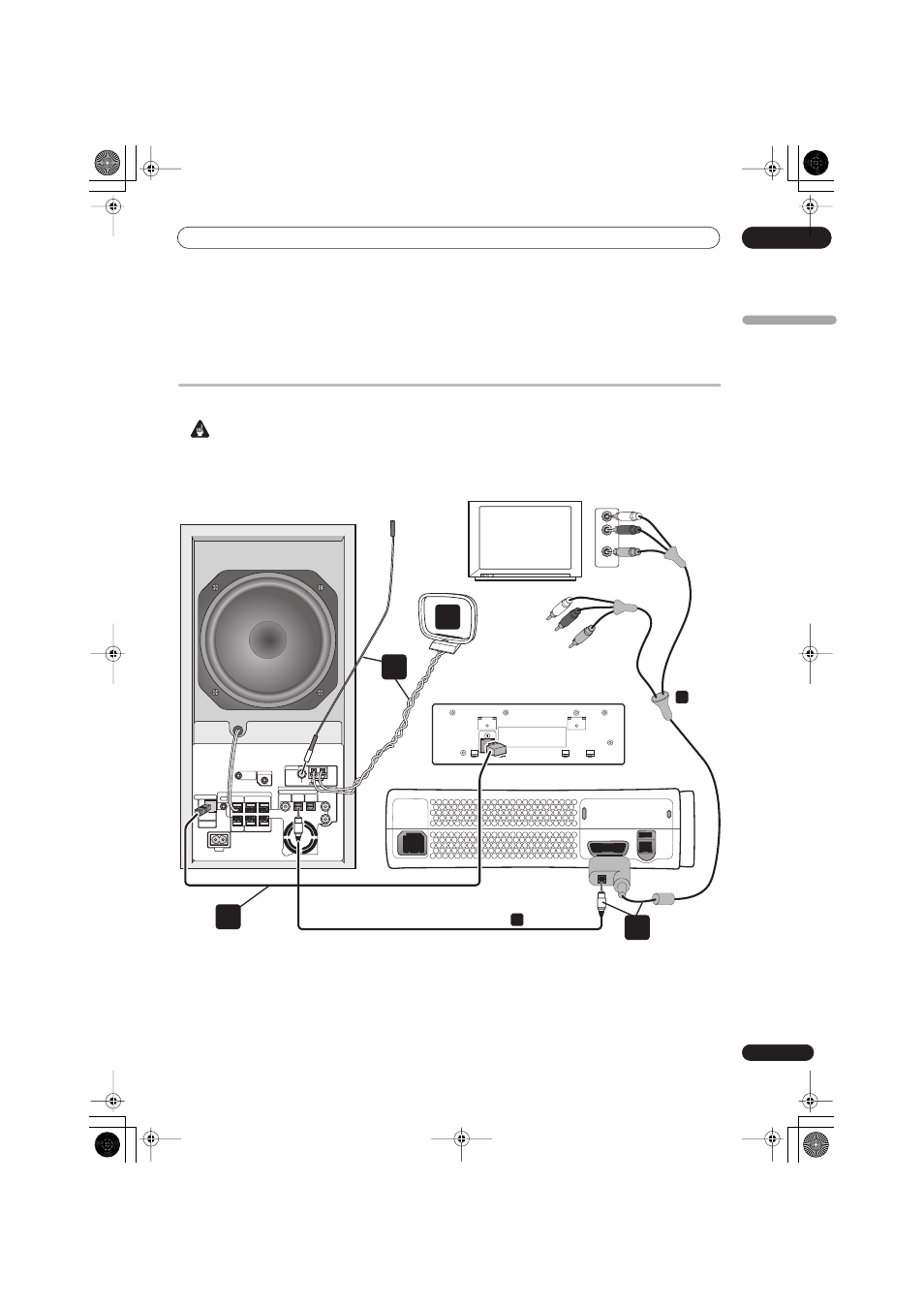

Basic connections
Important
• When connecting this system or changing connections, be sure to switch power off and disconnect the power
cord from the wall socket.
After completing all connections, connect the power cord to the wall socket.
VIDEO IN
AUDIO IN
SPEAKERS XBOX 360
(OPTICAL) SUB WOOFER
CENTER
SURROUND DVD/DVR
(COAXIAL)
DIGITAL AUDIO INPUT
ANTENNA
FM
UNBAL AM LOOP ANTENNA 75 Ω
ANALOG DIGITAL (OPTICAL) R L
R
L
FRONT R L
CONTROL
OUT
CONTROL IN MCACC SETUP MIC
SYSTEM CONNECTOR
AC IN
USE ONLY WITH DISPLAY UNIT
AM loop antenna
Display unit
Receiver subwoofer
3
Display cable
2
FM antenna
Audio/video output
(red, white, yellow plugs)
Output for component video
(red, blue, green plugs)
4
Xbox360
Optical cable
HD AV cable
1
a
b
