Confirming the Mode
Adjusting the RINGER Volume
Adjust the RINGER volume selector lever (at the bottom of the unit) to
the desired setting. ( – LOW, – MIDDLE, – HIGH)
[Default: MIDDLE]
You can confirm the current mode by the position of the Mode switch
lever (at the bottom of the unit). [Default: NORMAL]
PAUSE: Used to insert a pause when
storing a telephone number.
AUTO: Used for Station Speed dialling.
PROGRAM: Used to enter the
programming mode.
MESSAGE: Used to call back the party who left the message
waiting indication.
Handset Volume Control Buttons: Used to adjust the handset volume.
One-touch Buttons (M1-M5): Used to
access a feature or a
s a speed
dialling button.
FLASH/RECALL: Used to sen d a recall signal in ord er to access a
PBX feature (eg., Hold, Transfer, or Three-party Conference).
REDIAL: Used to redial the last dialled number.
8
7
6
5
4
3
2
1
PBX mode NORMAL mode
Connecting a Communication Device
Telephone Card: Has two sides (NORMAL mode, PBX mode).
DATA PORT
To connect a communication device such as a computer modem
to the telephone line, please use the DATA PORT (at the right
side of the unit). RJ11 modul
ar jack.
PBX Mode NORMAL Mode
Message/Ringer Lamp: Flashes when you receive a call or when
someone has left you a message.
One-touch Buttons
(1-
8): Used as preset
feature buttons
set at the Panasonic
KX series Business
Telephone System; you
do not need to program
at your extension.
The KX-T7710 has two modes, NORMAL Mode and Panasonic PBX Mode*.
Please use the corresponding side of the Telephone Card depending on the mode.
*The PBX Mode may not be available depending on the mode l of the Panasonic KX series Business
Telephone Systems to which you are connected.
For more detail, please consult your dealer.

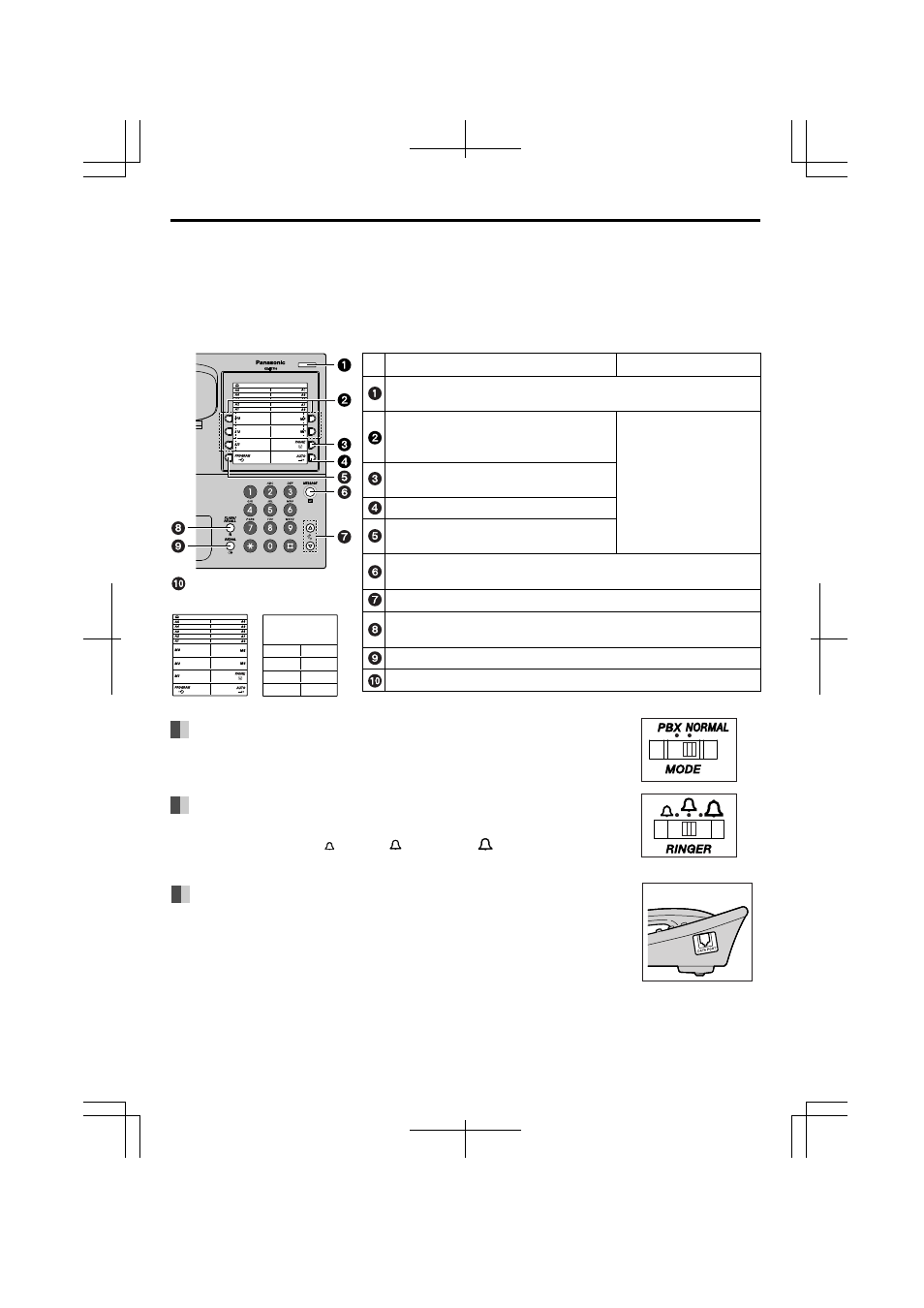

Location of Controls
– 5 –
