Poulan Pro XT824ES SNOW THROWER - Manual (Page 33)

33
REPAIR PARTS

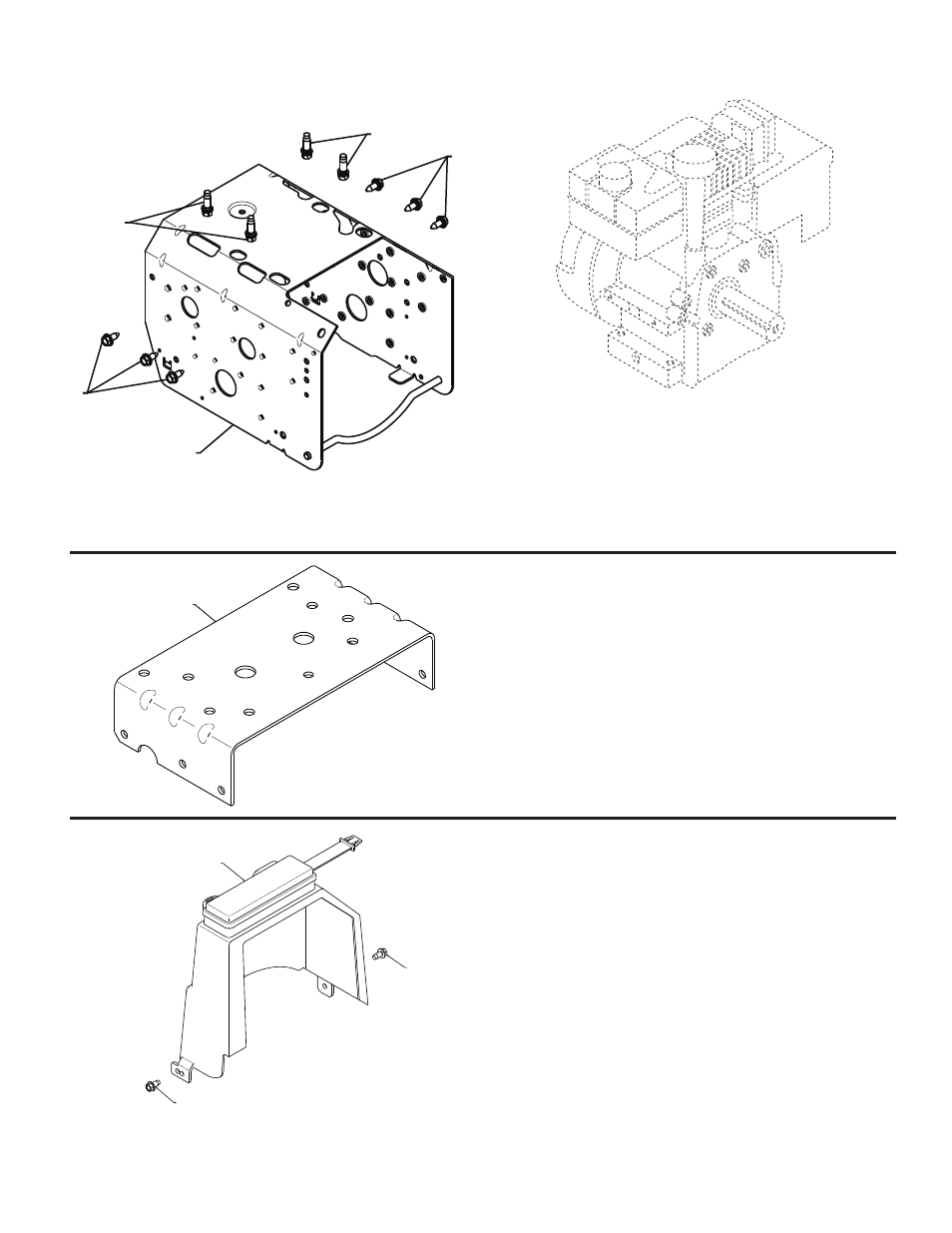

SNOW THROWER - - MODEL NO. XT824ES (96192003300)
CHASSIS / ENGINE / PULLEYS
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
2
3
3
01.00.034-A
- - - - - - - - B&S ENGINE MODEL 12A114-
1354-E8
1 418694X505 FRAME
2 150406 BOLT 3/8-16
3 428867 SCREW 5/16-18 X .750
1
01.01.003-A
1 423185X505 ENGINE MOUNTING PLATE
1
2
2
01.21.017-A
1 192213 COVER ASSEMBLY
2 17490408 SCREW 1/4-20 X .50
