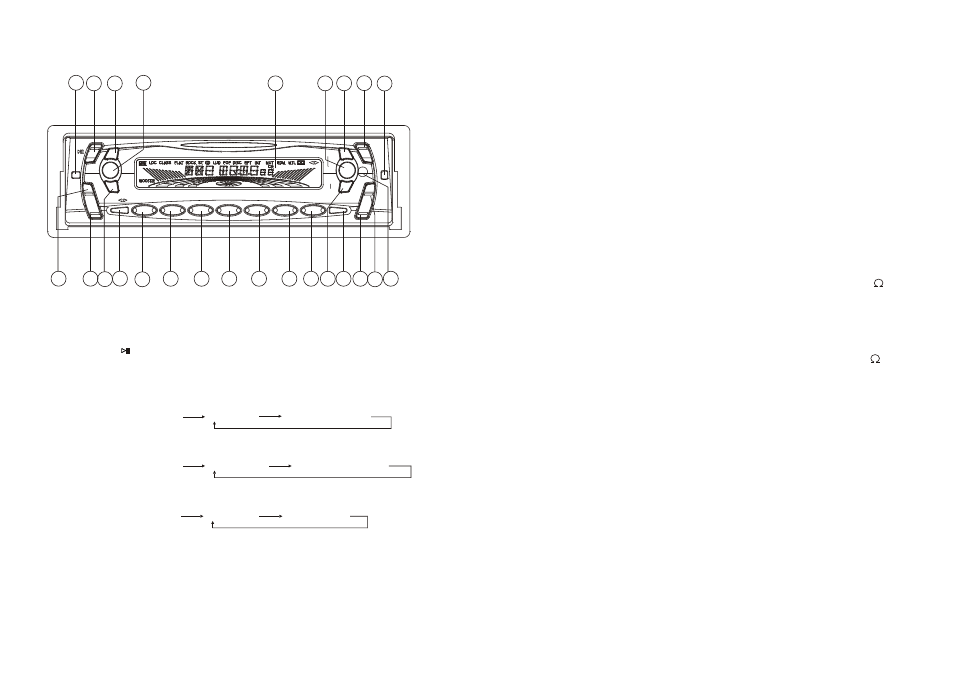

LOCATION AND FUNCTION OF CONTROLS
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 2324 25
1. RELEASE BUTTON
Press it to flip the panel away from the unit, then you can take only the
panel away.
CD - CH
MU
DSP
CD
TA
-
CONTROL
+
SEL
AUDIO FULL LOGIC CASSETTE/RECEIVER/CD-R/W PLAYBACK
SCN 2
PAUSE
RDM 1
MTL
RPT 3 PWR
-
4
TUNE
FF
SEEK
REW
TRACK
HIGH POWER 35WX4
DISC +
5 6 AMS
DN
APS
UP
BD
ST
LO
WOOFER LUD
2. CD/CD-CH( )BUTTON
Press it to switch from radio or tape mode to CD player or CD changer
mode.
1). When a disc is loaded in the disc compartment and the CD changer
is not connected, the mode changes like this:
Radio/Tape CD player CD player pause
2). When a disc is not loaded in the CD player and the CD changer is
connected, the mode changes like this:
Radio/Tape CD changer CD changer pause
3). When a disc is loaded in the CD player and the CD changer is
connected, the mode changes like this:
Radio/Tape CD player CD changer
3.4.12. VOLUME MODE SELECTING AND LEVEL UP OR DOWN BUTTONS
Press SEL button to select the audio mode such as volume, bass, treble,
balance and fader. Press the + or - button to adjust the sound level of
them.
REL OPEN
SPECIFICATION
GENERAL
Power Supply The Main Unit.................DC 13.8 Volts. Negative Ground
Maximum Output Power........................................................4 x 35W
Unit Dimension.............................................178(W) x 167(D) x 50(H)
FM TUNER SECTION
Frequency Range..........................................87.5MHz - 108MHz(USA)
Usable Sensitivity.......................................................................10dB
Frequency Response(+/- 3dB)......................................50Hz - 12.5KHz
I.F. Rejection.............................................................................80dB
Image Rejection.........................................................................65dB
Signal-to-Noise Ratio..................................................................60dB
Selectivity.................................................................................65dB
Stereo Separation.....................................................................30dB
Capture Ratio.............................................................................2dB
Antenna Impedance....................................................................75
AM TUNER SECTION
Frequency Range..........................................530KHz - 1720KHz(USA)
Usable Sensitivity(S/N 20dB).....................................................20uV
I.F. Rejection.............................................................................70dB
Image Rejection........................................................................70dB
Antenna Impedance...................................................................75
TAPE SECTION
Wow&Flutter............................................................................0.1%
S/N Ratio(Normal)....................................................................52dB
Separation................................................................................40dB
Frequency response.......................................................50Hz - 12KHz
CD SECTION
Disc size.......................................................................................5"
Channels...................................................................2-channel stereo
Sampling frequency...............................................................44.1KHz
D/A converter...................................................................Twin. 1- bit
Pickup...........................................Optical 3-beam semiconductor laser
Output filter.............................................................................Active
Frequency response........................................................5Hz - 20KHz
Total harmonic distortion.................................................0.3%(1 Khz)
Dynamic range..........................................................................60dB
Signal-to-noise ratio...................................................................60dB
Wow and flutter..............................................Below measurable limits
Channel separation(1 KHz).........................................................60dB
