107C Product Information
• Power supply
100-240 VAC, 60-50Hz
(Please refer to rating label)
• Temperature (operating)
0° to 40°C / 32° to 104°F
• Temperature (storage)
-25° to +65°C / -13° to +149°F
• Relative humidity(storage)
5% to 95%
* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300
°
, full white pattern.
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Pin Assignment

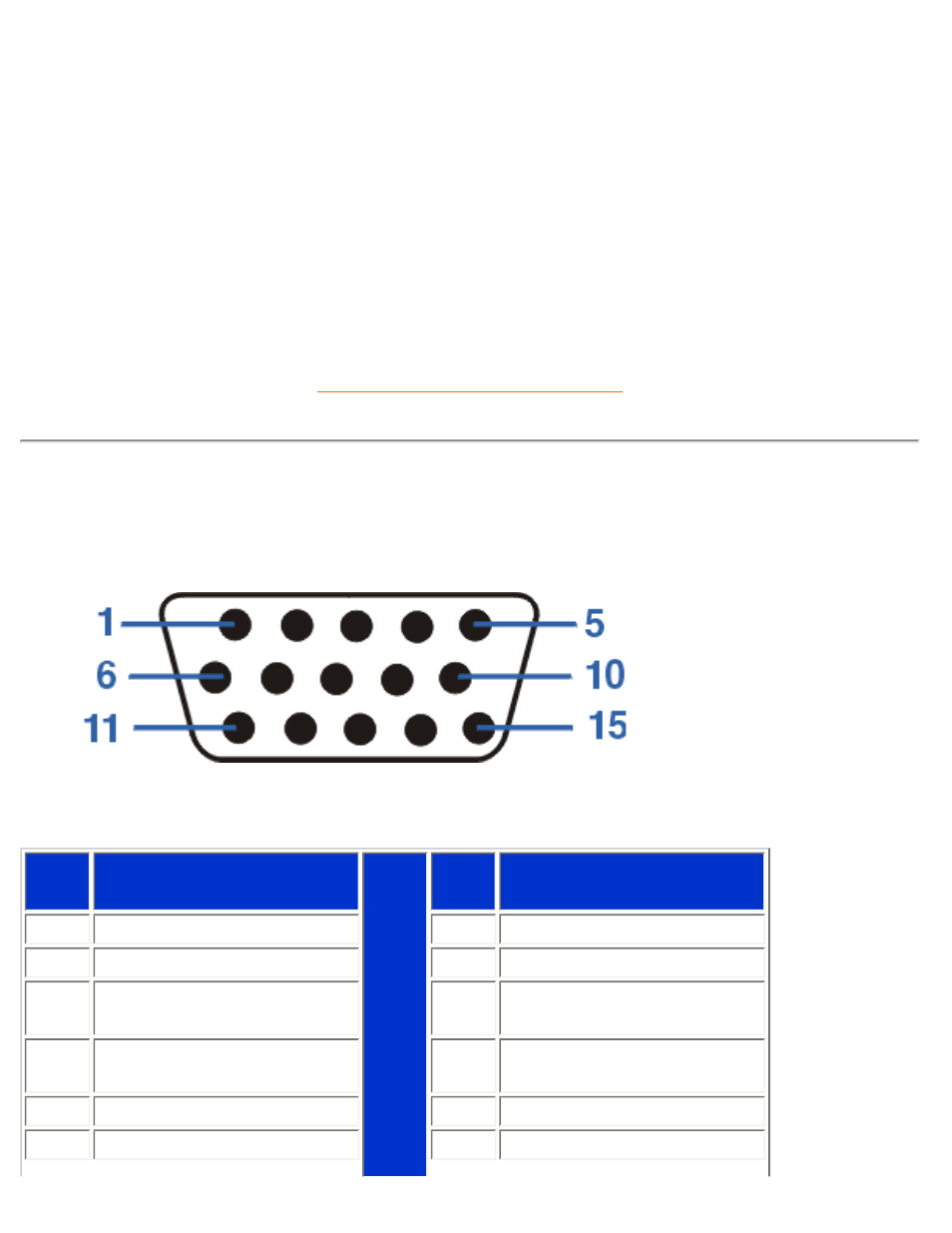

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Pin
No.
Assignment
Pin
No.
Assignment
1
Red video input
9
+5V DDC supply
2
Green video input
10
Logic ground
3
Blue video input
11
Identical output - connected
to pin 10
4
Identical output - connected
to pin 10
12
Serial data line (SDA)
5
Ground
13
H. Sync / H+V
6
Red video ground
14
V. Sync (VCLK for DDC)
