Connecting Up 02
15
En

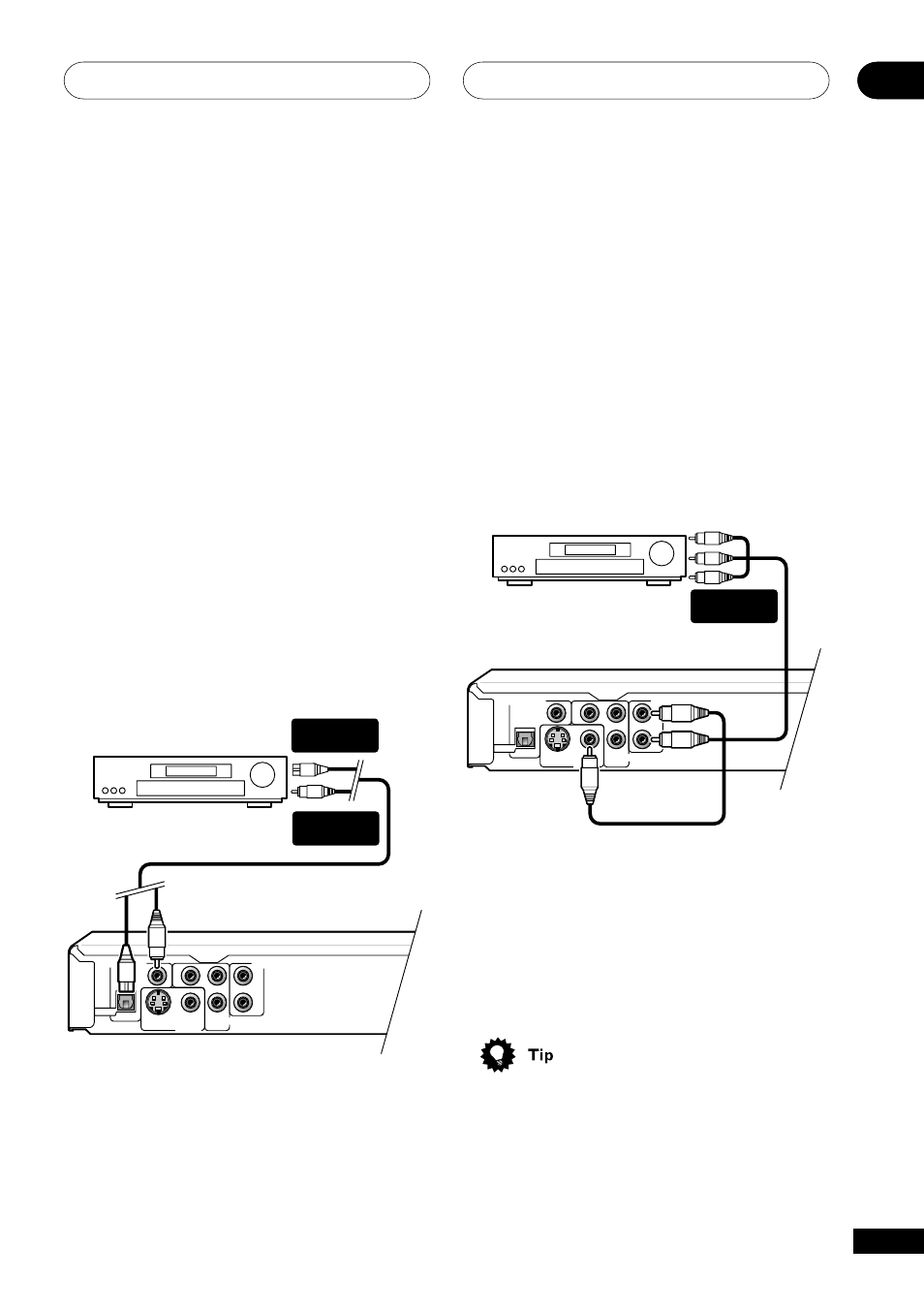

Connecting to an AV
receiver
To enjoy multichannel surround sound you
need to connect this player to an AV receiver
using a digital output. There are both coaxial
and optical digital jacks; use whichever is
convenient.
In addition to a digital connection, we
recommend also connecting using the
stereo analog connection.
You’ll probably also want to connect a video
output to your AV receiver. You can use any
of the video outputs available on this player
(the illustration shows a standard (compos-
ite) connection).
1 Connect one of DIGITAL OUT jacks on
this player to a digital input on your AV
receiver.
DIGITAL AUDIO OUT
S
L
R
P R
P B Y
COAXIAL
OPTICAL
COMPONENT VIDEO OUT
AUDIO OUT
VIDEO OUT
AV receiver
DIGITAL IN
OPTICAL
DIGITAL IN
COAXIAL
This enables you to listen to multichannel
surround sound.
For an optical connection, use an optical
cable (not supplied) to connect the OPTICAL
DIGITAL OUT jack to an optical input on your
AV receiver.
For a coaxial connection, use a coaxial cable
(similar to the supplied video cable) to
connect the COAXIAL DIGITAL OUT jack to a
coaxial input on your AV receiver.
2 Connect the analog AUDIO OUT L/R
and VIDEO OUTPUT jacks on this player
to a set of analog audio and video inputs
on your AV receiver.
DIGITAL AUDIO OUT
S
L
R
P R
P B Y
COAXIAL
OPTICAL
COMPONENT VIDEO OUT
AUDIO OUT
VIDEO OUT
AV receiver AUDIO/
VIDEO INPUT
The diagram shows standard video connec-
tions, but you can alternatively use the S-
Video or component video connections if
they’re available.
3 Connect the AV receiver’s video
output to a video input on your TV.
• You usually have to connect the same
kind of video cable between your DVD
player and AV receiver, and between
your AV receiver and TV.
