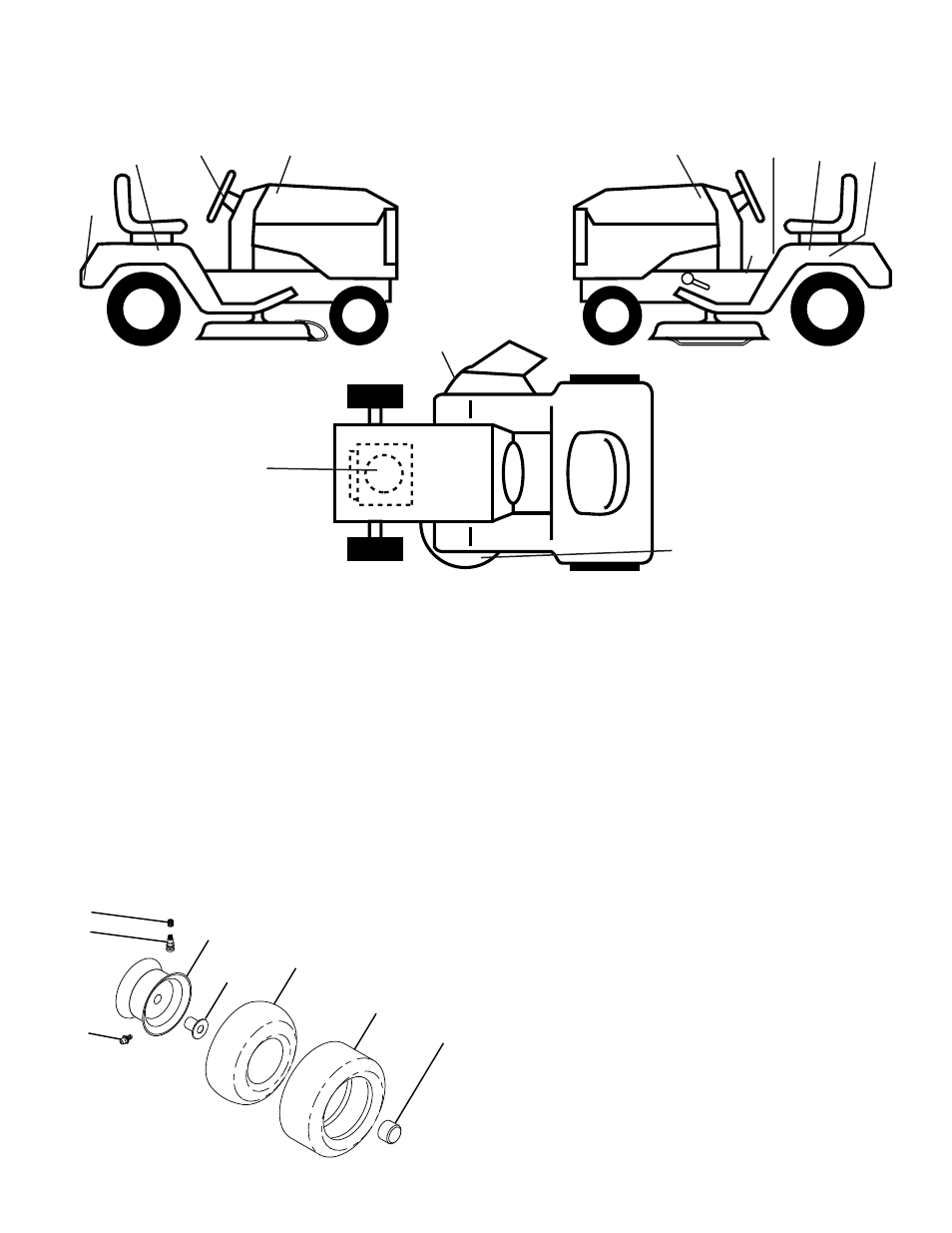

REPAIR PARTS
TRACTOR - - MODEL NUMBER PC1538B, PRODUCT NUMBER 954 56 79-70
DECALS
KEY
PART
NO.
NO.
DESCRIPTION
3
180972
Decal, Engine HP
4
170563
Decal Warning
6
157140
Decal, Fender Danger English
7
158168
Decal Ins Str Wh
8
172200
Decal, Fender 5 Sp.
9
158166
Decal Fender
12
181552
Decal, Hood RH
14
181553
Decal, Hood LH
15
145005
Decal, Caution, Battery
16
156369
Decal, Oper Inst.
17
136832
Decal, V-Belt Sch.
- -
138311
Decal, Handle Lft Height Adj.
- -
183313
Manual, Owner's English
- -
183314
Manual, Owner's French
Available accessories not included with mower:
- -
C38
Grass Catcher
- -
MK38
Mulch Kit w/Blades
- -
LSB42
42" Snow Blower
- -
LC05
Wheel Weights
- -
LBD48
48" Snow Blade
- -
CH11
Tire Chains
KEY
PART
NO.
NO.
DESCRIPTION
1
59192
Cap, Tire valve
2
65139
Stem, Valve
3
106222X
Tire, Front
4
59904
Tube, Front (Service item only)
5
106732X427 Rim assembly, 6"front
6
278H
Fitting, Grease (Front wheel only)
7
9040H
Bearing, Flange (Front wheel only)
8
106108X427 Rim assembly, 8" rear
9
124635X
Tire, Rear
10
7152J
Tube, Rear (Service item only)
11
104757X428 Cap, Hub Axle
- -
144334
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
KEY
PART
NO.
NO.
DESCRIPTION
WHEELS & TIRES
7
12
17
14
8
16
6
15
3
4
9
8
