REPAIR PARTS

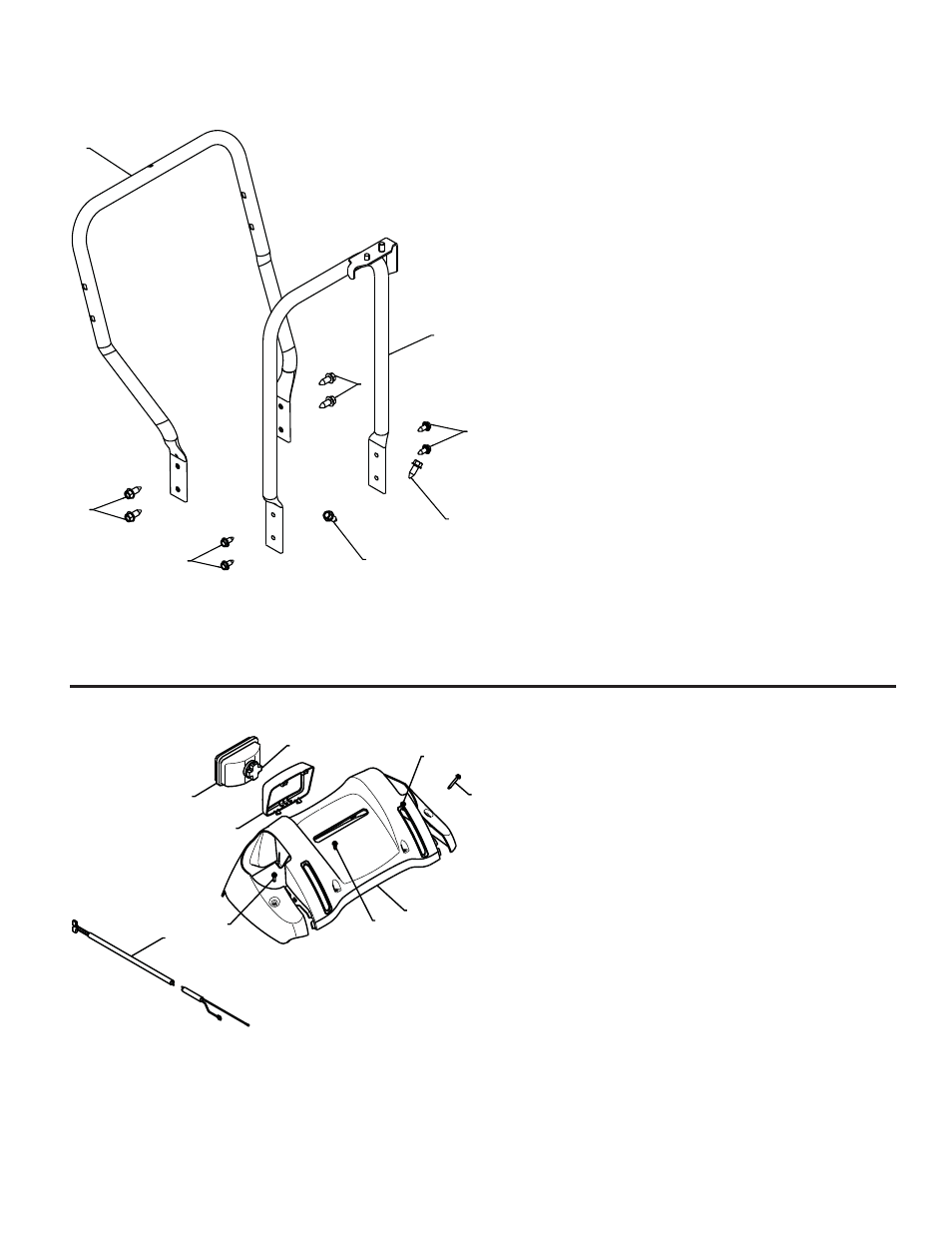

SNOW THROWER - MODEL 961940007 (96194000701)
HANDLES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1
2
3
4
5
4
5
7
6
01.10.007-B
01.05.002-B
1
2
4
4
4
4
3
3
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 419797X479 LOWER HANDLE
2 405784X479 PIVOT SUPPORT WELDMENT
3 150078 SCREW 5/16−18 X .750
4 17000616 SCREW 3/8−16 X 1.00
1 182906 CONSOLE PANEL
2 178668 HEADLIGHT BEZEL
3 180927 FLOOD HEADLIGHT
4 184471 SHOULDER SCREW 10−24 X .625
5 175262 SCREW 10−24 X 1.25
6 178770 WIRE HARNESS
7 183784 BULB
