7
EXTENSION CORDS
Use proper extension cords. Make sure
your extension cord is in good condition and is a 3-wire
extension cord which has a 3-prong grounding type plug
and matching receptacle which will accept the
machine’s plug. When using an extension cord, be sure
to use one heavy enough to carry the current of the
machine. An undersized cord will cause a drop in line
voltage, resulting in loss of power and overheating. Fig.
D shows the correct gauge to use depending on the
cord length. If in doubt, use the next heavier gauge. The
smaller the gauge number, the heavier the cord.
Fig. D
MINIMUM GAUGE EXTENSION CORD
RECOMMENDED SIZES FOR USE WITH STATIONARY ELECTRIC MACHINES
Ampere
Total Length
Gauge of
Rating
Volts
of Cord in Feet
Extension Cord
0-6
120
up to 25
18 AWG
0-6
120
25-50
16 AWG
0-6
120
50-100
16 AWG
0-6
120
100-150
14 AWG
6-10
120
up to 25
18 AWG
6-10
120
25-50
16 AWG
6-10
120
50-100
14 AWG
6-10
120
100-150
12 AWG
10-12
120
up to 25
16 AWG
10-12
120
25-50
16 AWG
10-12
120
50-100
14 AWG
10-12
120
100-150
12 AWG
12-16
120
up to 25
14 AWG
12-16
120
25-50
12 AWG
12-16
120
GREATER THAN 50 FEET NOT RECOMMENDED
FOREWORD
Porter-Cable Model 3700L is a high capacity, 10" compound laser miter saw designed to cut wood and non-ferrous
metals. This unit incorporates the latest technology TwinLaser™ line-of-cut indicator feature. It can crosscut 5-1/2" x
2-3/8" and 3-1/2" x 3-1/16", miter at 45° right 3-3/8" x 3-1/16", miter at 45° left 2-5/8" x 3-7/16", bevel at 45° left 5-1/2"
x 1-9/16" and 3-5/8" x 1-7/8", and compound 45° x 45°, 3-15/16" x 1-9/16" and 2-7/16" x 2-13/64". It has positive miter
stops at 0°, 15°, 22.5°, 30°, and 45° both left and right, and bevel stops at 0° and 45° left.
NOTICE: The photo on the manual cover illustrates the current production model. All other illustrations
contained in the manual are representative only and may not depict the actual color, labeling, or accessories,
and are intended to illustrate technique only.

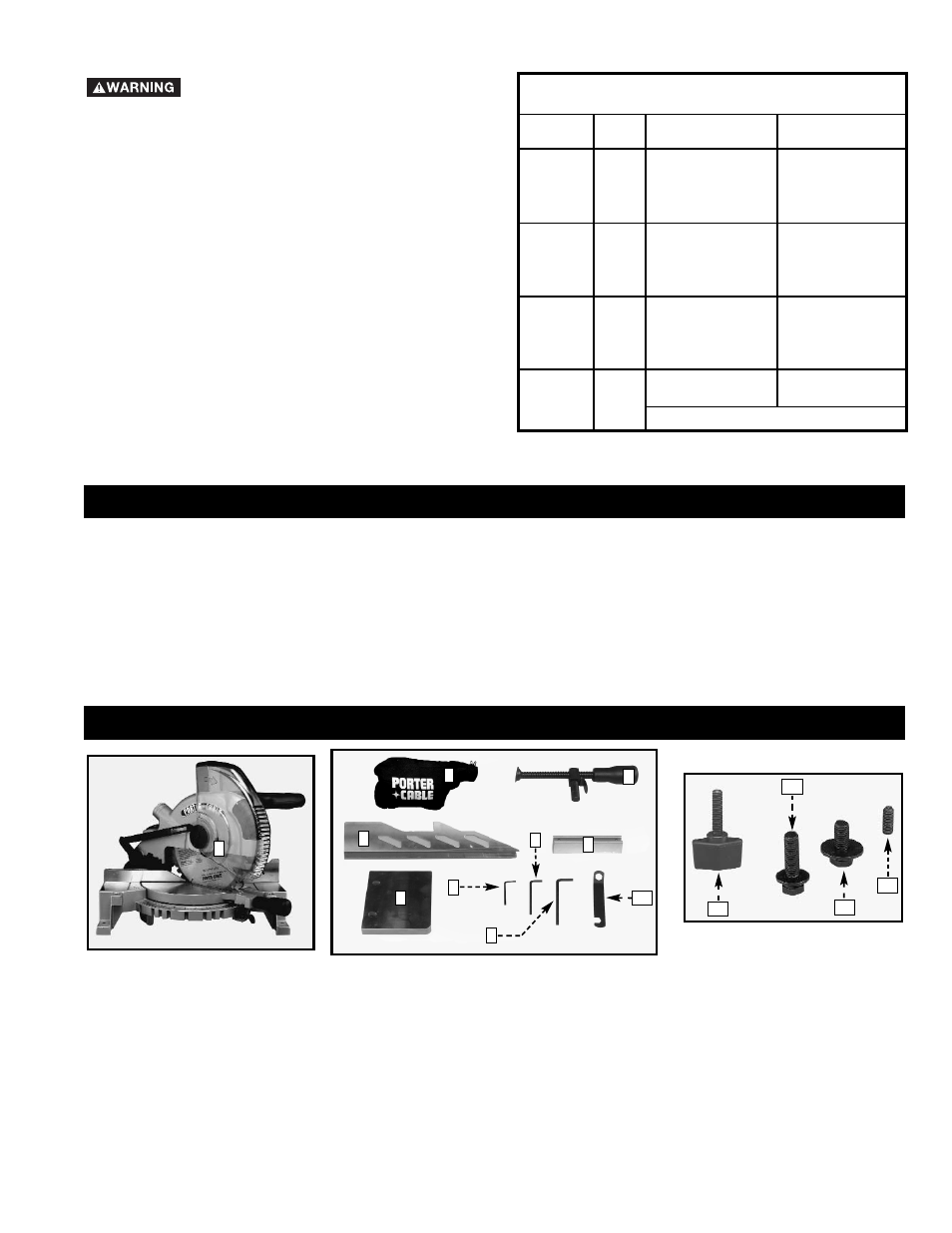

FUNCTIONAL DESCRIPTION
CARTON CONTENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
1.
Miter Saw
2.
Dust bag
3.
Fence slide
4.
Clamp
5.
Fence slide support
6.
Extension table
7.
3mm hex wrench
8.
1/8" Hex Wrench
9.
5mm Hex Wrench
10. Arbor and Fence Wrench
11. Fence Clamping Screw
12. M8 x 1.25 x 30 Hex Head
Screw
13. M8 x 1.25 x 20 Hex Head
Screw
14. M6 x 1.0 x 16 Set Screw
14
