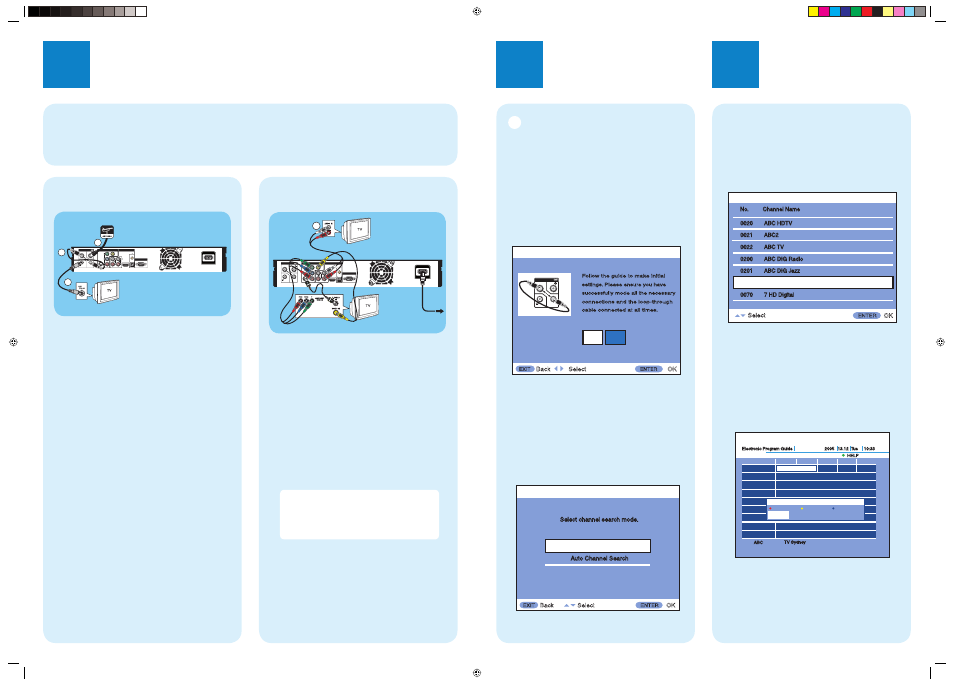

1 Connect 2 Set up
A You can choose one of the options to make
your video connection.
Option 1
– Use the composite video cable to connect the Video
Output-CVBS socket on the recorder to the video input
socket on the TV
Option 2
– Use the S-Video cable to connect the S-Video socket on the
recorder to the S-Video input socket on the TV
Option 3
– Use the component video cables to connect the Video
Output-COMPONENT-Y P
B P R sockets on the recorder to
the corresponding component video input sockets on the TV
Note If you have a HDMI TV, connect the
HDMI cable from the recorder to your HDMI
TV set. See the chapter “Basic Connections –
Connecting to a HDMI compatible TV” in the
accompanying user manual.
B Use the audio cable to connect the Audio
Output- L/R 1 or 2 sockets to the audio input
sockets of the connected device.
C Connect the power cable from the recorder to
an AC power outlet.
For additional connection diagrams, see
the accompanying User Manual.
A Quick Setup
Use the recorder’s remote control and follow the
on-screen instructions to complete the setup.
A Press 2 to turn on the recorder.
B Switch on the TV set and the Quick Setup
menu is displayed.
C In case, you don’t see the recorder’s Quick
Setup menu, press MENU, then select {Quick
Setup} and press OK to enter the setup screen.
Quick Setup
YES NO
ENTER EXIT Back Select OK
Follow the guide to make initial
settings. Please ensure you have
successfully mode all the necessary
connections and the loop-through
cable connected at all times.
DIGITAL ANTENNA
RF IN RF IN
RF OUT TO TV
LOOP THR OUGH
D You can follow the guide which will help you
throughout the process.
E Select {YES}, and press OK.
F When the Time Zone screen appears, select
your time zone and press OK.
G Select the channel search mode and press OK.
H If you select { Quick Channel Search } select
your city and press OK.
Quick Setup
Select channel search mode.
Quick Channel Search
Auto Channel Search
ENTER EXIT Back Select OK
I The Quick Setup is completed now, press OK
to close the menu.
B Connecting the Video/Audio Cables
A Unplug the antenna cable that is currently
connected to your TV.
B Connect the antenna cable into the Digital
Antenna Input socket on the recorder.
C Connect the To TV Antenna socket with RF
antenna cable to the Antenna In Socket on the
TV.
Helpful Hints :
Use the best quality AV connectors (CVBS/S-Video/
Component Video/HDMI), not the RF connections from
this recorder to the television, to achieve the best video
quality.
D Loop through between RF IN and RF OUT
with supplied antenna interconnected cable.
A Connecting Recorder and TV
Before connecting
Select the most suitable connection (Options in B ) based on your home set up. Refer to the accompanying User
Manual for other possible connections.
Watching TV
A Watching TV from Channel List
A Press CH List and select the channel you want
to watch by using cursor S T keys.
No. Channel Name
Program List
Select
0021
0022
0200
0201
0007
0070
0020
ABC2
ABC TV
ABC DIG Radio
ABC DIG Jazz
7 Digital
7 HD Digital
ABC HDTV
ENTER OK
B Press OK to watch your selection channel
B Watching TV from GUIDE
(Electronic Programme GUIDE)
A Press GUIDE to display the seven channel
programme list covering a two hour period.
B Press cursor S T keys to select a programme
and press OK.
L
R
DIGITAL ANTENNA
RS-232
AUDIO OUTPUT VIDEO OUTPUT COMPONENT
S-VIDEO
CVBS PCM / DOLBY DIGITAL COAXIAL Manufactured under license from
Dobly Laboratories. “Dolby” and
the double-D symbol are
trademarks of Dolby Laboratories.
OPTICAL
ANALOG
HDMI
Y
L
R
Pb
Pr 1 2
RF IN RF IN
RF OUT TO TV
LOOP TH ROUGH
2
4
3
L
R
DIGITAL ANTENNA
RS-232
AUDIO OUTPUT VIDEO OUTPUT
COMPONENT
S-VIDEO
CVBS PCM / DOLBY DIGITAL
COAXIAL Manufactured under license from
Dobly Laboratories. “Dolby” and
the double-D symbol are
trademarks of Dolby Laboratories.
OPTICAL
ANALOG
HDMI
Y
L
R
Pb
Pr 1 2
RF IN RF IN
RF OUT TO TV
LOOP TH ROUGH
2
to mains
Option 2
Option 3
Option 1
