Chapter 2 Installing the LCD TV
Use an audio cable to connect the external A/V device’s audio output jacks to the LCD
TV’s audio inputs. Use a S-Video cable to connect the external A/V device’s S-Video
output jack to the LCD TV’s S-Video IN input jack.
Connect all AC power sources, before turning on the power switch of the LCD TV or
other connected equipment.
Press the button on the remote to turn on the LCD TV.
To view the A/V device’s with component input, press the INPUT button on the remote to
select VIDEO2.

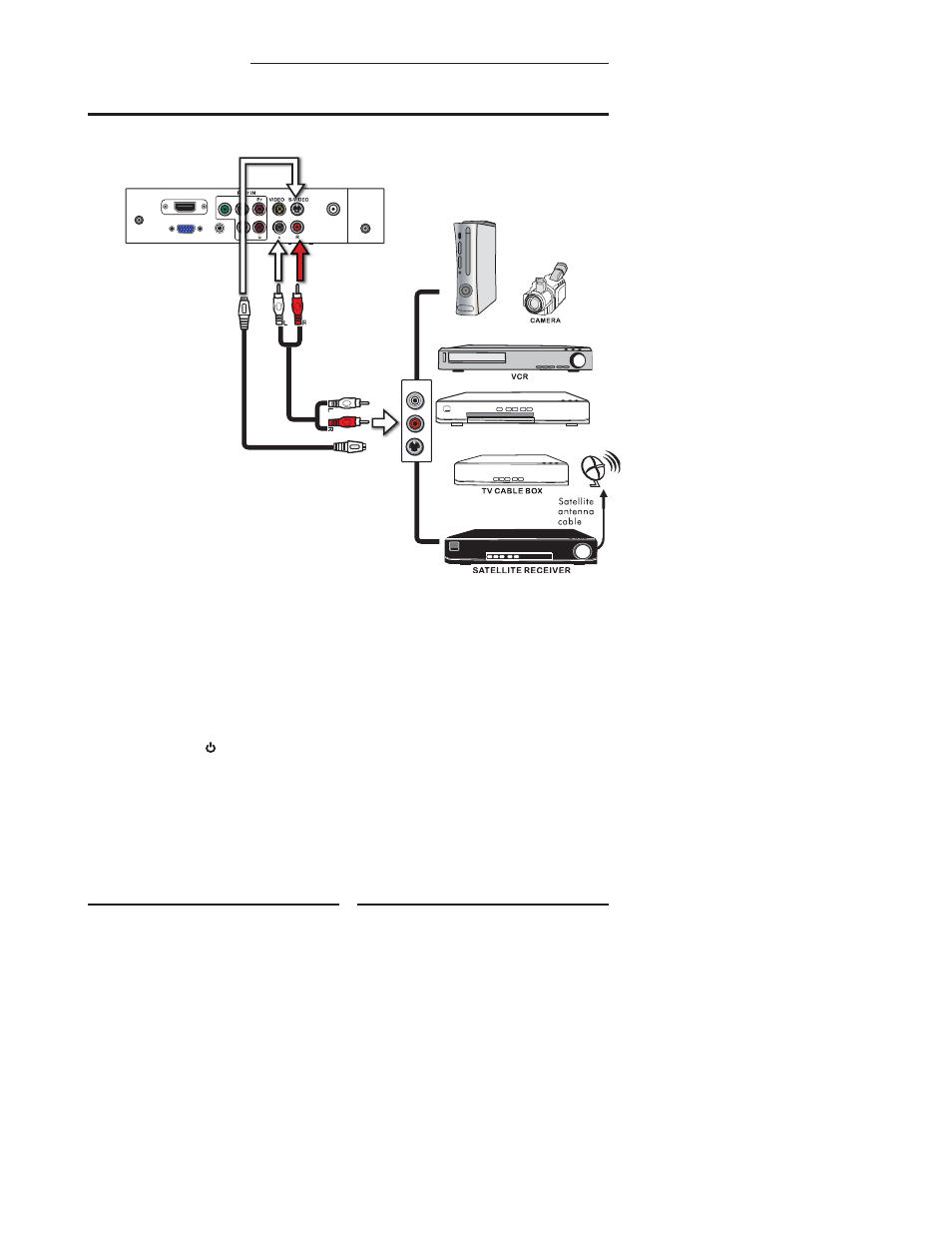

Connecting an A/V Device with S-Video Connector
HDMI IN
R VGA IN VGA LINE IN
VIDEO S-VIDEO COAXIAL
YPbPr IN
VHF/UHF IN
Y Pb Pr
Rear of TV
AUDIO Cable
S-VIDEO Cable
GAME CONSOLE
D V D PLA YER
L
R
S-VIDEO OUT
