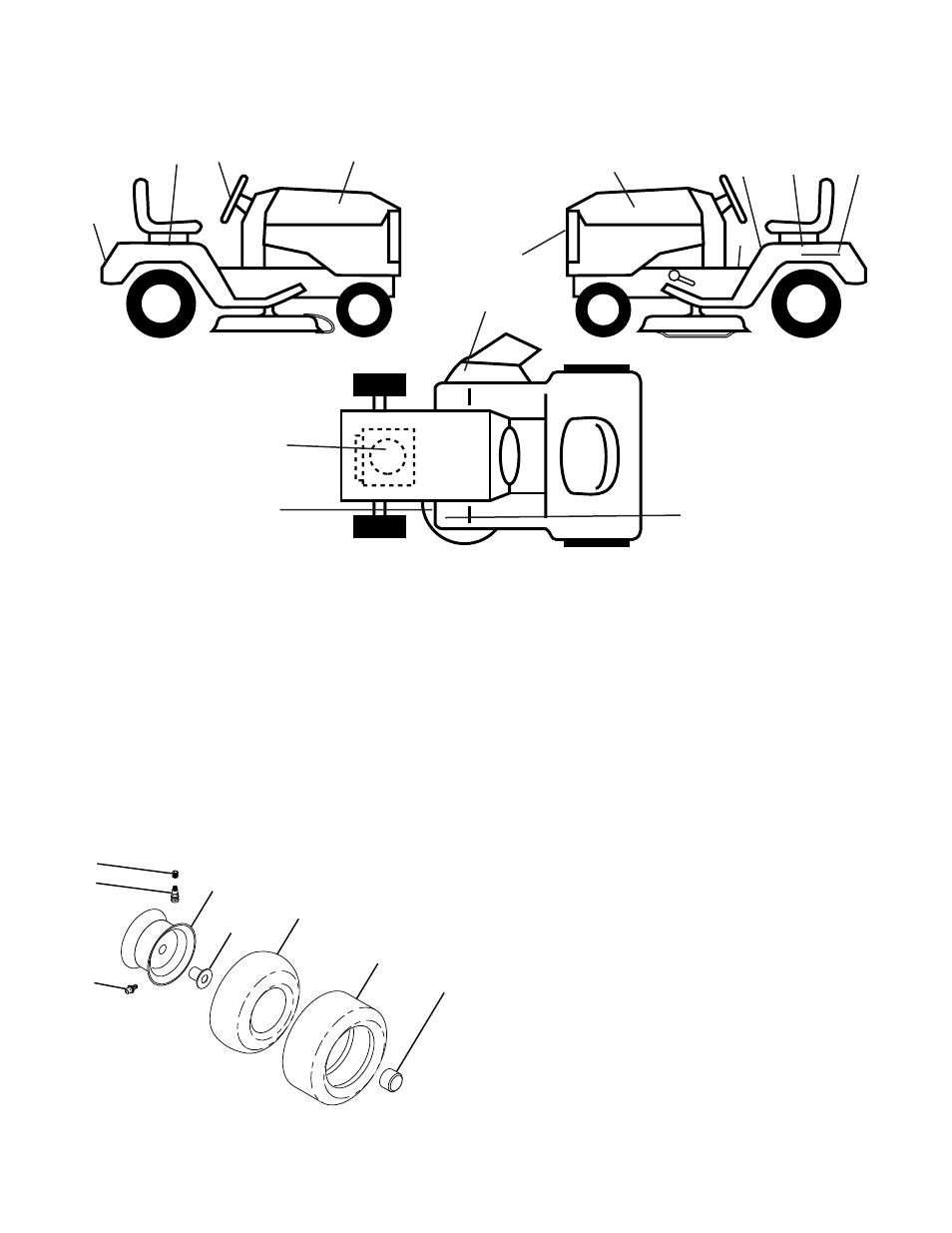

REPAIR PARTS
TRACTOR - - MODEL NUMBER PPR1742STC
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
5,8
4,10
3,9
11
7
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
10
3
16
9
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X427 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X427 Rim Asm 8"rear Service
9 122082X Tire R Ts 20x10-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
8
20
14
5
1 157163 Decal Oper
2 168764 Decal Fender Side Lh
3 168705 Decal Hood LH
5 170856 Decal HP Engine
8 137259 Decal Warning Mult-Language
9 168649 Decal Fender Logo
10 157140 Decal Fender Danger E/F
11 168639 Decal Ins Strg Whl
12 168703 Decal Grille
1
2
15 11
12
17
14 160396 Decal V-Belt Schematic
15 168763 Decal Fender Side Rh
16 168704 Decal Hood Rh
17 101892X Decal Clutch/Brake
20 145005 Decal Bat Dan/Psn
- - 133671 Pad Footrest
- - 138311 Decal Handle Lft Height Adjust
- - 173282 Manual Owner's (English)
- - 173283 Manual Owner's (French)
