REPAIR PARTS
SNOW THROWER - MODEL PP11530ES (96192001903)

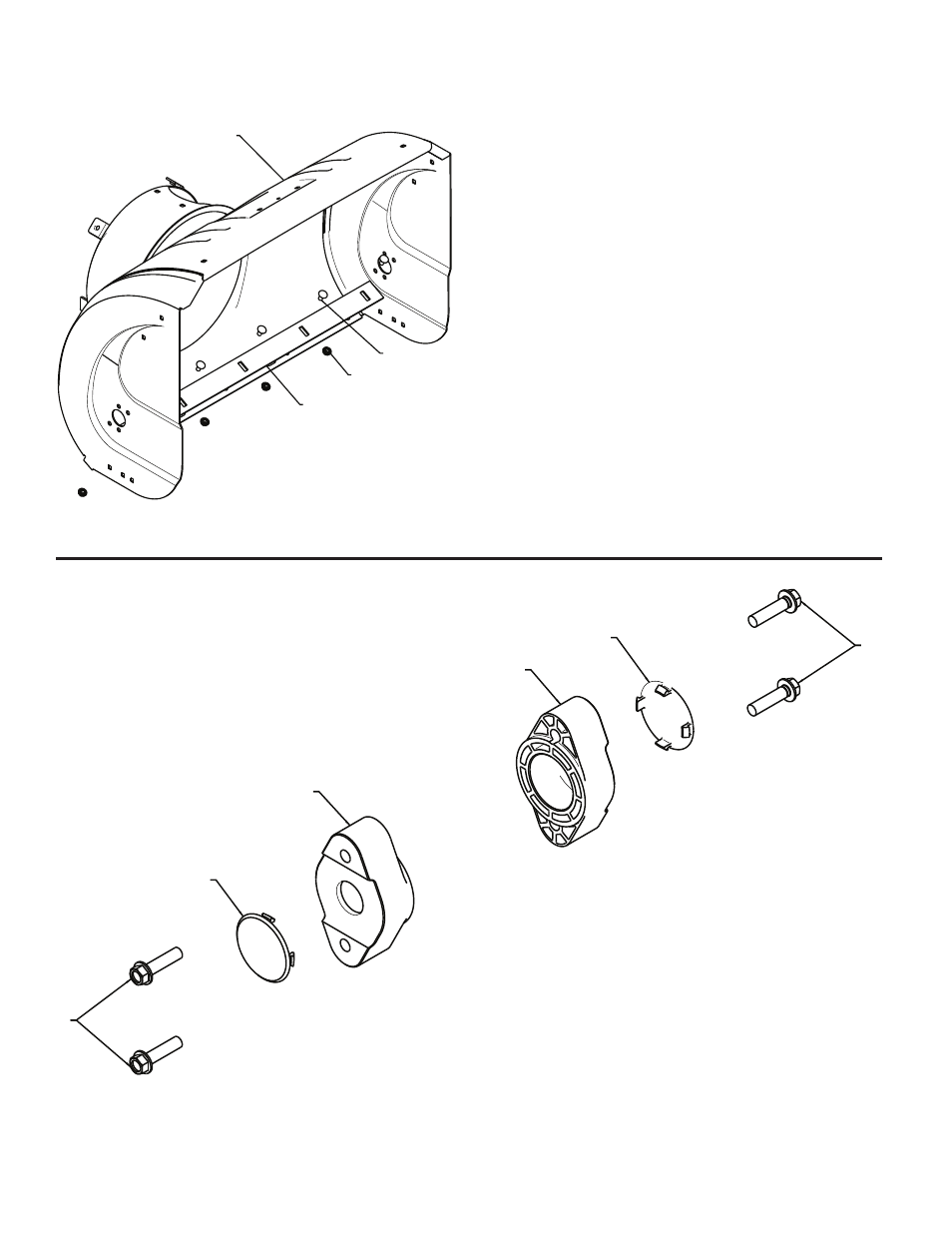

AUGER HOUSING / IMPELLER ASSEMBLY
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
3 (5x)
4 (5x)
01.07.003-A
1
404930X428 AUGER HOUSING
2
404933X479 SCRAPPER BAR
3
72270505
CARRIAGE BOLT 5/16−18 X .625
4
155377
NUT 5/16−18
KEY
PART
NO.
NO.
DESCRIPTION
KEY
PART
NO.
NO.
DESCRIPTION
1
1
2
3
2
3
01.07.024-B
1
420478
AUGER BEARING
2
411939
BEARING PLUG
3
179582
SCREW 5/16−18 X 1.00
