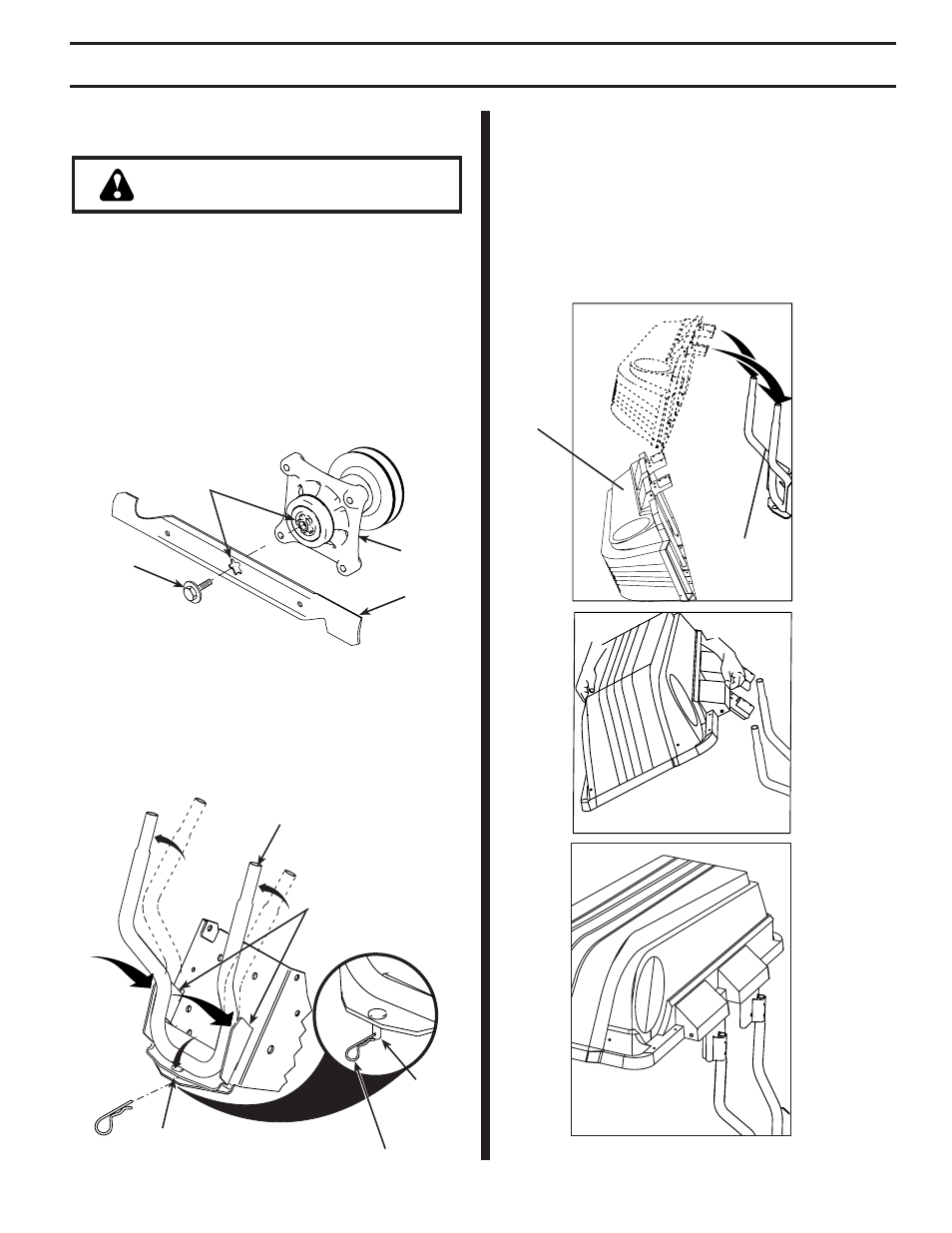

Assembly – Poulan GTB54A User Manual

Page 5

MOUNTING COVER ASSEMBLY TO

SUPPORT ASSEMBLY (See Fig. 3)

NOTE: For ease of assembly, you may wish to obtain the
as sis tance of another person for mounting coverassembly
to tractor.
1. Position cover assembly on ground behind tractor as

shown.

2. Lift and rotate cover to align cover brackets with support

assembly tubes.

3. Slide cover assembly down onto the support tubes.

FIG. 3

02532

COVER
ASSEMBLY

SUPPORT
ASSEMBLY

ASSEMBLY

02543

HANG SUPPORT ASSEMBLY ON
REAR DRAWBAR (See Fig. 2)

1. Slide fl anges of support assembly into drawbar slots

fi rst, then, pivot backwards inserting pin into drawbar
pin hole.

2. Be sure support assembly is seated properly, then

secure with retainer spring.

FIG. 2

INSERT
FLANGES
FIRST INTO
DRAWBAR
SLOTS

SUPPORT
ASSEMBLY

DRAWBAR SLOTS

RETAINER
SPRING

PIN

02051

051

INSTALL HIGH LIFT BAGGING BLADES
(See Fig. 1)

CAUTION: Blades are sharp. Protect
your hands with gloves and/or wrap
blade with heavy cloth.

NOTE: If you already have high lift bagging blades on your
mower, store the supplied blades in a safe place for future
use. Go on to step 2.
1. Raise mower to highest position to allow access to

blades.

2. Remove blade bolts by turning counterclockwise.
3. Install bagging blades supplied with stamped "THIS

SIDE UP" facing up towards mower, or, blades stamped
with "GRASS SIDE" facing down towards grass.

IMPORTANT: To ensure proper assembly, center hole in blade
must align with star pattern on mandrel assembly.

4. Install and tighten blade bolts securely (45-55 Ft. Lbs.

torque).

025

HIGH LIFT
BAGGING
BLADE

BLADE BOLT
(SPECIAL)

MANDREL
ASSEMBLY

FIG. 1

STAR
PATTERN

051

DRAWBAR
PIN HOLE
