Replacing Consumables
30
9
Take out the new retard roller module
in the optional “Roller Exchange Kit
(KV-SS017)”.
10
Pull the right side of the shaft in the
direction of the arrow and hold it there.
(
1)

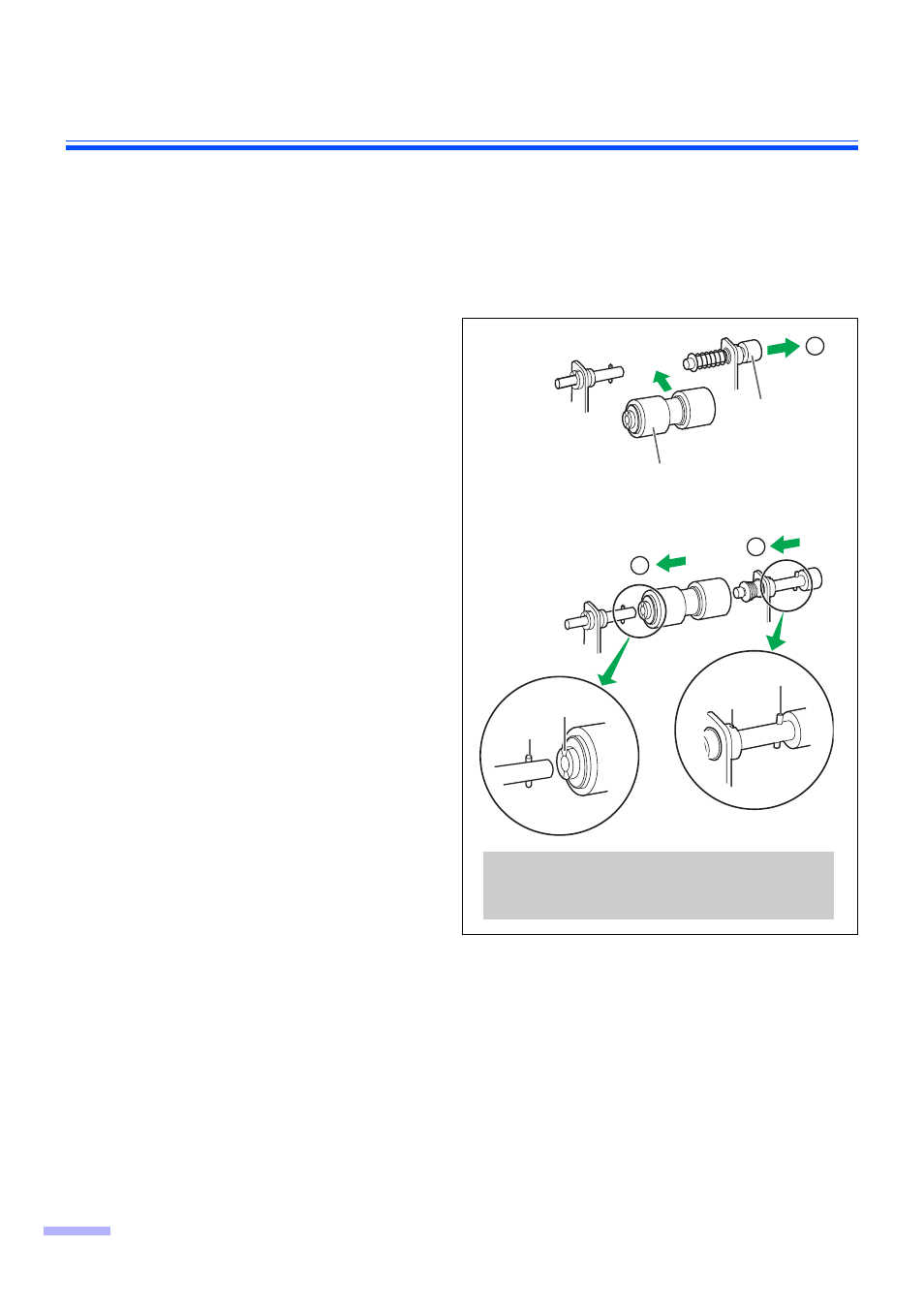

Attach the new retard roller module as
shown in the diagram on the right (
2)
and then return the right side of the
shaft in the direction of the arrow. (
3)
≥ Confirm if pin A and pin B are inserted in
their notches correctly.
≥ Attach the retard roller module so that the
notch A is on the left side.
2
3
1
Retard roller module
Shaft
Notch B
Pin A
Notch A
Pin B
When the pin is not inserted in the notch
properly, it may cause double feeding or a
paper jam.
