4
Instruction for Use
Important: You cannot damage your equipment by pressing a wrong button on
your remote control.
INTRODUCTION
The RP 420 is a remote control designed to replace all Philips Television remote
controls of 1980 and after. It also controls basic VCR functions for Philips VCR.
Keep this manual for future reference.

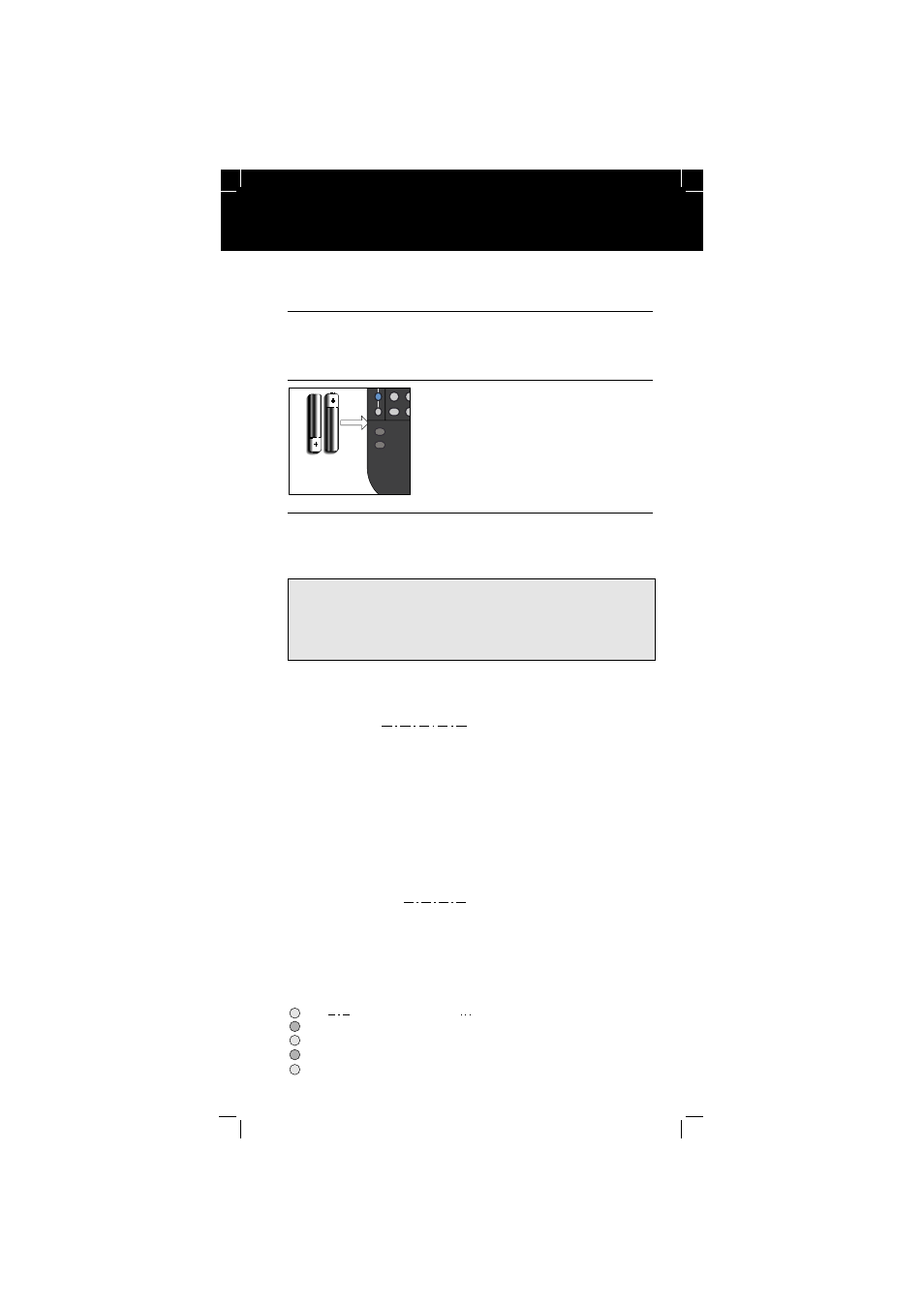

INSTALLING THE BATTERIES
• Insert the batteries according to the indications in
the battery compartment (rear of the remote).
• Replace the batteries when the transmission
distance becomes too short.
Note: After changing the batteries you may have
to setup the keys again. To avoid this, do not
touch the keys while changing the batteries.
CONTROLS
To operate: aim at your TV and press the button with the correct symbol. To acti-
vate one of the secondary functions, keep the sidebutton
1 pressed and press
the button with the correct symbol above. These secondary functions include
VCR functions and special TV functions.
PROGRAM and VOLUME CONTROLS
7 8
0 H
¥
B
A
B
_
Й
’
З
m
2 X 1.5 V
R03 / UM4 /AAA
Function
2- y - TV Stand-by
3- - P + - Program up/down
4Program selection
- 0-9 - Numeric selection keys
- / - 1 digit/2 digits
5- – E + - Volume up/down
6- s - Mute
Secondary function
with side button
1 pressed:
2- y - VCR Stand-by
3- - P + - VCR program up/down
4VCR Program selection
- 0-9 - Numeric selection keys
- / - 1 digit/2 digits
6- C/P - Channel/Program (TV)
MENU/VCR
7MENU CONTROLS
MENU
- Menu on /Menu off
# - Cursor up/ Menu +
) - Cursor right/ Menu +
( - Cursor Left /Menu -
$ - Cursor down /Menu -
With ( – or + ) pressed:
R - Red R - Brightness up/down
U - Green U - Colour up/down
≥ - Yellow ≥ - Treble up/down
¥ - Cyan ¥ - Bass up/down
B - White B - Balance right/left
With side button 1 pressed:
MENU
- Menu off
7VCR CONTROLS
With side button
1 pressed:
0 - VCR record
5- VCR rewind
6- VCR wind
9 - VCR stop
2 - VCR play
Important notes:
Not all TVs have all the features listed hereafter. Please check the instructions
for use of your TV to determine which functions your TV has.
The keys of the RP 420 work like the keys of your original remote control even
though the symbol on the keys may be slightly different.
