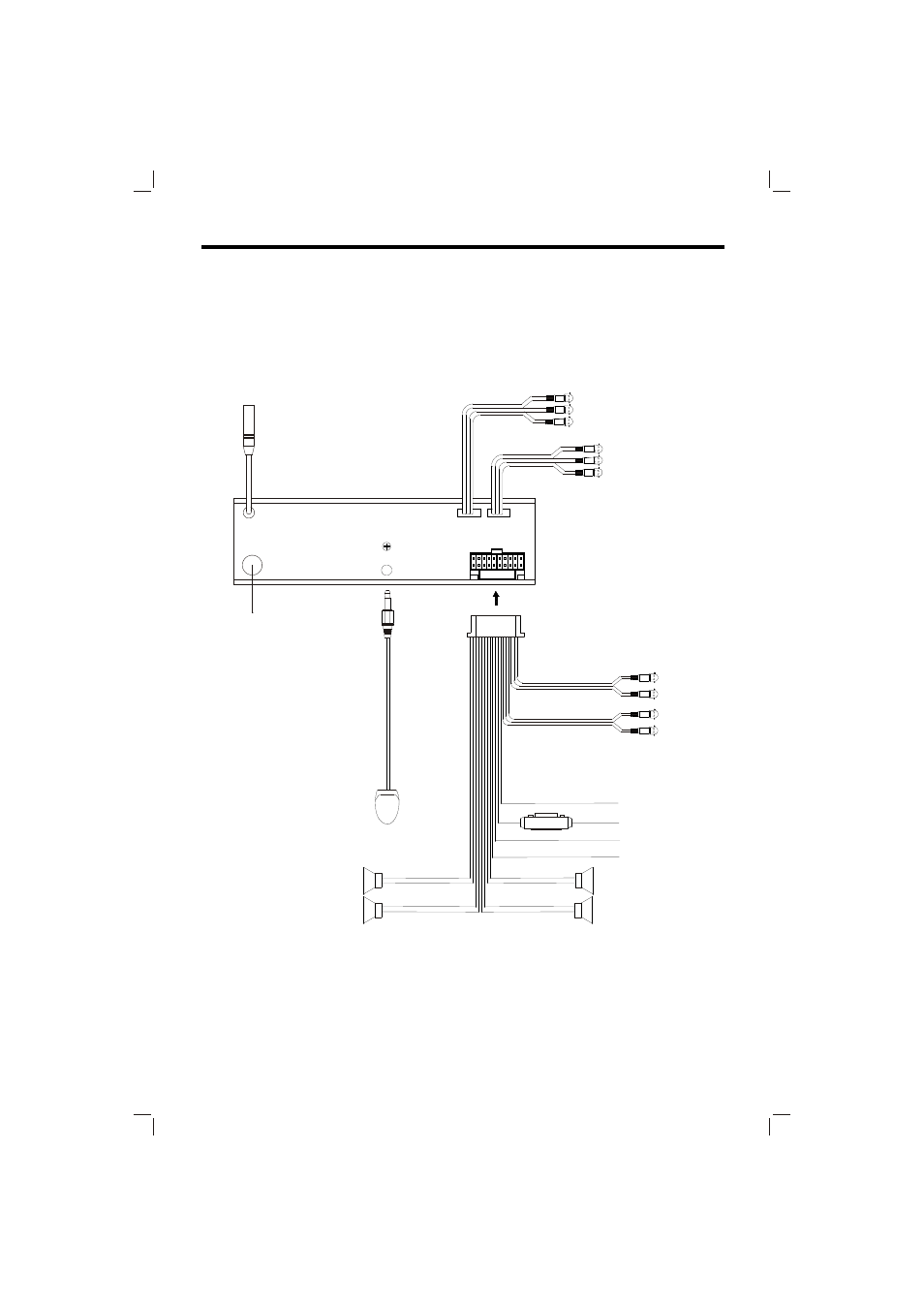

WIRING CONNECTION
20 PIN SOCKET CONNECTION
ANTENNA
ANTENNA SOCKET(OPTIONAL)
CONNECTOR
R
E
M
O
T
E
C
O
N
T
R
O
L
R
E
C
E
IV
E
R
POWER
GROUND (B-)
IGNITION
MEMORY BACK UP (B+)
+
+
SPEAKER
FRONT Lch
SPEAKER
REAR Lch
WHITE
GREEN
WHITE/BLACK
GREEN/BLACK -
-
VIOLET/BLACK
GREY/BLACK
VIOLET
GREY
REAR Rch
SPEAKER
FRONT Rch
SPEAKER
-
+
-
+
YELLOW
RED
BLACK
BLUE
SWITCH (ACC+)
ANTENNA
WHITE
VIDEO OUT 1(YELLOW)
VIDEO OUT 2 (YELLOW)
DIGITAL AUDIO (ORANGE)
AUDIO R IN (RED)
AUDIO L IN (WHITE)
VIDEO IN ((YELLOW))
REAR RCA CABLE(GREY)
(FOR RCA LINE OUT VERSION ONLY)
RED
AV OUT CABLE(GREY)
FUSE
AV IN CABLE(BLACK)
Rch
Lch
WHITE
FRONT RCA CABLE(BROWN)
RED
Rch
Lch
