Never place any object in the air intake open-

ing as this could restrict proper air flow and

cause damage to the unit.

Never use for spreading chemicals, fertiliz-

ers, or other substances which may contain

toxic materials.

To avoid spreading fire, do not use near leaf

or brush fires, fireplaces, barbecue pits,

ashtrays, etc.

Use only for jobs explained in this manual.

MAINTAIN YOUR UNIT PROPERLY

Have all maintenance other than the rec-

ommended procedures described in the

instruction manual performed by an autho-

rized service dealer.

Disconnect spark plug before performing

maintenance except for carburetor adjust-

ments.

Use only recommended

Poulan or Poulan

PRO

replacement parts; use of any other

parts may void your warranty and cause

damage to your unit.

Empty fuel tank before storing the unit. Use

up fuel left in carburetor by starting engine and

letting it run until it stops.

Do not use any accessory or attachment

other than those recommended by manufac-

turer for use with your unit.

Do not store the unit or fuel in a closed area

where fuel vapors can reach sparks or an

open flame from hot water heaters, electric

motors or switches, furnaces, etc.

Store in a dry area out of reach of children.

SPECIAL NOTICE:

For users on U.S. For-

est Land and in some states, including Califor-

nia(Public Resources Codes 4442 and 4443),

Idaho, Maine, Minnesota, New Jersey, Oregon,

and Washington: Certain internal combustion

engines operated on forest, brush, and/or grass

covered land in the above areas are required to

be equipped with a spark arrestor, maintained in

effective working order, or the engine must be

constructed, equipped, and maintained for the

prevention of fire. Check with your state or local

authorities for regulations pertaining to these re-

quirements. Failure to follow these requirements

is a violation of the law. This unit is not factory

equipped with a spark arrestor; however, a

spark arrestor is available as an optional part. If

a spark arrestor is required in your area, contact

your authorized service dealer for the correct kit.

The spark arrestor, blower tubes, and nozzles

must be assembled to unit to be in full com-

pliance with regulations.

SPECIAL NOTICE:

Exposure to vibra-

tions through prolonged use of gasoline pow-

ered hand tools could cause blood vessel or

nerve damage in the fingers, hands, and

joints of people prone to circulation disorders

or abnormal swelling. Prolonged use in cold

weather has been linked to blood vessel dam-

age in otherwise healthy people. If symptoms

occur such as numbness, pain, loss of

strength, change in skin color or texture, or

loss of feeling in the fingers, hands, or joints,

discontinue the use of this tool and seek

medical attention. An antivibration system

does not guarantee the avoidance of these

problems. Users who operate power tools on

a continual and regular basis must monitor

closely their physical condition and the condi-

tion of this tool.

ASSEMBLY

WARNING:

Stop engine and be sure

the impeller blades have stopped turning be-

fore opening the vacuum inlet door or at-

tempting to insert or remove the vacuum or

blower tubes. The rotating blades can cause

serious injury. Always disconnect the spark

plug before performing maintenance or ac-

cessing movable parts.

WARNING:

If you receive your unit

assembled, check each step to insure your

unit is properly assembled and all fasteners

are secure. Follow all safety information in

the manual and on the unit.

A standard screwdriver is required for as-

sembly.

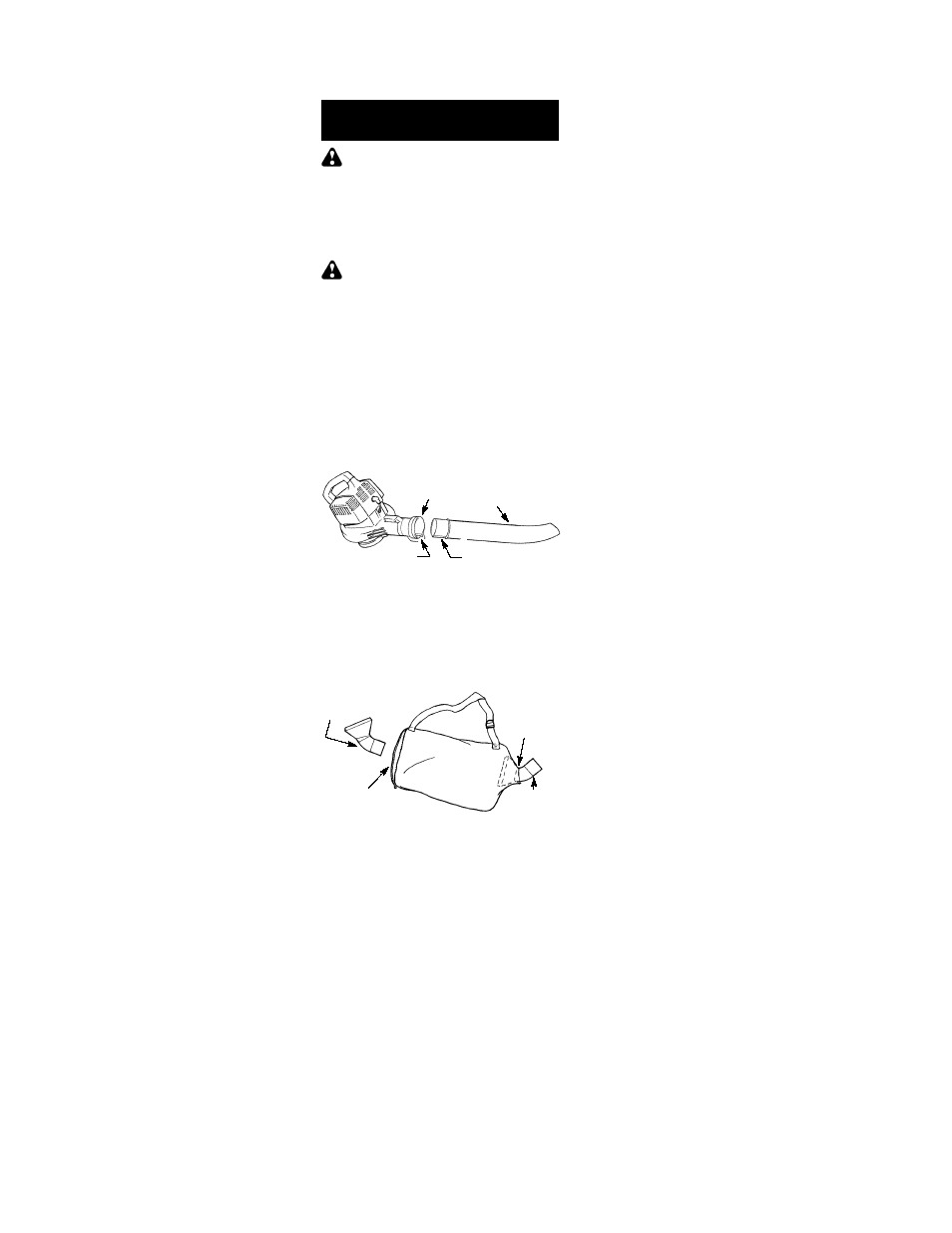

BLOWER TUBE ASSEMBLY

Align the rib on the blower tube with the

groove in the blower outlet; slide the tube

into place.

NOTE:

Tube clamp must be loose enough to

allow blower tube to be inserted in blower out-

let. Loosen tube clamp by turning knob coun-

terclockwise.

Blower

Tube

Blower

Outlet

Rib

Groove

Tighten the tube clamp by turning the knob

clockwise.

To remove the tube, turn the knob counter-

clockwise to loosen clamp; remove tube.

VACUUM BAG ASSEMBLY

Open the zipper on the vacuum bag and in-

sert the elbow tube.

Push the small end of the elbow tube

through the small opening in the bag.

Small

Opening

Zipper

Opening

Elbow

Tube

Rib

NOTE:

Make sure edge of the small opening

is flush against the flared area of the elbow

tube, and the rib on the elbow tube is on the

bottom.

Close the zipper on the bag. Make sure the

zipper is closed completely.

Remove blower tube from engine.
