DataMan2
Operating Instructions
DataMan2_OI_104.doc Page 19 of 35
To save the uploaded barcode command stack, press the Save As button at the
lower left corner of the Command Stack/Blackboard pop-up window.
Blackboard
The Blackboard settings are as follows:
•
Num of group – Total number of Blackboard displays
If no data is present, the number remains as ‘1’.
•
Num of unit – the total number of graphic pages in the group
•
Num of data – the total number of blackboard objects in the group
Example of blackboard data:
Num of group 001 first blackboard group
Num of unit 002 2 “pages” of blackboard items
Num of data 005 3 objects on one page and 2 objects on a second page

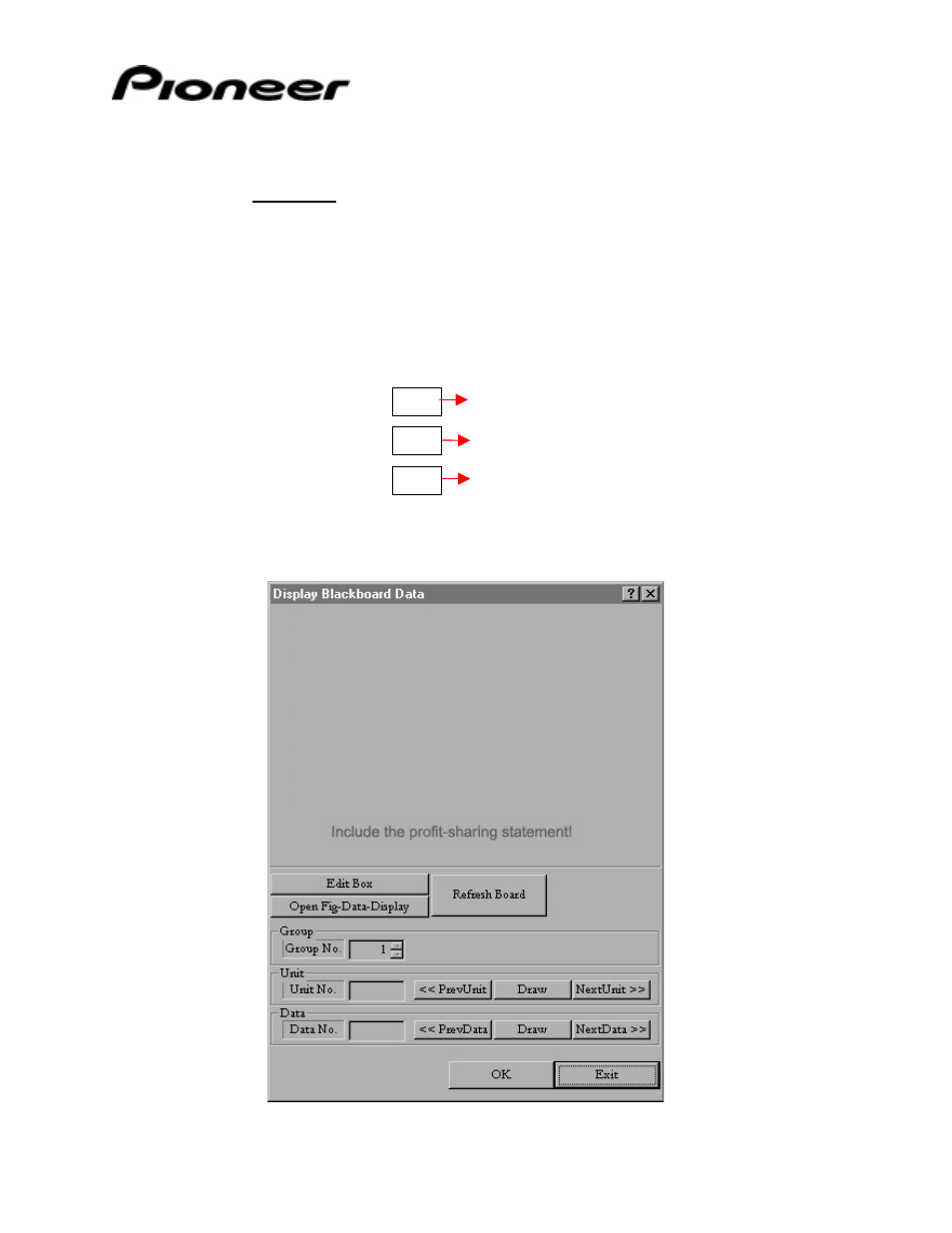

Pressing the Blackboard’s Display data button (column on right) causes the
Blackboard Data window to open.
