OPERATION
02825_LSW
KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR.
Compare the illustrations with your tractor to familiarize yourself with the location of various controls and adjustments.
Save this man ual for future reference.
HEIGHT
AD JUST MENT
KNOB
GEAR SHIFT
LEVER
AMMETER - Indicates battery charging (+) or discharg-
ing (-).
ATTACHMENT CLUTCH SWITCH - Used to engage mow er
blades or other attachments mounted to your trac tor.
CHOKE CONTROL - Used when starting a cold engine.
CLUTCH/BRAKE PEDAL - Used for declutching and brak-
ing the tractor and starting the engine.
GEARSHIFT LEVER - Selects the speed and direction
of tractor.
HEIGHT ADJUSTMENT KNOB - Used to adjust the mow er
height.
HOURMETER - Indicates hours of operation.
IGNITION SWITCH - Used to start and stop the engine.
LIFT LEVER - Used to raise and lower mower deck or other
attachments mounted to your tractor.
LIFT LEVER PLUNGER - Used to release attachment lift
lever when changing its position.
LIGHT SWITCH - Turns the headlights on and off.
PARKING BRAKE LEVER - Locks brake pedal into the
brake position.
RANGE SHIFT LEVER - Allows high (H) or low (L) speed
for all forward and reverse gears.
REVERSE OPERATION SYSTEM (ROS) “ON” POSI-
TION - Allows operation of mower deck or other powered
attachment while in reverse.
THROTTLE CONTROL - Used to control engine speed.

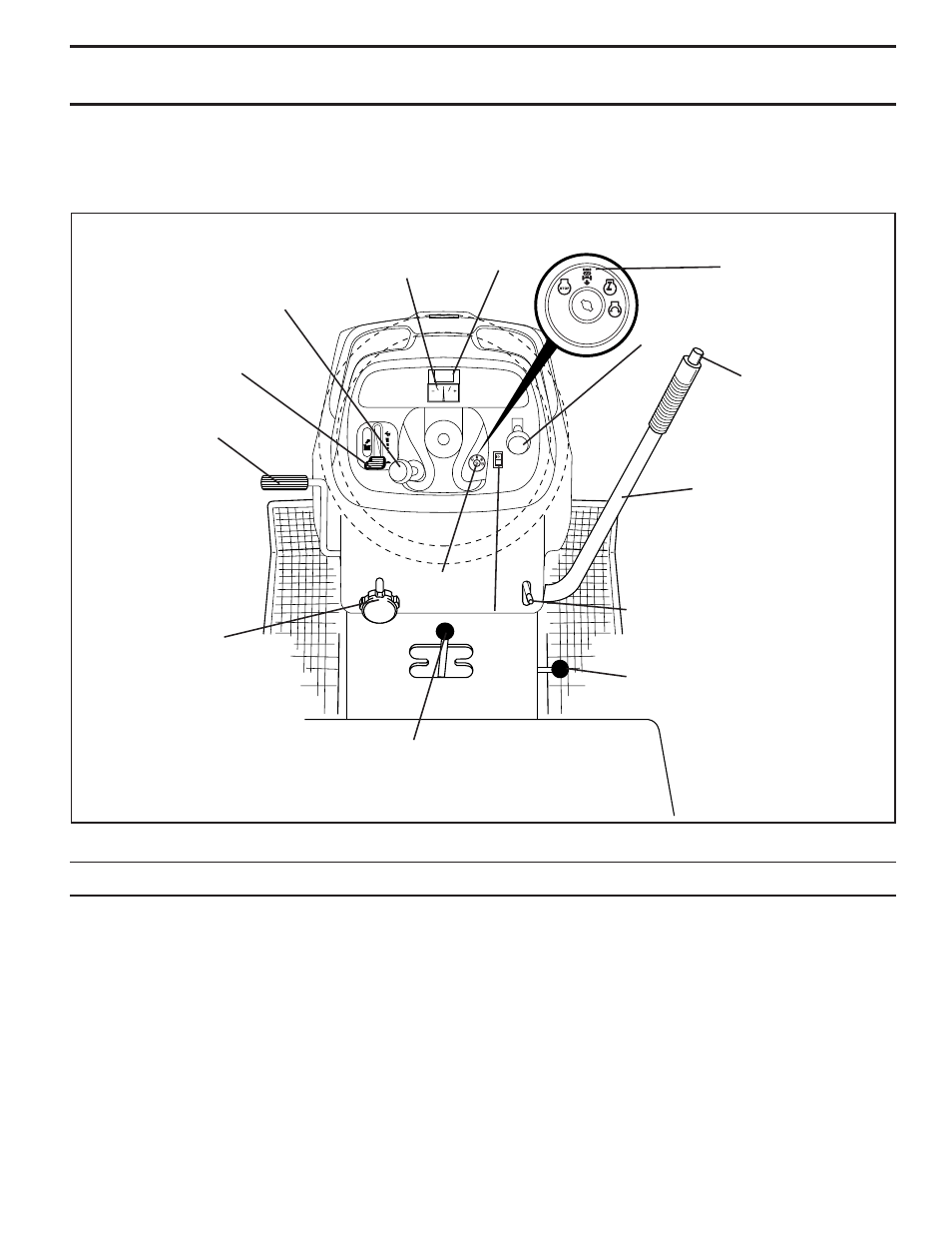

FIG. 8
Our tractors conform to the safety standards of the American National Standards Institute.
PARKING
BRAKE LEVER
ATTACHMENT
CLUTCH SWITCH
LIFT LEVER
IGNITION
SWITCH
THROTTLE
CONTROL
AMMETER
CHOKE CON TROL
ROS "ON"
POSITION
CLUTCH/
BRAKE PEDAL
LIFT LEVER
PLUNGER
HOURMETER
LIGHT
SWITCH
RANGE SHIFT
LEVER
