HARDWARE KIT

After unpacking the treadmill, open the hardware kit and make sure that you have
the following items shown in Diagram 2.

❑ (A) twelve 1-inch buttonhead hex screws
❑ (B) sixteen stainless steel washers — place on 1-inch screws
❑ (C) four ⁵⁄₈-inch flat head hex screws — attach to upper handrails
❑ (D) four 3¹⁄₂-inch socket head screws — install upright supports
❑ (E) four black washers — fasteners for upright supports
❑ (F) four barrel spacers — place on 3¹⁄₂-inch socket head screws after washers
❑ (G) ⁵⁄₃₂-inch hex key — attach handrails to display frame
❑ (H) ³⁄₁₆-inch hex key — attach hood, mount upright supports, attach display

and handrails to base frame

❑ (J) ¹⁄₄-inch hex key — attach upright supports to base mounting brackets
❑ (K) ⁵⁄₁₆-inch hex key — adjust running belt

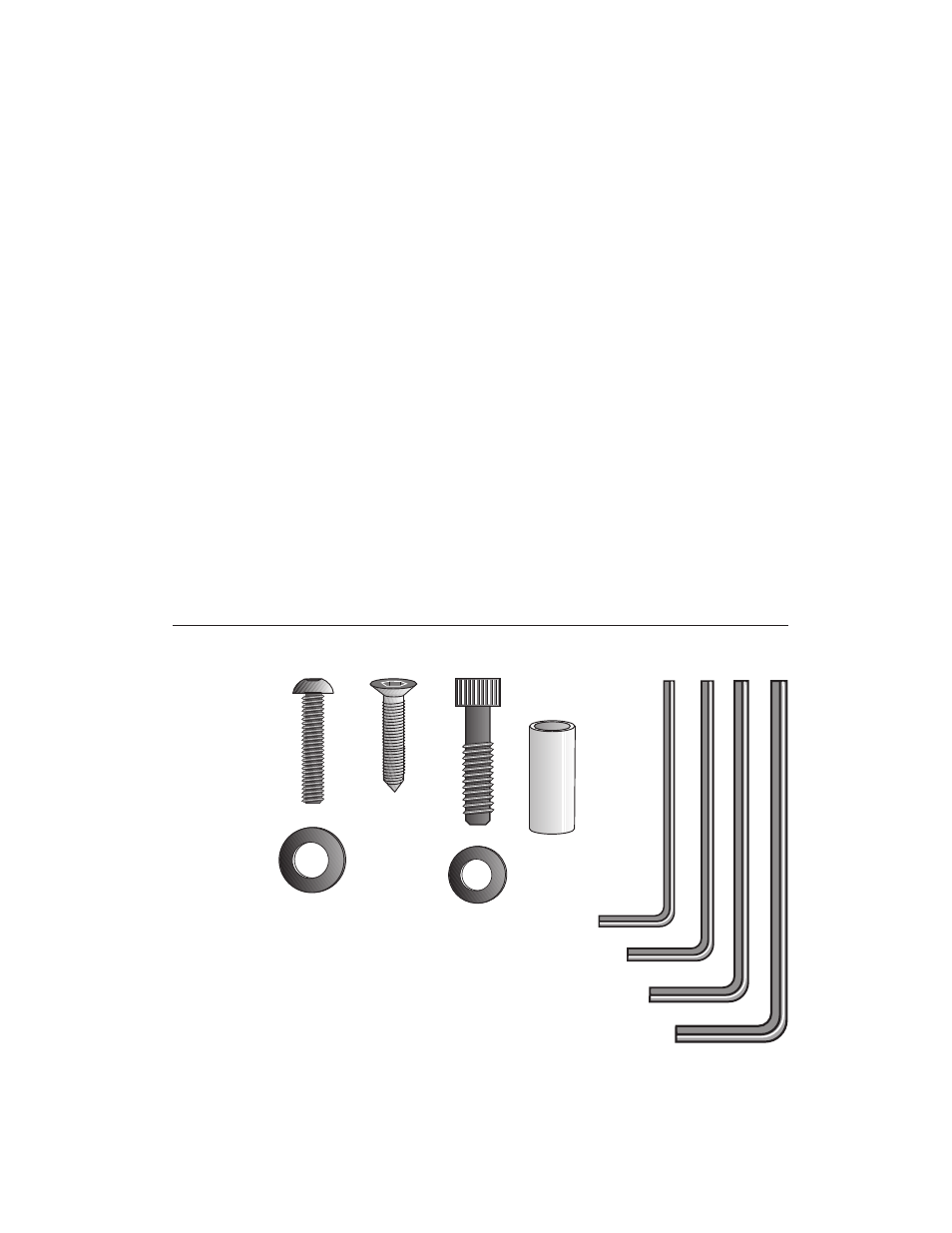

Diagram 2

Hardware kit (not shown to scale).

A

C

D

B

E

F

G

H

J

K

Note: After assembling the treadmill, be sure to store the hex keys in a secure
place. The tools are used for specific maintenance procedures that are described
in this manual.
