41
REPAIR PARTS
TRACTOR - - MODEL NUMBER PRGT2046B

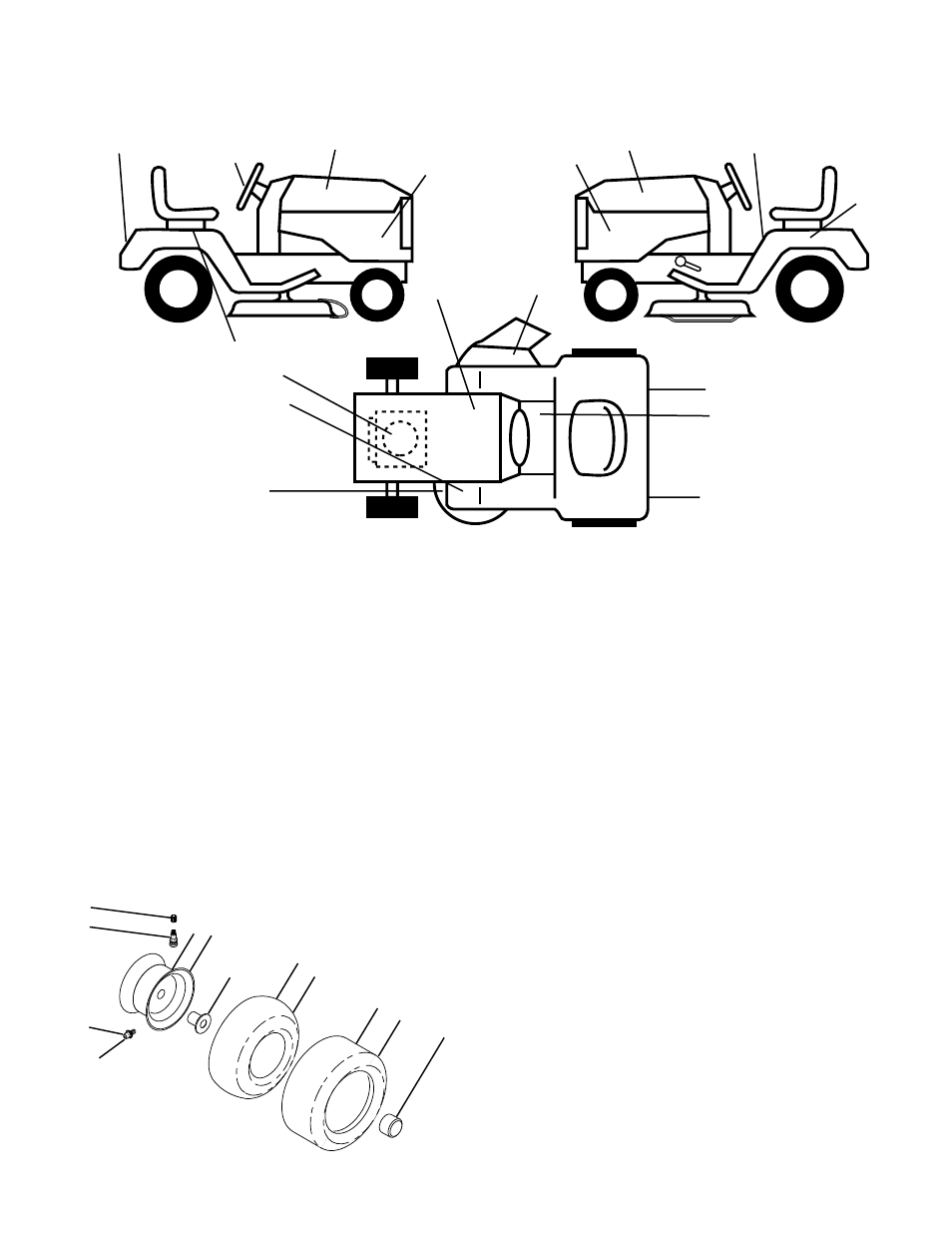

DECALS
23
3
9
14
5
4
23
5
10
19
16
1
11
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 176674 Decal, Dash
2 170851 Decal, Engine
3 176272 Decal, Hood, RH
4 176273 Decal, Hood, LH
5 176652 Decal, Hood Side PNL
9 172740 Decal, Fender
10 157140 Decal, Danger
11 101892X Decal, Clutch/Brake
14 160397 Decal, V-Belt Schematic
15 172743 Decal, Ins. Whl. Strg.
16 170563 Decal, Housing Mower, Warning
19 145005 Decal, Battery
23 106202X Reflector, Taillight
29 176650 Decal, Fender
- - 138311 Decal, Handle Lift (Lift Handle)
- - 133671 Pad Footrest
- - 178500 Manual, Owner's (English)
- - 178501 Manual, Owner's (French)
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
6
12
2
1
3 11
4
10
5
9
8
7
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106228X427 Rim Assembly, Front
4 8134H Tube, Front (Service Item Only)
5 106230X Tire, Front
6 278H Fitting, Grease (Front Wheel nly)
7 9040H Bearing, Flange (Front Wheel Only)
8 104757X Cap, Axle (Front Wheel Only)
9 105588X Tire, Rear
10 7154J Tube, Rear (Service Item Only)
11 106277X427 Rim Assembly, Rear
12 6856M Fitting, Grease
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
29
29
15
2
