- 6 -

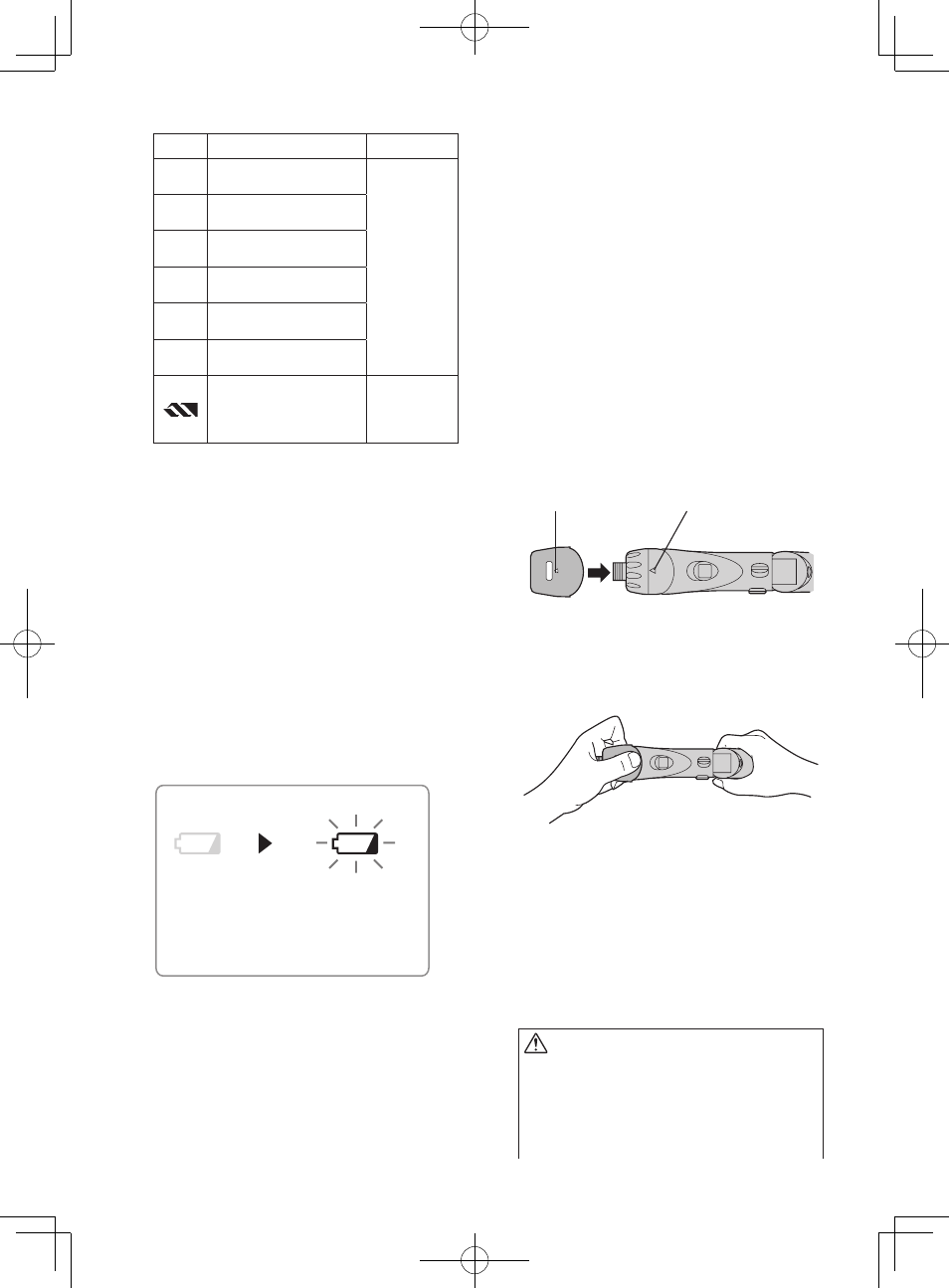

Reference for Adjusting Torque
Scale
Torque
Use
1
Approx: 0.9 N·m
(.0 kgf-cm or .6 in-lbs)
For driving
screws
5
Approx: 0.8 N·m
(8. kgf-cm or 7. in-lbs)
9
Approx: 1.5 N·m
(1.8 kgf-cm or 1.0 in-lbs)
1
Approx: 1.88 N·m
(19. kgf-cm or 16.6 in-lbs)
17
Approx: .1 N·m
(.6 kgf-cm or 1. in-lbs)
1
Approx: .9 N·m
(0.0 kgf-cm or 6.0 in-lbs)
Approx: . N·m
(5.0 kgf-cm or 9.0 in-lbs)
For power-
ful driving
screws and
drilling
● When using at high speeds, set the
scale at 10 or below. (Operation
stops at the maximum torque of 1.5
N·m (15 kgf-cm) when the scale is
higher.)
● The auto shut-off function may be-
come inoperable at use at higher
scales when battery power drops.
Recharge the battery in that case.
NOTE:
The chart is only a reference. The
torque setting may differ by materi-
als, types of screws, etc. Please test
it at your own conditions before use.
Battery Low Warning Lamp
Off
(normal
operation)
Flashing
(No charge)
Battery
protection
feature active
Excessive (complete) discharging of
Li-ion batteries shortens their service
life dramatically. The driver includes a
battery protection feature designed to
prevent excessive discharging of the
battery pack.
● The battery protection feature acti-
vates immediately before the bat-
tery loses its charge, causing the
battery low warning lamp to flash.
●
If you notice the battery low warn-
ing lamp flashing, charge the bat-
tery pack immediately.
Clutch Lock Cover
The clutch lock cover allows you to
lock the clutch at the selected gradu-
ation.
Attaching the cover
1. Select the torque required to move
the clutch.
. Attach the clutch lock cover.
● Align the triangle mark on the
cover with the graduation selec-
tion mark on the drill and attach.
Triangle mark
Graduation selection
mark
Removing the cover
1.
Grip the clutch lock cover with your
fingers on the mark and the bot-
tom of the cover and remove.
●
It will be difficult to remove the
clutch lock cover from the drill if
you push on the side of the cover
while pulling it off.
Using the LED Light
Use the LED light on jobs in dark
locations such as attics to illuminate
your workspace.
CAUTION
● The LED light is intended for use as
a supplemental light source. Do not
use it as a flashlight.
Doing so may result in accident or
injury.
