INITIAL ASSEMBLY
Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly
to make some comfort adjustments. Figure 10 details those parts of the power chair that are designed to be disassembled and
assembled by an end user or by a qualified caregiver before using the product or making comfort adjustments.
I V . A S S E M B L Y
ARMREST ANGLE
ADJUSTMENT
SEAT INSTALLATION

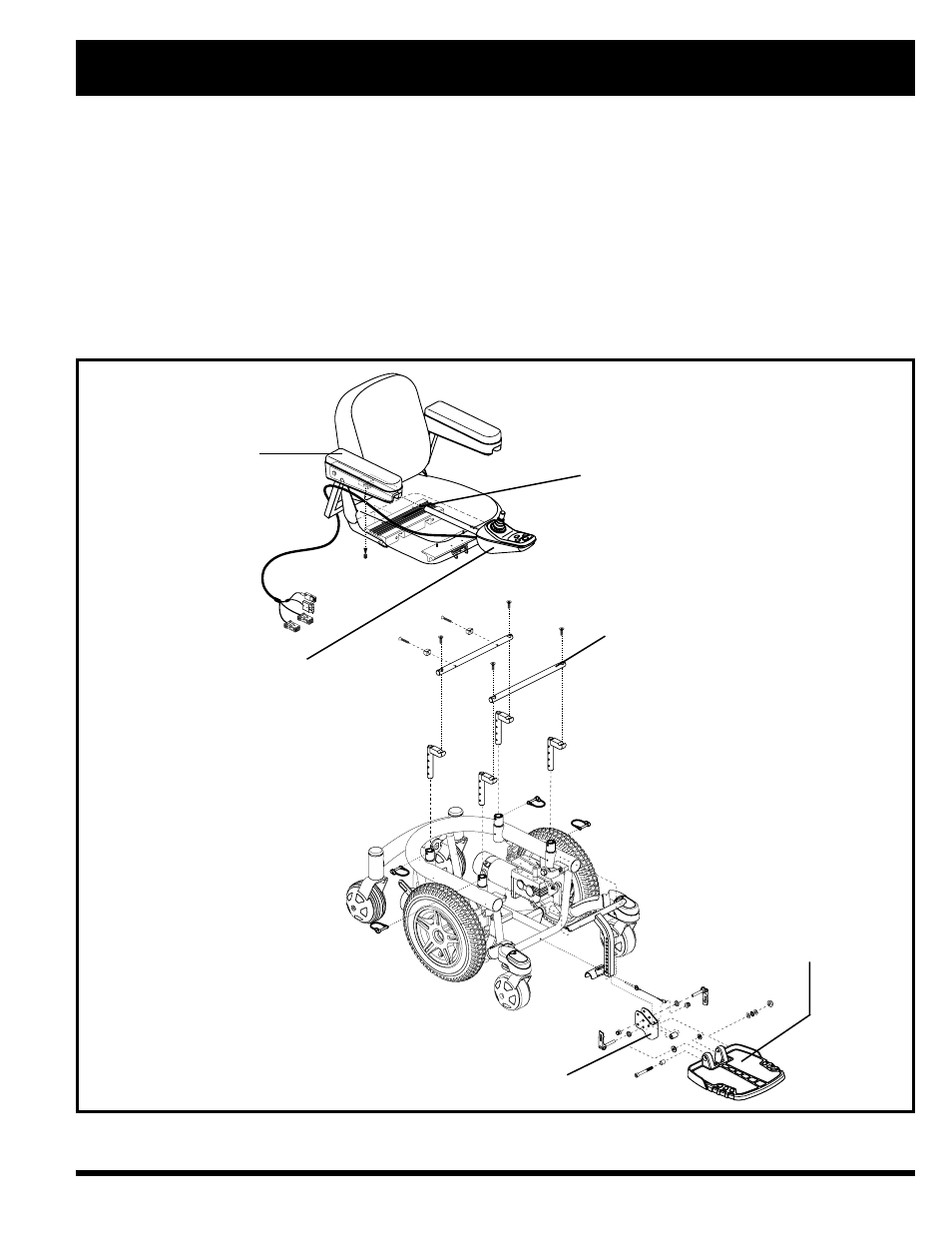

Figure 10. Quantum 500 Assembly View (Standard Seating Shown)
FOOT PLATFORM HEIGHT/DEPTH ADJUSTMENT
SEAT HEIGHT/ANGLE ADJUSTMENT
CONTROLLER POSITION
FOOT PLATFORM
ANGLE ADJUSTMENT
NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be
replaced with a new nut. Nylon insert lock nuts should not be reused as it may cause damage to the nylon
insert, resulting in a less secure fit. Replacement nylon insert lock nuts are available at local hardware stores
or through your Quantum Rehab Specialist.
