IMPORTANT!
– If the picture is distorted, check the
Video Output setting. Make sure it is set
to ‘S-Video’, see page 31.

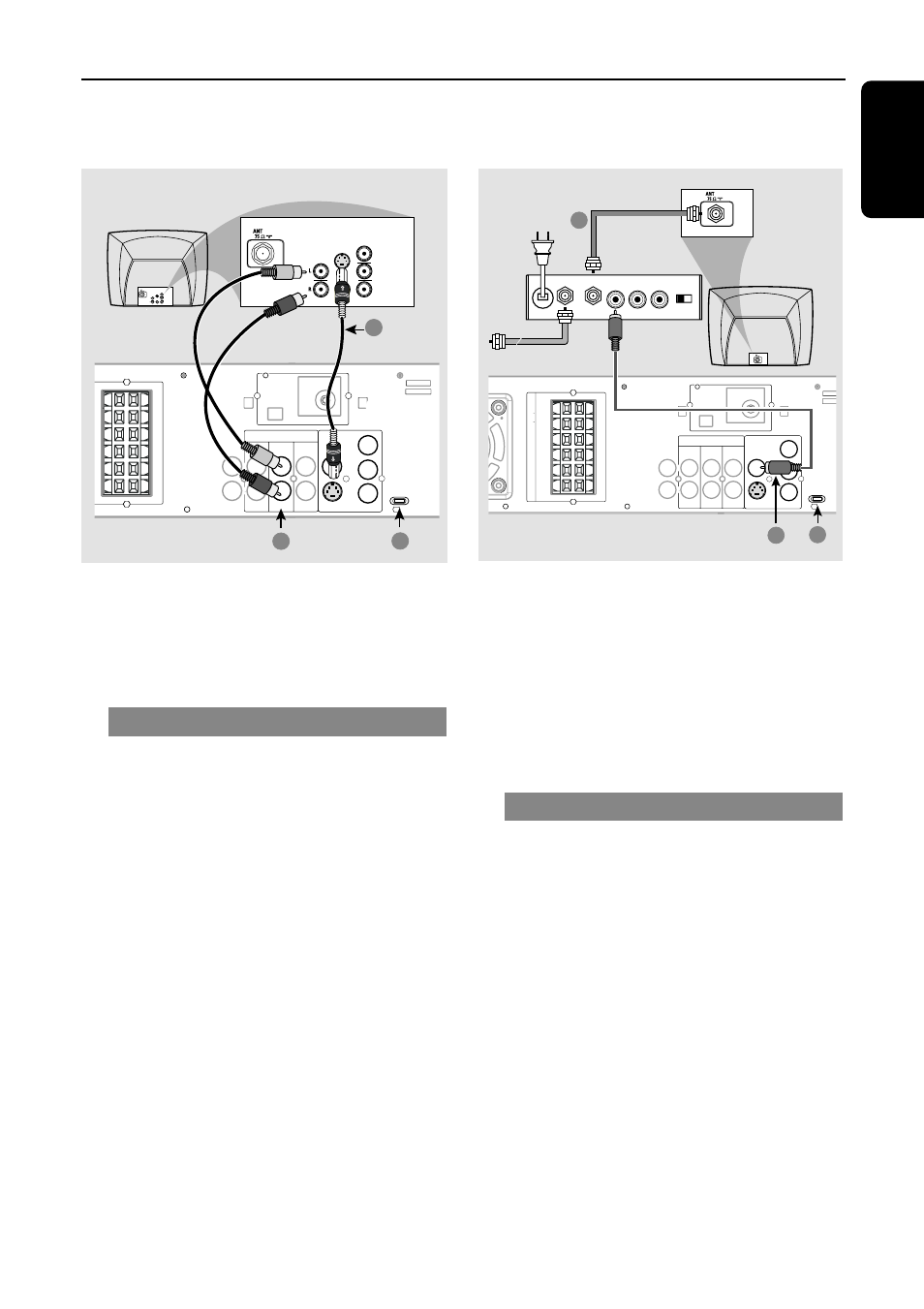

Using S-Video jack
1
Use the S-video cable (not supplied) to connect
the DVD system’s
S-VIDEO OUT jack to the
S-Video input jack (or labelled as Y/C or S-VHS)
on the TV.
2
To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect
TV IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV.
3
Set the P-SCAN switch to ‘OFF’.
IMPORTANT!
– If your TV only has a single Antenna In
jack (or labelled as 75 ohm or RF In),
you will need an RF modulator in order
to view the DVD playback on the TV.
See your electronics retailer or contact
Philips for details on RF modulator
availability and operations.
Using an accessory RF modulator
1
Use the composite video cable (yellow) to
connect the DVD system’s
CVBS jack to the
video input jack on the RF modulator.
2
Use the RF coaxial cable (not supplied) to
connect the RF modulator to your TV’s RF jack.
3
Set the P-SCAN switch to ‘OFF’.
Pb
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
FM ANTENNA
MW
L
R
SPEAKER SYSTEMS (4
Ω )
SUB-
WOOFER
SURROUND
CENTER
FRONT
L
R
SL
SUB
SR
C
Pr
Y
AUDIO IN
R L VIDEO
IN
TO TV INT IN
CH3 CH4
1 3
2
P-SCAN
ON OFF
P-SCAN
ON OFF
Pb
DIGITAL
OUT
DIGITAL
IN
AUX
IN
TV
IN LINE
OUT
AUDIO VIDEO
OUT
CVBS
S-VIDEO
FM ANTENNA
MW
L
R
WOOFER
SURROUND
CENTER
FRONT
L
R
SL
SUB
SR
C
Y
AUDIO
OUT
Pr/Cr
Pb/Cb
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO OUT Pr/Cr
Pb/Cb Y
S-VIDEO IN
VIDEO IN
COMPONENT VIDEO IN
1
3
Pr
2
RF coaxial cable to TV
Back of RF Modulator
(example only)
Antenna or
Cable TV Signal
Connections
