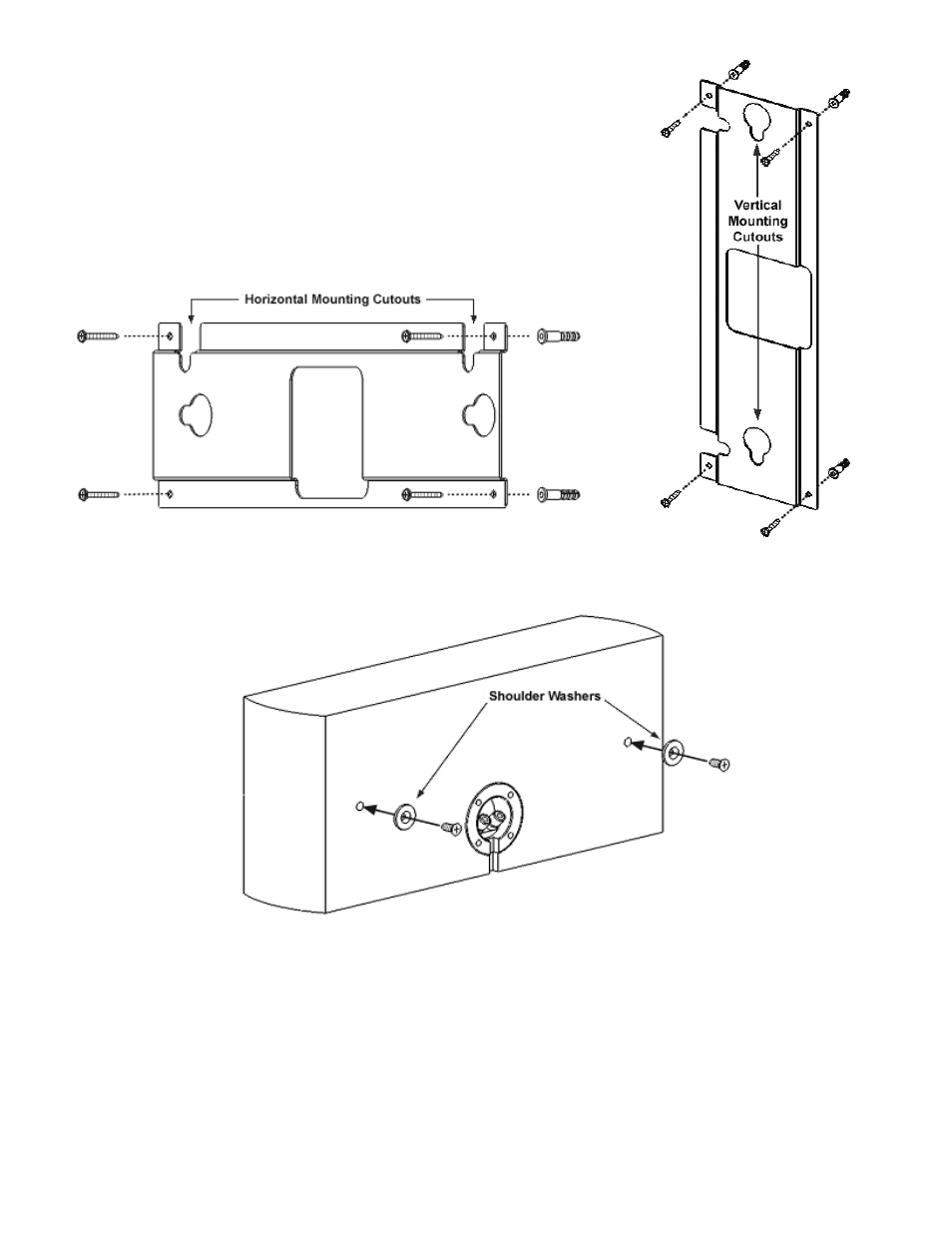

6) Unscrew the two decorative plugs on the rear of the subwoofer to access the threaded inserts.
Screw both shoulder washers securely to the cabinet.
7) Attach your wires to the subwoofer, being sure to observe proper polarity (PIN AMP 800 subwoofer
output positive (+) to the red terminal, PIN AMP 800 subwoofer output negative (-) to the black terminal).
8) Position the subwoofer over the mounting bracket and guide the two shoulder washers into the
appropriate cutouts in the mounting bracket. Slowly lower the subwoofer approximately 3/4" until the
cabinet comes to a rest. The subwoofer should now be secure.
