Philips DVD760/17B - Manual

COAXIAL OPTICAL
DIGITAL AUDIO OUT
PCM/ MPEG2/
Dolby Digital
VIDEO
S-VIDEO
L R
MAINS
Y Pr/Cr Pb/Cb
PROGRESSIVE
INTERLACE
VIDEO IN
RIGHT
AUDIO IN
Back
of TV
LEFT
AUDIO IN
TO TV
VIDEO IN
TO TV
AUDIO IN
2
4
3

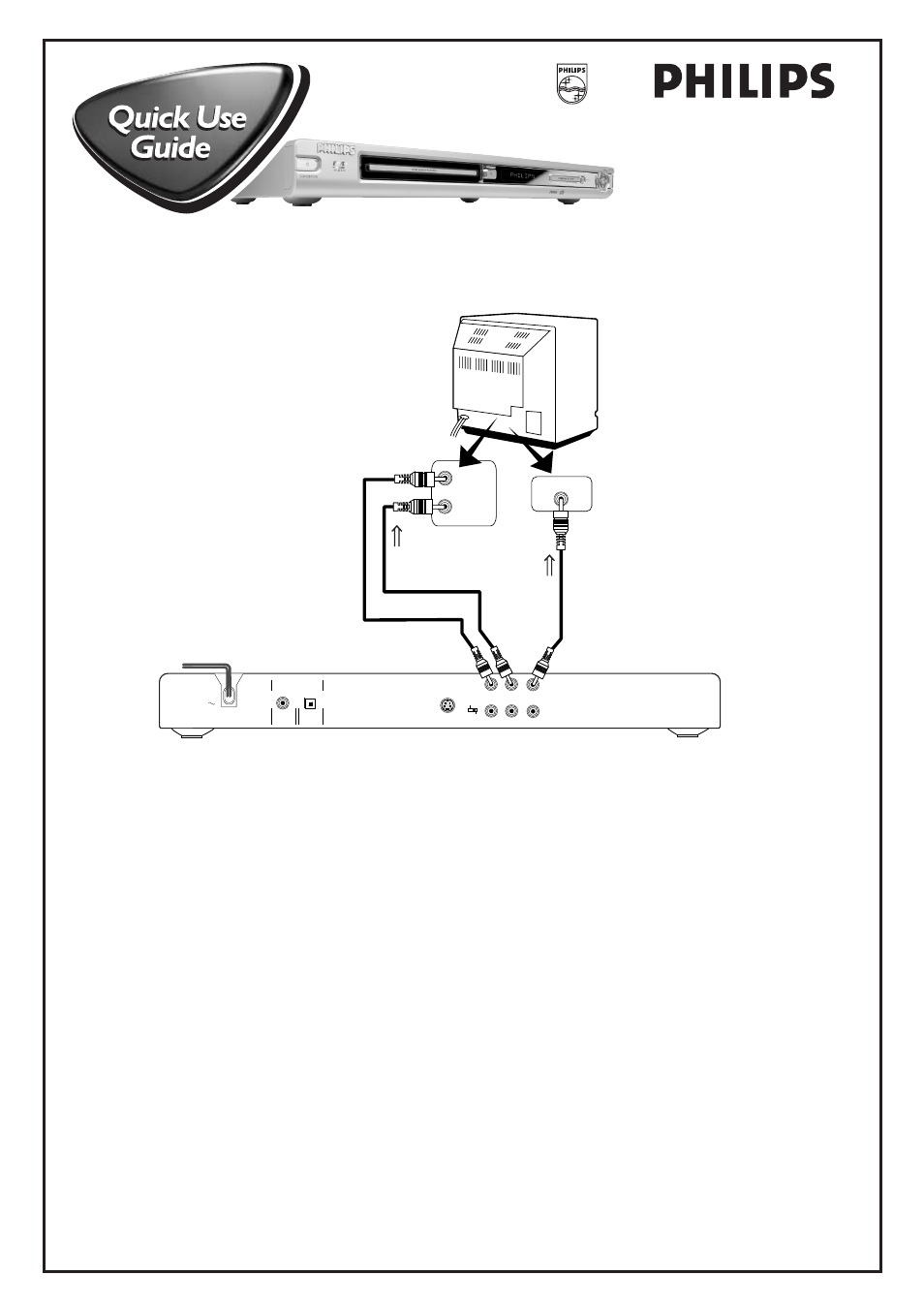

1 Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2 Connect the yellow VIDEO OUT jack of the Player to the corresponding VIDEO IN jack on your TV. Use the
supplied video cable, which has yellow ends. On the TV, the VIDEO IN jack is usually yellow and might be labeled video,
CVBS, composite, or baseband.
3 Connect the supplied audio cable to the red and white AUDIO OUT (right and left) jacks on the Player
and to the right/left AUDIO IN jacks on the TV. The supplied audio cable has red and white ends. Match the cable
colors to the jack colors. On the TV, the AUDIO IN jacks are usually labeled Audio.The red jack is the right (stereo
channel) and the white jack is the left (stereo channel).
4 Set the PROGRESSIVE/INTERLACE switch to INTERLACE.
5 Plug the power cords of the Player and the TV into an active power outlet.
Press the STANDBY-ON button on the front of the Player to turn on the Player.
6 Turn on the TV power. Set the TV to the correct Video In channel. Such channels may be called AUX or
AUXILIARY IN, AUDIO/VIDEO or A/V IN, EXT1 or EXT2 or External In, etc.These channels are often near channel 00.
See your TV manual for details. Or, change TV channels until you see the Player’s blue screen saver on the TV.
Remember...
● Connect the Player directly to the TV. For example, do not connect the Player to a VCR, then connect the VCR to a TV.This
type of connection may distort the picture and sound or give you a black and white picture. Also, your VCR might have the
copy protection system, which could distort the DVD image or prevent playback of some Discs.
● If your TV does not have red, white, and yellow Audio and Video In jacks, refer to the owner’s manual for other hookup options. If
your TV only has a single Antenna In or RF In jack, you will need an RF modulator. See the owner’s manual for details.
DVD760
There are many ways to connect your new DVD/SACD Player to your Television and other equipment.This
Quick Use Guide shows the easiest, most common connection between the Player and a TV.
Higher quality connections are explained in the accompanying owner’s manual and will provide better sound or
picture if your TV and/or audio system is compatible.
3139 246 12251
