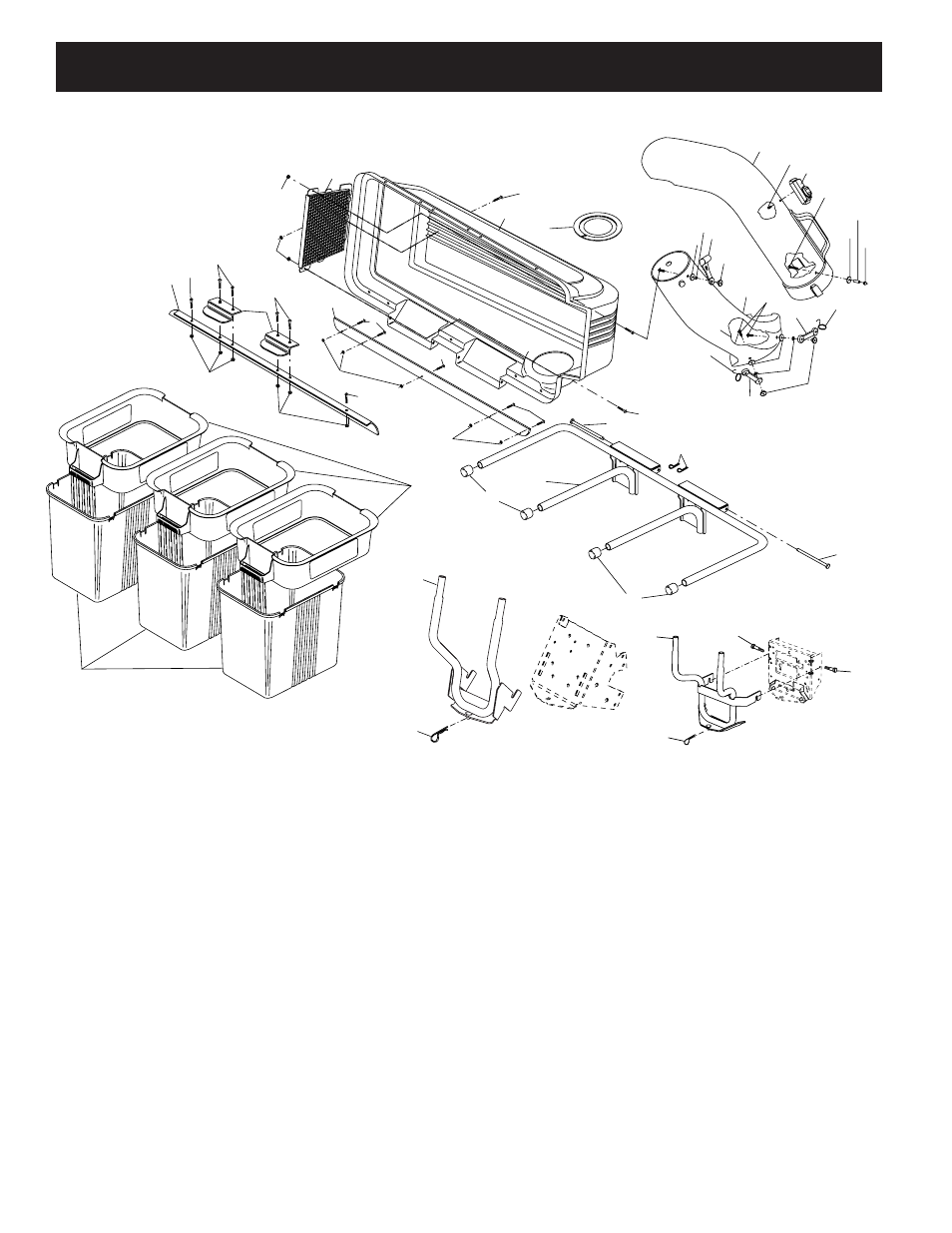

GRASS CATCHER- - MODEL NUMBER LTGTB48A
WA RN IN G Do not ope ra te mo we ru nle ss con ta in er is pro per lyi sn sta lle d.C ont ain er is
sub je ctt ow ear and det ie rio ra tio n.C hec kb ag fre que ntly .R epl ace wh en
cra cke do rd am age d.U se onl ya re com me nde dre pla cem ent con ta in er.
WA RN IN G
Do no t o pe rat e m ow er un les s c on tai ne r is pro pe rly is ns tal led .C on tai ne r is
su bje ct to we ar an d d eti eri ora tio n. Ch ec k b ag fre qu en tly. Re pla ce wh en
cra cke d o r d am ag ed . U se on ly a r ec om me nd ed rep lac em en t c on tai ne r.
35
27
34
36
WA RN IN G
Do no t o pe rat e m ow er un les s c on tai ne r is pro pe rly is ns tal led .C on tai ne r is
su bje ct to we ar an d d eti eri ora tio n. Ch ec k b ag fre qu en tly. Re pla ce wh en
cra cke d o r d am ag ed . U se on ly a r ec om me nd ed rep lac em en t c on tai ne r.
20
20
37
2
20
38
2
20
40
40
40
2
2
39
30
33
32
26
31
31
33
2
3
4
2
20
20
20
9
12
13
14
18
5
8
9
10
11
20
9
12
16
15
16
14
6
7
15
28
29
29
30
REPAIR PARTS
KEY PART
NO. NO. DESCRIPTION
2 532069180 Nut, Crown lock #10-24
3 532127533 Screen, Cover
4 532139850 Cover Assembly
(Includes 3, 37, 38, 39)
5 532176741 Chute, Upper
6 818021008 Screw, Special #10-14x1/2
7 532140572 Dump Bag Indicator
8 532087175 Screw, #10-24 x 1-1/8
9 819061216 Washer 3/16x3/4x16 Ga.
10 532007206 Spacer, Split
11 532060867 Nut, Acorn #10-24
12 810071000 Washer, Lock
13 532109808 Latch, Chute
14 532125004 Nut, Weld
15 532130760 Latch, Hook
16 532130759 Rubber, Latch
18 532174345 Chute, Lower
KEY PART
NO. NO. DESCRIPTION
20 871161010 Screw #10-24 x 5/8
26 532124670 Spring, Retainer
27 532176987 Support Assembly - GT
28 532179534 Support Assembly - LT
29 532176997 Shoulder Bolt,Self Tapping
30 532165898 Spring, Retainer
31 532174083 Plug, Tubing End
32 532176990 Bagger, Frame
33 532128600 Pin, Hinge
34 532127534 Gasket, Cover
35 532183286 Container, Top
36 532129586 Container, Bottom
37 532134637 Seal, Cover
38 532130895 Latch Handle, Cover
39 532186601 Strip, Reinforcement
40 871141008 Screw #10-24 x 1/2
- - 532190227 Owner's Manual
