Figure 8, Step 8 – ParaBody 832102 User Manual
Page 10
10

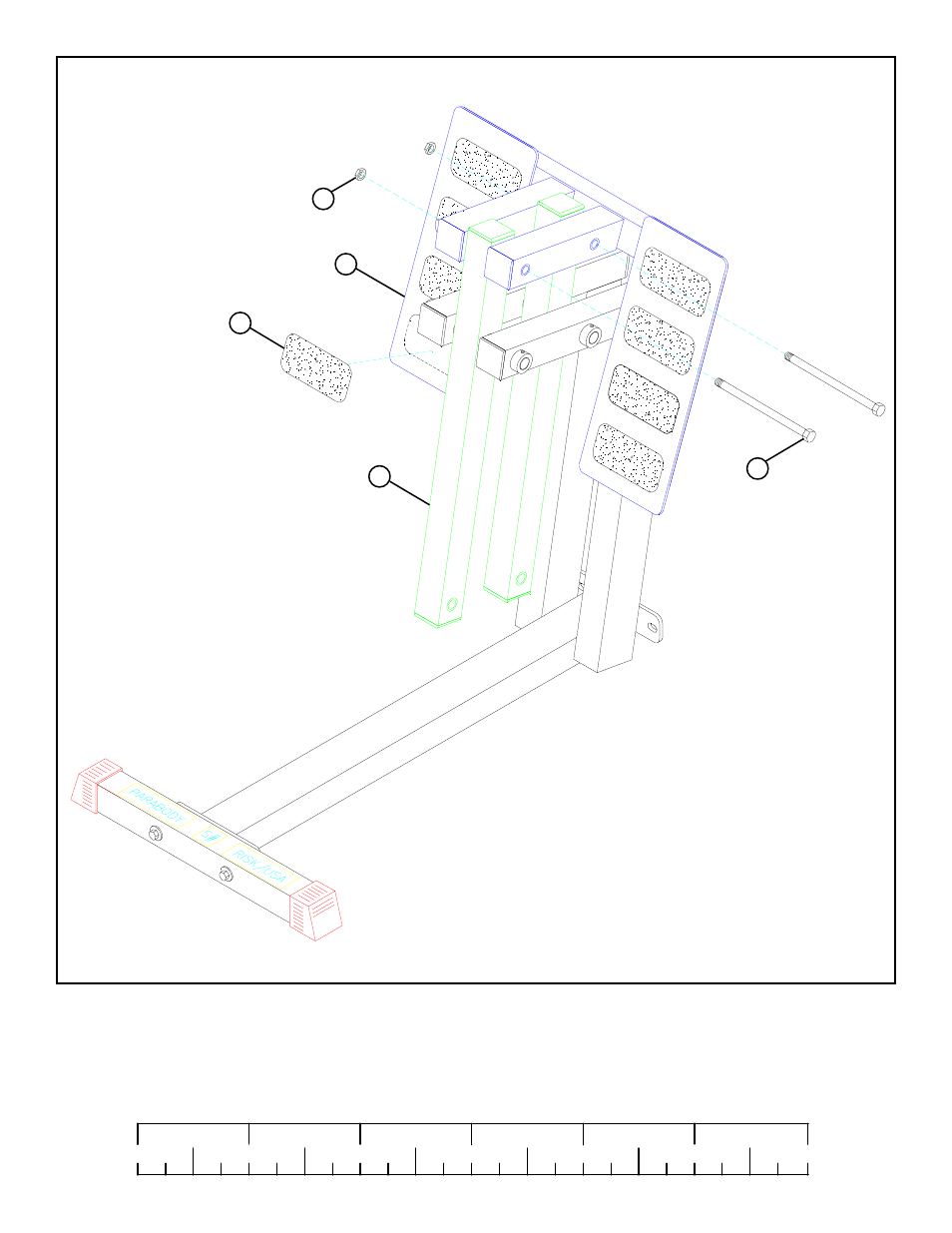

FIGURE 8
STEP 8:
• SECURELY assemble the FOOT PLATE (4) to the LEVER TUBES (5) using two 1/2 X 6-1/2” BOLTS (28) and two 1/2” LOW
HEIGHT LOCK NUTS (22) as shown in FIGURE 8.
0
1
2
3
4
5
6
1/2
1/2
1/2
1/2
1/2
1/2
1/2” LOW HEIGHT 22
28 1/2 X 6-1/2”
5
12
4
• CAREFULLY attach eight NON-SKID STRIPS (12) to the FOOT PLATE (4) as shown in FIGURE 8.
