Caution :
This Product LCD /Plasma
Wall Mount Bracket is intended for use only
with the maximum weights indicated .See
apparatus instructions .Use with products
heavier than the maximum weights indicated
instability causing possible injury .
Caution :
Fig 3
According LCD hole's size, deep, position to choose bolts. Using chose
bolts(A-D) and washers(E) to install the LCD on the panel. As shown
in Fig3.
Don't force the bolt to LCD hole,
avoiding damage to people and instrument.
Don't use electronics drill to fasten screw
Installing the LCD
Carefully:
Step4 Installing the LCD
Carefully:
A-D
E
TV Plate
Warning: Some TV require two people
to lift, as we are not responsible for any
personal injur y or product damage due
to mishandling. Warning:
Step5 Hang the display
Firstly lift up the TV plate installed the LCD, making the trough on the
arm fit to the trough on it ,according trough to embed the TV plate into
the wall plate.
Step5 Hang the display
Step 3

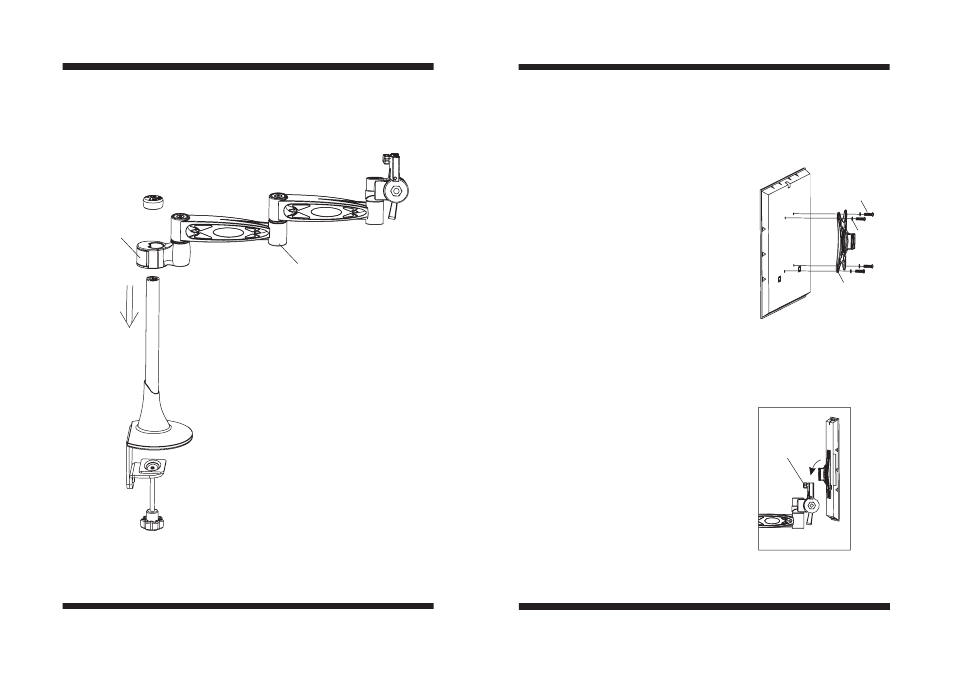

Remove the T ube Cover. Push the Plastic Button down and assemble the Arm.
Adjust the arm assembly to the height then free the Plastic Button.
Recover the tube cover.
desired
Arm Assemble Step 3 Arm Assemble
Fig 4
Tighten bolt
Fig 2
Plastic Buttom
Arm
Once the TV is positioned in place,
fasten the Tighten Bolts on Receiving
Joint clockwise to secure the display
to the Arm Assembly.
