H
OOKING
UP
THE
T
ELEVISION
4
T he left side Jack Panel contains three jacks that can be used
for your convenience. They include a Headphone Jack, and a
Data Jack.
1 HEAD PHONE JACK - Used for headphone listening in
any of the available modes. When headphones are connect-
ed to this jack the TV speakers will be muted.
2 DATA JACK - This jack is used in service applications
and should not be used by the customer.
H
EADPHONE AND
D ATA J ACK
Data
VIDEO
in
L
R
S-VIDEO
AUDIO
in
2
1
TV VIEWED FROM THE BACK
JACKS LOCATED
ON THE BACK
OF THE TV

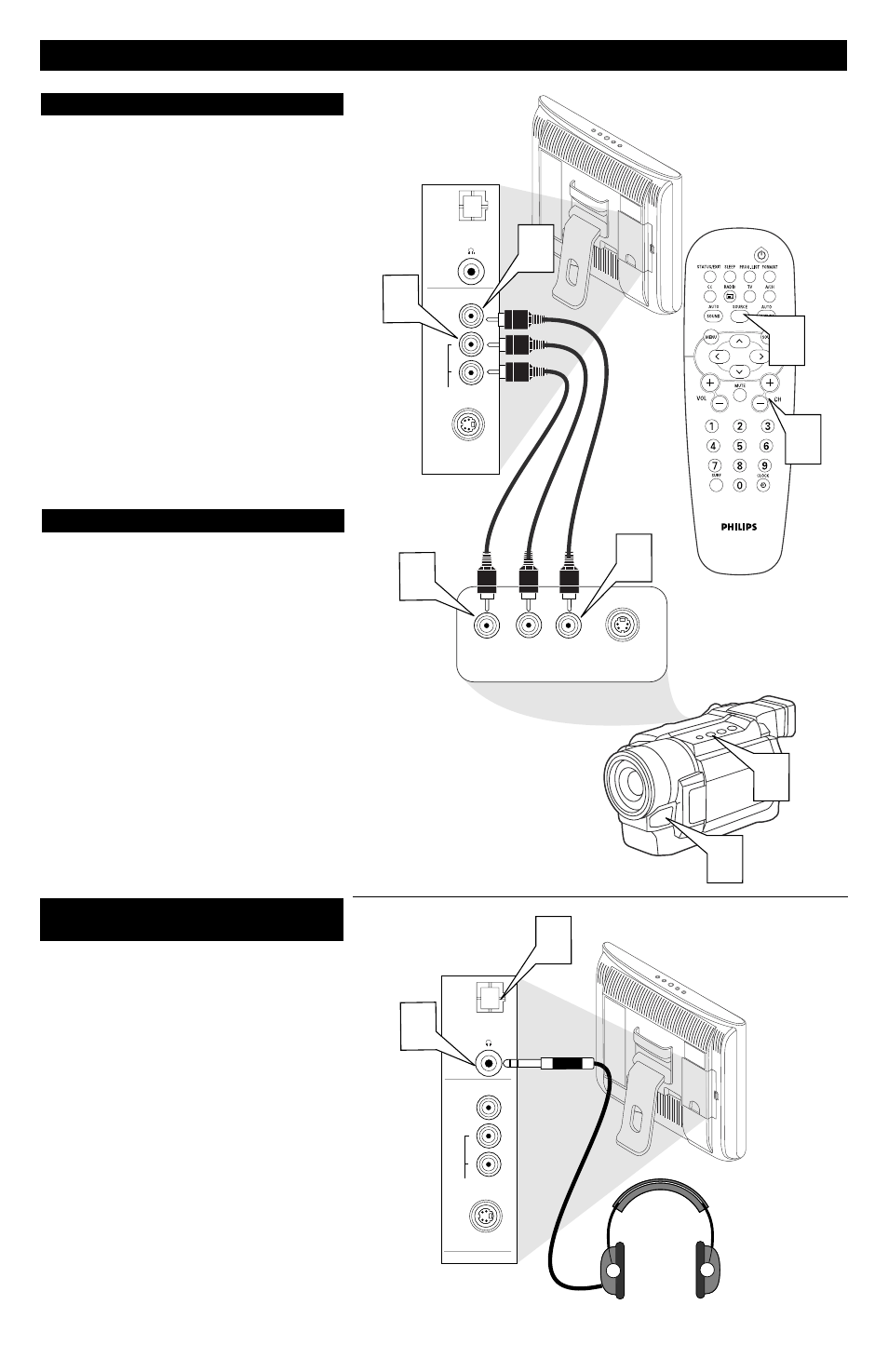

M uch like the AV 1 Input jacks, the Side jacks allow for extra
accessory device connections for items such as cameras or
gaming stations. The Side AV Input Jacks are located on the left
rear of the TV.
1 Connect the VIDEO (yellow) cable to the VIDEO in jack
on the left rear of the TV. Connect the other end of the
VIDEO (yellow) cable to the VIDEO OUT jack on the
back of the accessory device being used.
2 Connect the AUDIO (red and white) cables to the
AUDIO (left and right) AUDIO in (L & R) jacks on the
left rear of the TV. Connect the other ends of the AUDIO
(red and white) cables to the AUDIO (left and right) OUT
jacks on the rear of the accessory device being used.
3 Turn the accessory device and the TV ON.
4 Press the SOURCE or CH +, – buttons on the remote
control repeatedly to select the SIDE channel for the acces-
sory device. SIDE will appear in the upper left corner on
the TV screen when tuned properly.
5 With the accessory device ON, press the PLAY button to
activate the accessory device (DVD, VCR, CAMERA, etc.)
and view the playback on the television.
Note: An S-Video cable can be used in place of the yellow Video
cable if your device is equiped with an S-Video Output (see step
1). S-Video will provide better video playback.
S
IDE
AV I
NPUTS
S-VIDEO VIDEO AUDIO
RIGHT LEFT
1
Data
VIDEO
in
L
R
S-VIDEO
AUDIO
in
3
5
2
1
2
4
4
ACCESSORY DEVICE
(Camera., DVD, VCR, etc.)
JACK PANEL
BACK LEFT OF TV
AUDIO
CABLES
(Left and Right)
VIDEO CABLE
AN S-VIDEO CABLE CAN BE
USED IN PLACE OF THE
YELLOW VIDEO CABLE IF
DESIRED.
S-V IDEO I NPUT
OPTIONAL
HEADPHONES
