Estimate Your Savings Online
Estimate your savings based on the size of your pool, your current pump (or one you’re considering), and
local utility rates at
www.pentairpool.com . Just click on our Pool Pump Energy Savings Calculator.
An important note about utility rates
Posted rates and effective rates are not the same. Your
base electric rate may be 10¢ per kilowatt hour (kWh) or
less, but the true effective rate is much higher, since you
must also take into account:
1. Added user fees and taxes (vary by state and provider)
2. In some states, rates increase substantially as a consumer
uses additional electricity beyond a set baseline.
3. Many assess a surcharge per kWh during the summer
when demand is higher.

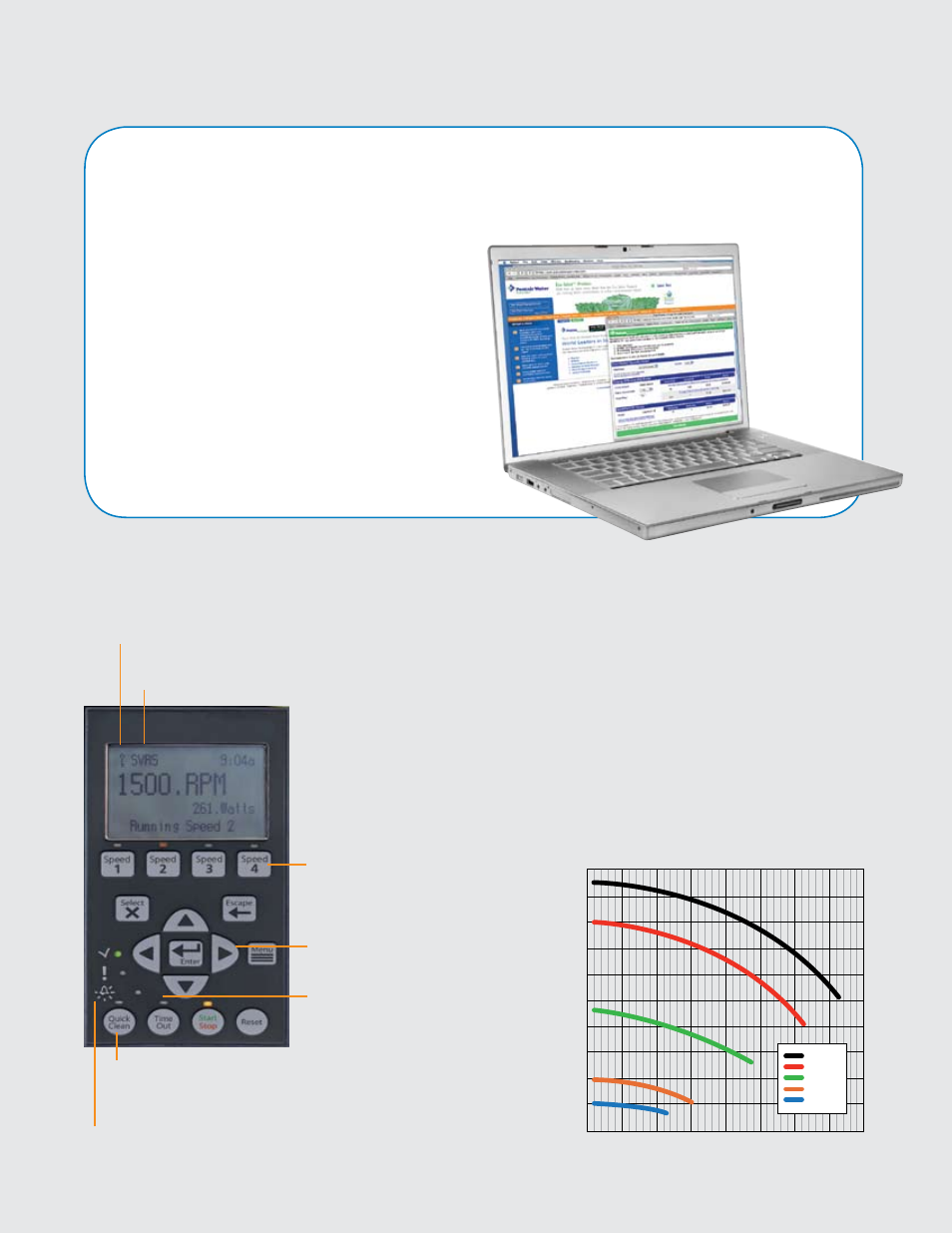

Function buttons to set speeds
for separate operations—filtration
cycles, spas, cleaners, water features
and more
Arrow buttons used to navigate
through menus and change settings
Time Out button allows you to
interrupt programmed schedules, as
needed, for a period you specify—
schedules automatically resume after
the “time out” period ends
0 20 40 60 80 100 120 140 160
100
90
80
70
60
50
40
30
20
10
0
3450 RPM
3110 RPM
2350 RPM
1500 RPM
1100 RPM
Flow Rate in U.S. GPM
Total Dynamic Head in Ft.
of
W
ater
So sophisticated, it’s simple
Programming IntelliFlo
VS+SVRS
is as easy as setting the stations on your car radio.
With the pump running, simply press the speed button assigned to the operation
you want to manage. Then, just press the “up” or “down” button to increase or
decrease the speed setting between 1100 RPMs and 3450 RPMs. It’s that simple to
optimize water flow for any application. Of course, your pool professional can help
you determine the perfect speed settings. And remember, as you change or add
equipment and features, speed settings can be quickly adjusted to ensure the lowest
amount of energy is consumed.
Pump Performance Curves
Safety lock-out feature (password
protected) prevents settings from being
changed by anyone but you
Display indicator SVRS mode
is activated
Quick Clean button is used to
start filter backwashing or vacuum
cycles—at the optimum flow required
Alarm Status light alerts you of conditions
that may need attention (messages appear on
LED display)
• •
•
•
•
•
