Panasonic AG-DV2500 User Manual

Page 3

Standard
DV/DVCAM

Mini-
DV/DVCAM

AG-DV2500

Standard DV

Mini-DV

AG-DV2500

AG-DVX100

Non-Linear Editing System

Video Monitor

DV Cable

IEEE1394 intreface

(Digital A/V and Remote)

DV Cable

IEEE1394 intreface

(Digital A/V and Remote)

DV Cable

IEEE1394 intreface

(Digital A/V and Remote)

Video Monitor

Analogue VTR

Playback

Record

Wireless
Remote Control

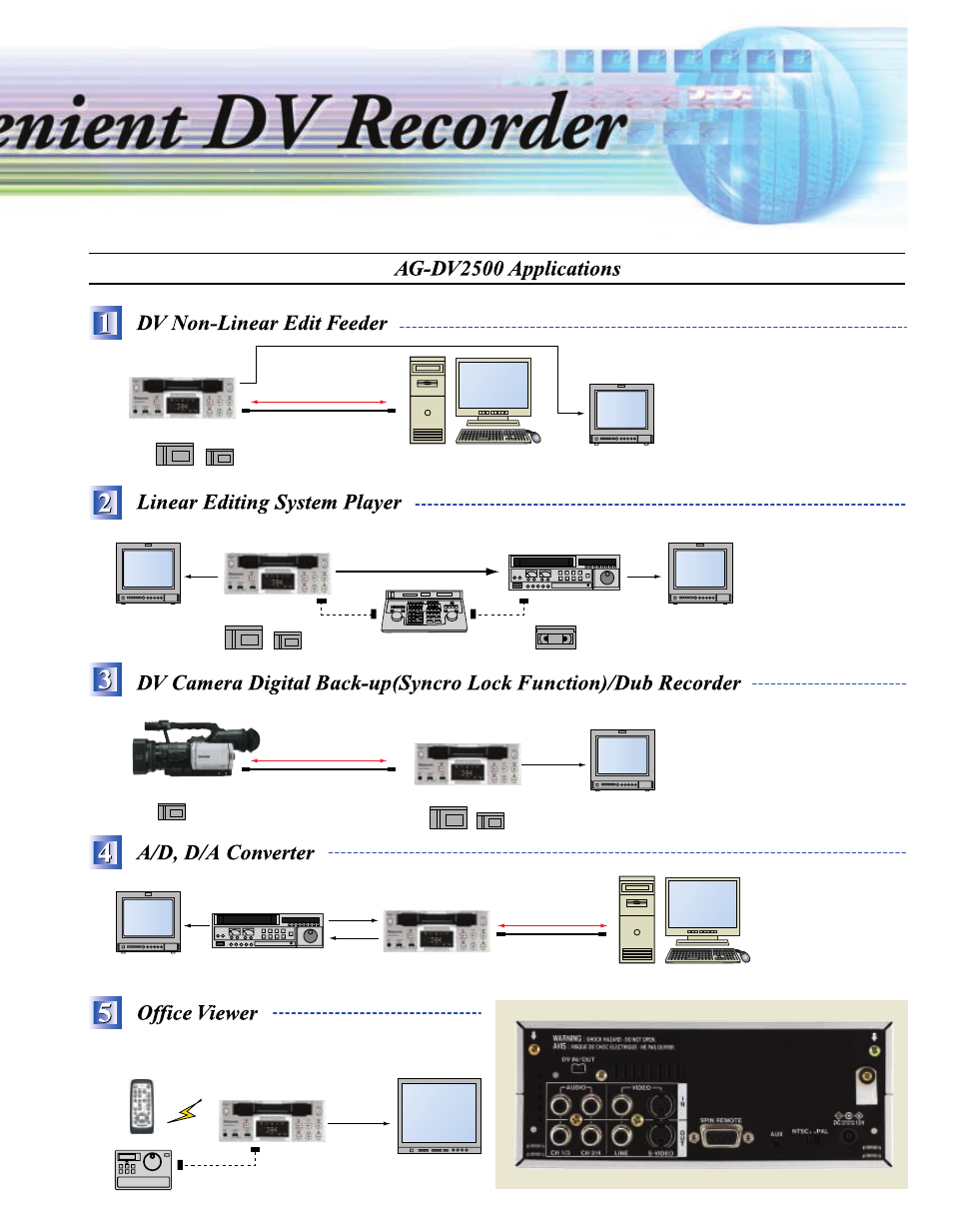

Easily preview DV data or check edited tapes. Lightweight at only 2.3 kg(5.1lbs),
the AG-DV2500 can easily be carried anywhere for on-the-spot playback.

The AG-DV2500 features analog
input/output (YC, composite). You
can input an analog signal and
convert it to a digital signal, or
convert a digital signal to analog.
This makes it possible to use the
AG-DV2500 as an A/D, D/A
converter for applications such as
uploading analog material to a
non-linear editing system, or
sending data from the non-linear
editing system to an analog VTR.

The AG-DV2500 can be linked to the rec start/stop
operation of the Panasonic AG-DVX100 mini-DV
camera-recorder for back-up or dub recording.
Select from the following three linking modes: Link
with camera recording, start AG-DV2500 recording
as the camera-recorder approaches the end of the
tape, or record only with the AG-DV2500.

Upload AV data to the non-linear editing system,
then download it after editing. The ability to send
and receive VTR control signals enables batch
processing when capturing footage by simply
registering the time code IN/OUT points.

The AG-DV2500 is ideal as the
source machine in a linear editing
system. Or, combine it with the
AG-A850 Editing Controller (with
RS-422A remote controller) and
the conventional S-VHS Editing
Recorder such as AG-DS555
(NTSC) or AG-8700(PAL) to easily
configure a cut editing system.

AG-DV2500

S-VHS Editing
Recorder

S-VHS

AG-A850

Video/Audio2CH

AJ-A95
9-pin Remote Controller

9-pin
Remote

Standard
DV/DVCAM

Mini-
DV/DVCAM

(DVCAM:Playback only)
