07M2172R- DS4
Patton is a registered trademark of Patton
Electronics Company in the United States
and other countries.

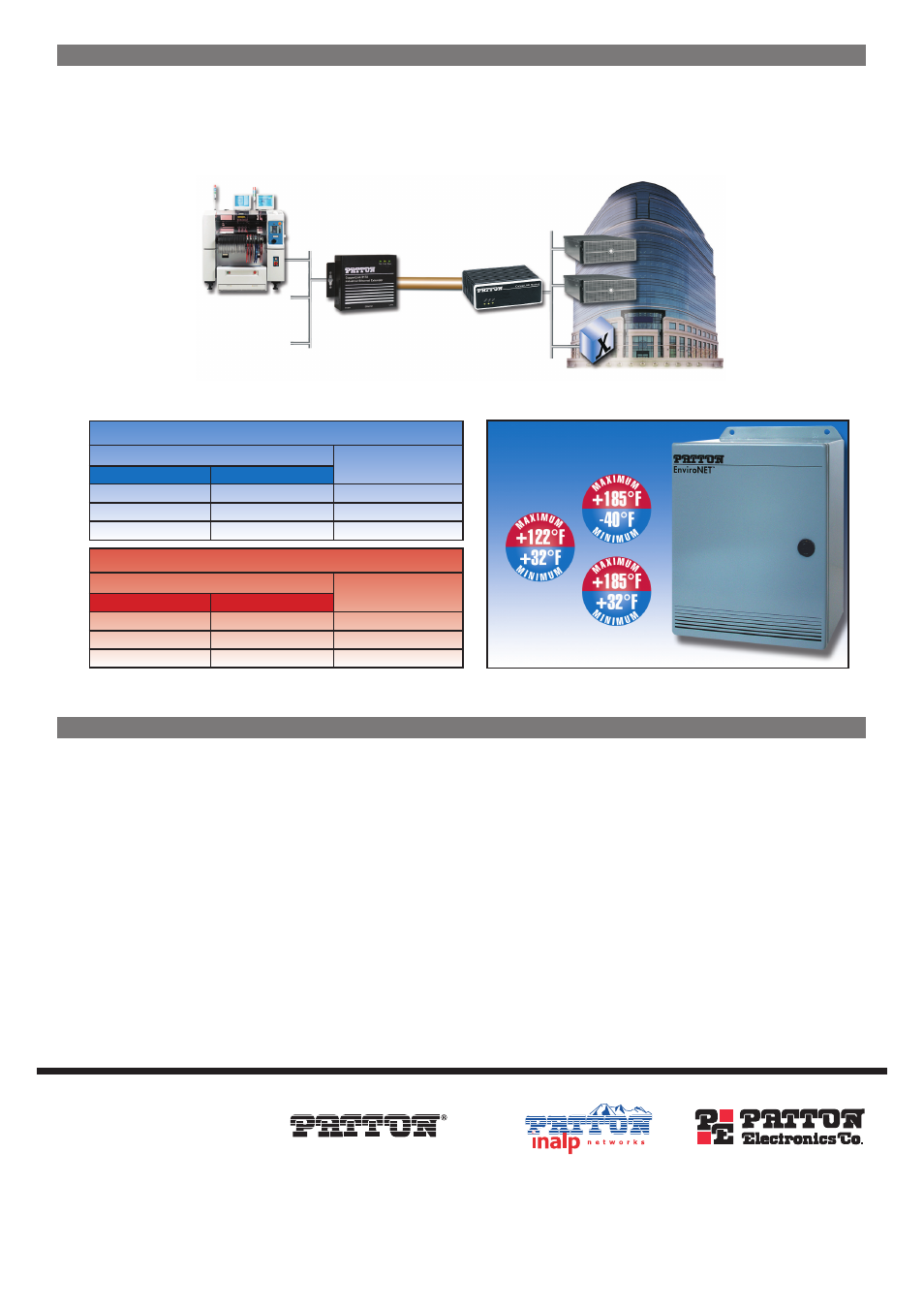

Workgroup Ethernet Extension Application
Specifications*
CopperLink line interface: RJ-45 (pin 4
= ring; pin 5 = tip); two position termi-
nal block
Ethernet interface: 8-position shielded
RJ-45. Auto-sensing 10/100Base-T with
half or full-duplex operation. DIP switch
capable of disabling 100-Mbps full-
duplex for equipment that does not
support 802.3X (Pause Packets)
Protocol: Transparent to high layer pro-
tocol. Supports 802.1Q VLAN tagging
Modulation: Quadrature Amplitude
Modulation (QAM) 4-band
Duplexing Method: FDD (Frequency
Division Duplexing)
Frequency Range: CopperLink:
0–12 MHz
Transmission: CopperLink line rate: Up
to 100 Mbps full duplex
Surge suppression: CopperLink line tran-
sient peak surge maximum: 200A
(8/20µs)
Front Panel Indicators: Power, Link,
Ethernet
Power Supply: External AC and DC
options: 120VAC, and universal input
(UI)—100–240 VAC, or optional -48
VDC, -24 VDC, or -12 VDC
Compliance: FCC Part 15A, CE Mark,
EMC Directive 89/336/EEC, Low-Voltage
Directive 73/23/EEC
Temperature
Standard: -10 to 70°C
Conformal Coated: -10 to 80°C
Humidity
Standard: Up to 90% non-condensing
Conformal Coated: 85% condensing
humidity from -10 to 35°C
Dimensions: 1.12H x 5.57W x 3.57D in.
(2.84H x 14.15W x 9.07D cm) with
brackets
1.12H x 4.44W x 3.57D in. (2.84H x
11.28W x 9.07D cm) without brackets
Weight: 0.4 lbs (0.18 kg) without
power supply
* Specifications subject to change without notice.
The Model 2172R multi-rate Ethernet Extenders are ideal for delivering
Ethernet links to remote buildings that are beyond the 328-foot (100-meter)
distance limit of Ethernet. The 100 Mbps throughput eliminates bandwidth
concerns previously experienced with other copper wired transmission tech-
nologies. By utilizing existing voice grade copper pairs the expense and has-
sle of installing low capacitance or fiber cable is no longer required.
Extend 10/100Base-TX Ethernet to reach
beyond its natural limitations
Up to 800 feet (243 meters) at 100 Mbps full
duplex over voice-grade twisted-pair
Pick &
place machine
Office
Model 2172
Model 2172R
Asymmetrical Line Rates
Line Rates (AWG 24/0.5 mm)
Distance in ft (m)
6,000 (1,830)
4,000 (1,200)
2,000 (610)
1
1
2
4
16
50
Upstream in Mbps
Downstream in Mbps
Symmetrical Line Rates
Line Rates (AWG 24/0.5 mm)
Distance in ft (m)
10
25
50
10
25
50
Upstream in Mbps
Downstream in Mbps
4,000 (1,200)
2,000 (610)
800 (245)
EnviroNET
™
models
also available
