10
VQT2M13
STEP 1 : Preparing the speakers
[BT730] [BT330] [BT235]
Caution
≥ Do not stand on the base. Be cautious when children are
near.
≥ When carrying speakers, hold the stand and base parts.
Preparation
≥ To prevent damage or scratches, lay down a soft cloth and
perform assembly on it.
≥ For wall mount, refer to page 40.
≥ Keep the screws out of reach of children to prevent
swallowing.
[BT730]
[BT330] [BT235]

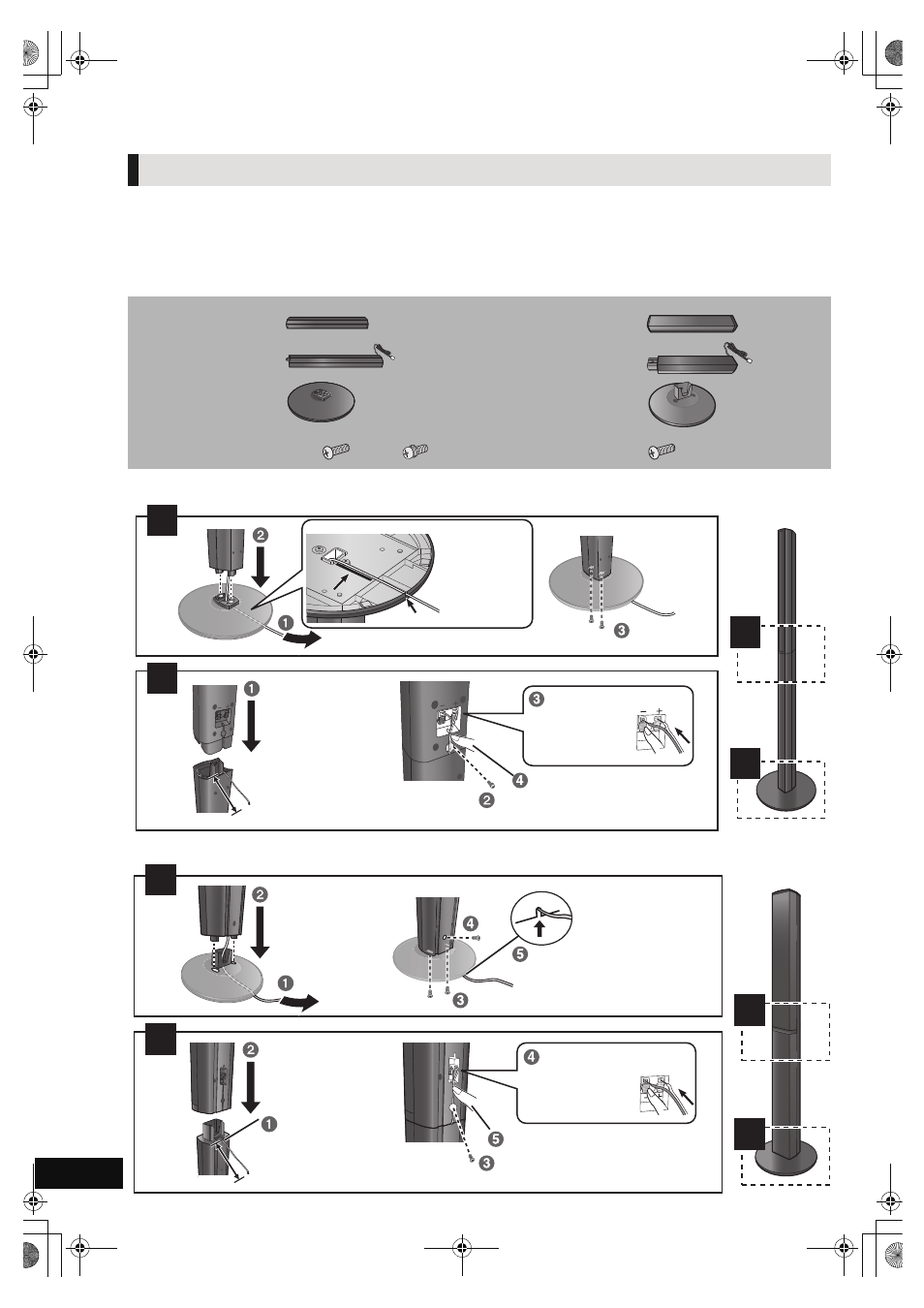

Assembling the speakers
[BT730]
2 Front speakers
2 Stands (with cables)
2 Bases
4 Screws A
2 Screws B [BT330] [BT235]
2 Front speakers
2 Stands (with cables)
2 Bases
8 Screws
A B
1
2
2
1
Tighten
securely.
Insert the wire fully.
r: White
s: Blue line
Push!
Leave about 80 mm (3 5 / 32
q)
Tighten securely.
Screw A
Press into the groove.
Screw B
Pull the cable
straight along
the line and
slide into the
groove.
Back of the base
1
2
2
1
Slide into the groove.
Tighten securely.
Insert the wire fully.
r: White
s: Blue line
Push!
Position the cable
between the ridges.
Leave about 120 mm (4 23 /
32
q)
Press into the groove.
Tighten securely.
Screw
