Parts and functions

(Continued)

!14" KNEE/FUNC button

This selects the large item displayed on the
LCD panel. The display will switch to KNEE
# FUNC # before entering the menu mode

# KNEE step by step every time the button
is pressed.

!15" KNEE lamp

This lamp is on when the KNEE is selected
on the LCD panel.

!16" FUNC lamp

This lamp is on when the FUNC is selected
on the LCD panel.

!17" SHUTTER/SYSTEM button

This selects the large item displayed on the
LCD panel. The display will switch to
SHUTTER

# SYSTEM # before entering

the menu mode

# SHUTTER step by step

every time the button is pressed.

!18" SHUTTER lamp

This lamp is on when the SHUTTER is
selected on the LCD panel.

!19" SYSTEM lamp

This lamp is on when the SYSTEM is
selected on the LCD panel.

!20"

3 button

!21"

4 button

This button switches the display on the LCD
panel and selects a medium item from the
menu of the unit.
The lamp is on when the button is pressed
and off when the button is released.

!22" MENU ON button

To open the menu on the camera recorder,
press this button continuously for 3 seconds.
In this case, a message “CAMERA MENU
OPEN” is displayed on the LCD panel. The
lamp is on at this time, and operations of the
menu and the scene file on the unit are not
available.
If this button is pressed when the menu of
the camera recorder is open, the menu will
close.

!23" CHARA ON button

This selects whether any characters are
overlaid on the video signals output from the
VIDEO OUT connector of the unit.
When the power is on, the unit is in the state it
was before turning off the power.
The lamp is on when characters are loaded
onto the signals, while it is off when
characters are not loaded.

!24" Rotary encoder 1
!25" Rotary encoder 2
!26" Rotary encoder 3

This is used for operating the menu on the
LCD panel or the camera menu.
The camera menu is operated by using the
right rotary encoder.
The operation of the rotary encoder is the
same as the JOG switch on the camera (+,
–, PUSH)

!27" Vacant button

This is a vacant button for which no function
is assigned.

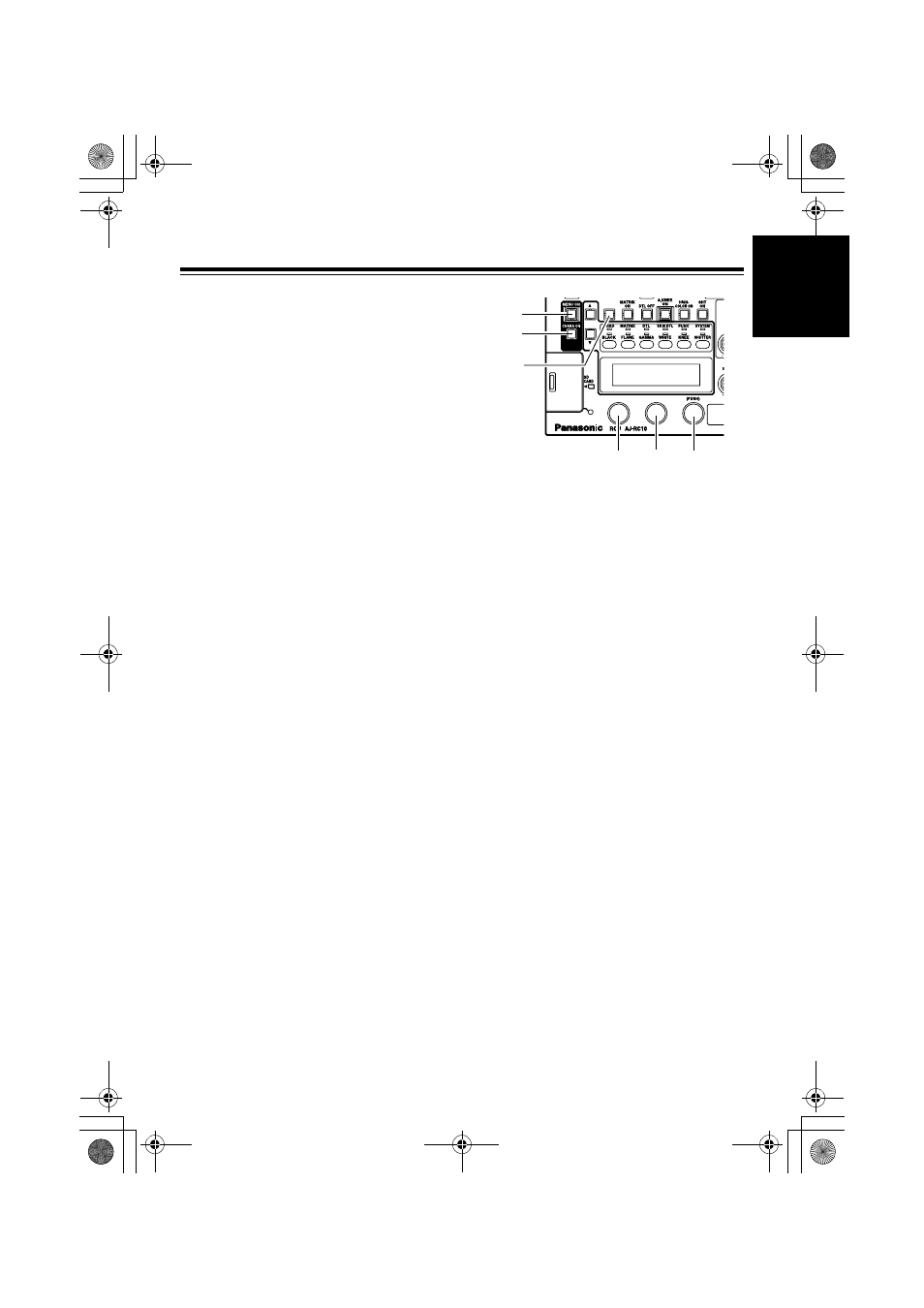

!22"

!27"

!24"

!23"

!25" !26"
