Palsonic TFTV680 - Manual (Page 15)

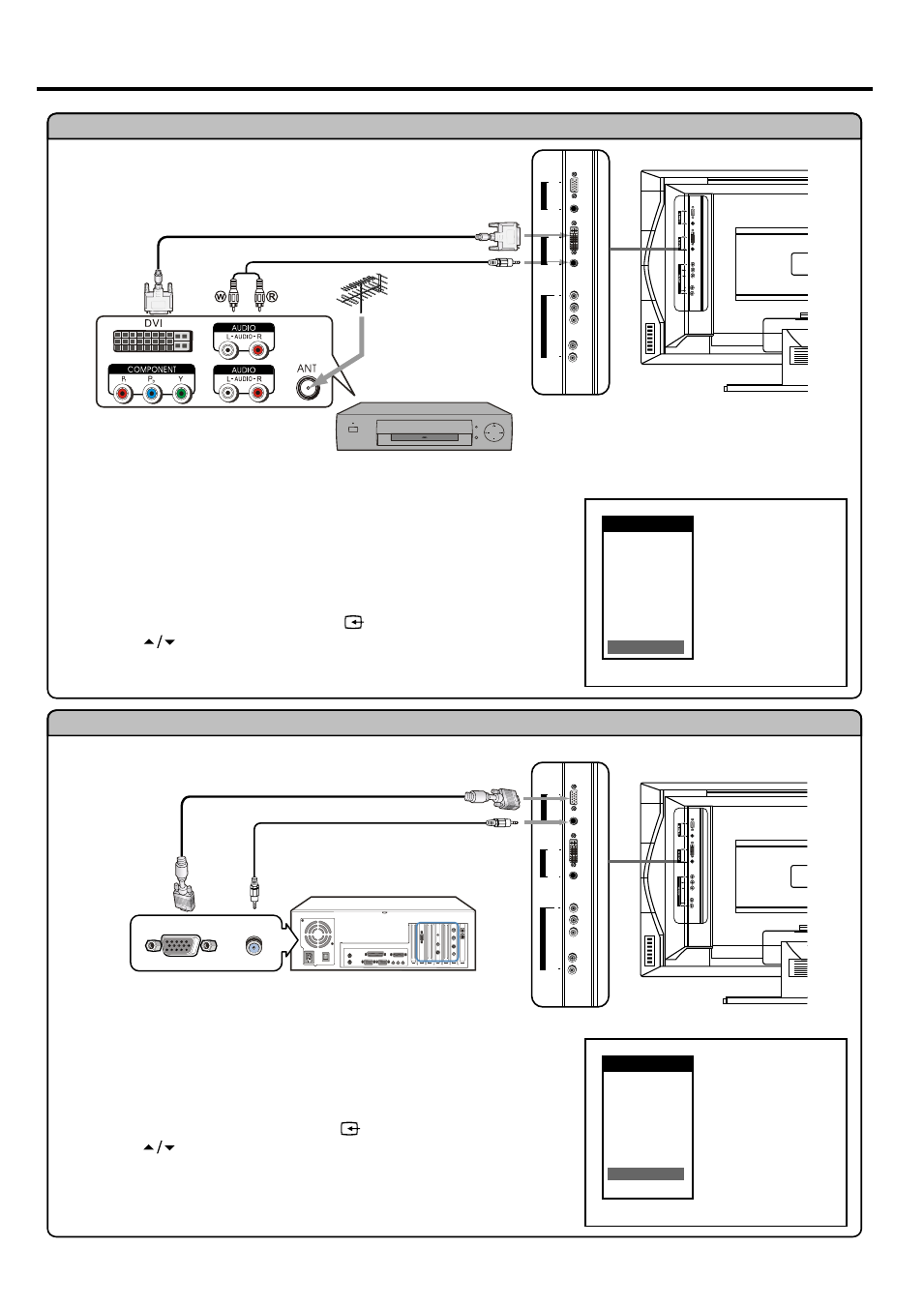

Connect a PC
D-Sub IN
D-Sub
AUDIO
AUDIO
DVI-D
DVI-D IN
HDTV IN
Cr/Pr
Cb/Pb
R
L/MONO
AUDIO
Y
Connections
(continued)
12
How to connect:
Connect the cable or antenna to the antenna input jack on the DTV receiver.
Conned the DVI cable between the DVI input interface on the unit and DVI
output interface on the DTV receiver.
Connect the Audio cable between the AUDIO input jack on the unit and
AUDIO output jacks on the DTV receiver.
To Watch DTV
1. Turn on your LCD TV, press SOURCE button on the remote control
2. Press CH to select DVI.
3. Press ENTER to confirm.
4. Turn on your DTV receiver.
1. TV
2. Video
3. S-Video
4. SCART 1
5. SCART 2 AV
6. SCART 2 Y/C
7. YPbPr
8. D-Sub
9. DVI
Select Main Source
DTV Receiver
Rear of the DTV receiver
Connect a DTV receiver
DVI
cable
Audio
cable
How to connect:
Connect a D-Sub cable between the S-Sub interface on the PC the
D-Sub interface on the unit.
Connect an Audio cable between the AUDIO output on the PC and
AUDIO input jack on the unit.
To Watch the PC screen
I. Turn on your LCD TV, press SOURCE button on the remote control.
2. Press CH to select D-Sub (D-Sub).
3. Press ENTER to confirm.
4. Turn on your PC and check for PC system requirements.
5. Adjust the PC screen.
1. TV
2. Video
3. S-Video
4. SCART 1
5. SCART 2 AV
6. SCART 2 Y/C
7. YPbPr
8. D-Sub
9. DVI
Select Main Source
D-Sub
cable Audio
cable
PC
D-Sub IN
D-Sub
AUDIO
AUDIO
DVI-D
DVI-D IN
HDTV IN
Cr/Pr
Cb/Pb
R
L/MONO
AUDIO
Y
