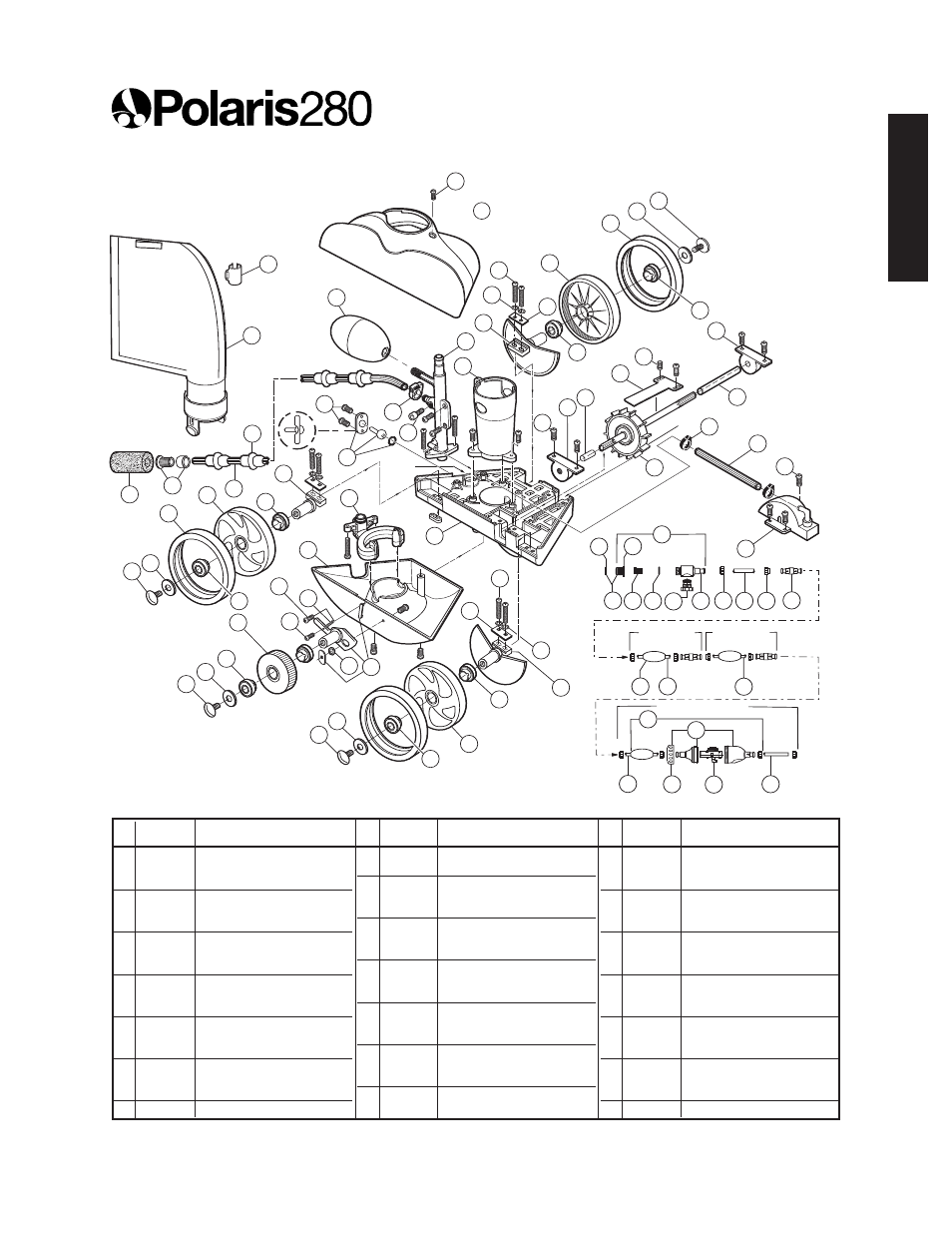

Exploded Parts Diagram
English
1 K16 All-Purpose Bag* 1
2 C40 Screw, 10-32 x 3/8" SS Pan 20
3 K5 Top 1
4 A20 Float, Head 1
5 9-100-3105 Sweep Hose Scrubber* 1
6 B25 Orifice Tip w/Orifice Tip Guard 1
7 B5 Sweep Hose Complete*
8 B10 Wear Rings* 8
9 B15 Sweep Hose Attach Clamp 1
10 B20 Adjust. Screw, Sweep Hose 1
11 K30 Feed Pipe with Elbow 1
12 K20 Vacuum Tube 1
13 C66 Axle, Large (w/Sand/Gravel Grd) 2
14 C76 Screw, 10-32 x 7/8" SS Pan 10
15 C45 Lock Washer for C36 7
16 C70 Axle Plate for C65/C66 3
17 C60 Ball Bearings, Wheels 8
18 C55 Wheel Screw, Plastic 4
19 C64 Wheel Washer, Plastic 4
20 C10 Tire, MaxTrax ® * 3
21 C6 Wheel, Large (No Bearings Incl.) 3
22 C65 Axle, Large (Rear Wheel Only) 1
23 C131 Thrust Jet Kit 1
24 C16 Idler Wheel, Small 1
25 C30 Screw, 4-40 x 3/16" SS Pan 1
26 C32 Screw, 6-32 x 1/2" SS Pan Head 1
27 C25 Spring for C36 1
28 C36 Swing Axle Kit 1
29 K10 Base with Bracket 1
30 K25 Water Management System 1
31 K145 Frame 1
32 C80 Ball Bearings, Turbine 2
33 C83 Turbine Shaft Tubes 1
34 9-100-7170 Hose Clamp for WMS 2
35 A40 Turbine Shaft Shield 1
36 C86 Drive Shaft Assembly 1
37 C120 Hose for C110, 7-1/2" 1
38 C110 Turbine Cover with Elbow 1
39 9-100-1018 Bag Collar 1
40 10-112-00 Restrictor Disks, Red and Blue 1
41 6-500-00 Universal Wall Fitting (UWF) 1
42 9-100-9001 UWF Connector Assembly 1
43 10-108-00 UWF Restrictor Kit 1
44 6-504-00 Filter Screen, UWF/QD 1
45 6-505-00 O-ring, UWF/QD 1
46 9-100-9002 Pressure Relief Valve, Black 1
47 D29 Quick Disconnect, UWF 1
48 D15 Nut, Feed Hose 10
49 ** Adapter Hose, 8-1/2" 1
50 D20 Swivel, Ball Bearing 3
51 D10 Float, Feed Hose 9
52 D45 Feed Hose, 10 Ft 2
53 D50 Feed Hose, Leader, 10 Ft 1
54 G52 Back-up Valve Kit 1
55 G54 Case Kit for G52 1
56 G57 Collar, Back-up Valve 1
57 G53 Mechanism for G52 1
*Wear items not covered by warranty.
No. Part # Description Qty No. Part # Description Qty No. Part # Description Qty
