OPERATION
5 Viper R Upright Vacuum Cleaner (06–03)

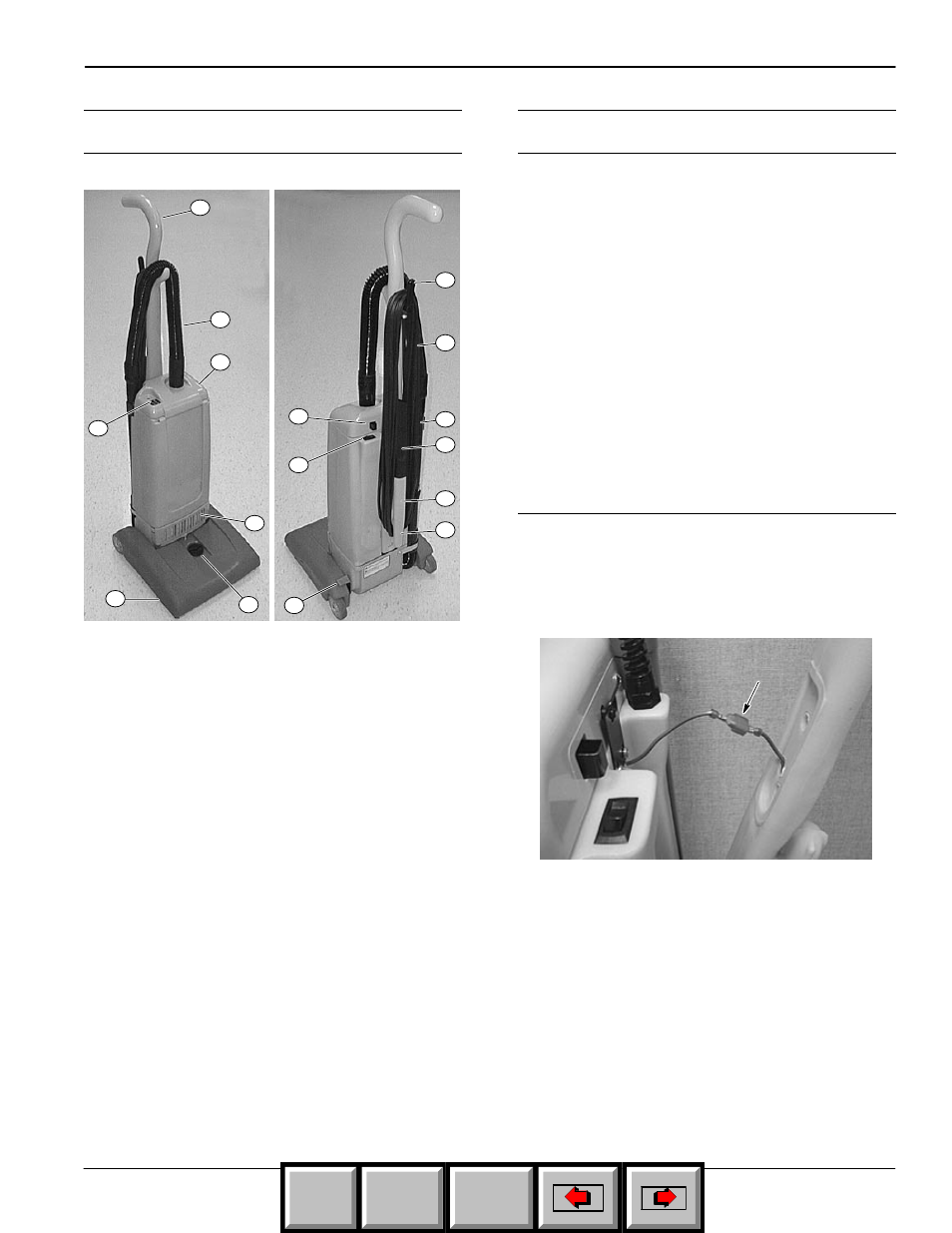

MACHINE COMPONENTS
6
1
4
8
15
13
14
16
9
7
12
2
5
3
10
11
1. EZGrip t Handle
2. Carrying Handle
3. Cleaning Wand
4. Expandable Vacuum Hose
5. Onboard Crevice Tool
6. Filter Bag Compartment Lid
7. Bag Compartment Lid Latch
8. Electronic Sensor System
9. Power ON/OFF Switch
10. 12m (40 ft) Power Cord
11. Quick-Release Cord Hook
12. Lower Cord Hook
13. Exhaust Filter Cover
14. Brush Base w/ Edge Cleaning Shoe
15. Brush Height Adjustment Dial
16. Handle Release Latch
MACHINE INSTALLATION
Carefully check carton for signs of damage. Report
damages to carrier immediately.
Check Machine Contents to ensure carton is
complete. Contact distributor for missing items.
Machine Contents:
- Machine
- Handle
- Vacuum Hose/Wand
- Crevice Tool
- Paper Filter Bag (Pre-installed)
- Secondary Filter (Pre-installed)
- Exhaust Filter (Pre-installed)
ATTACHING HANDLE
1. Remove two factory-installed handle mounting
screws from bag compartment.
2. Connect the anti-static wires and tuck wire
connectors inside of handle (Figure 1).
FIG. 1
3. Align handle on bag compartment and replace
screws securely (Figure 2).
