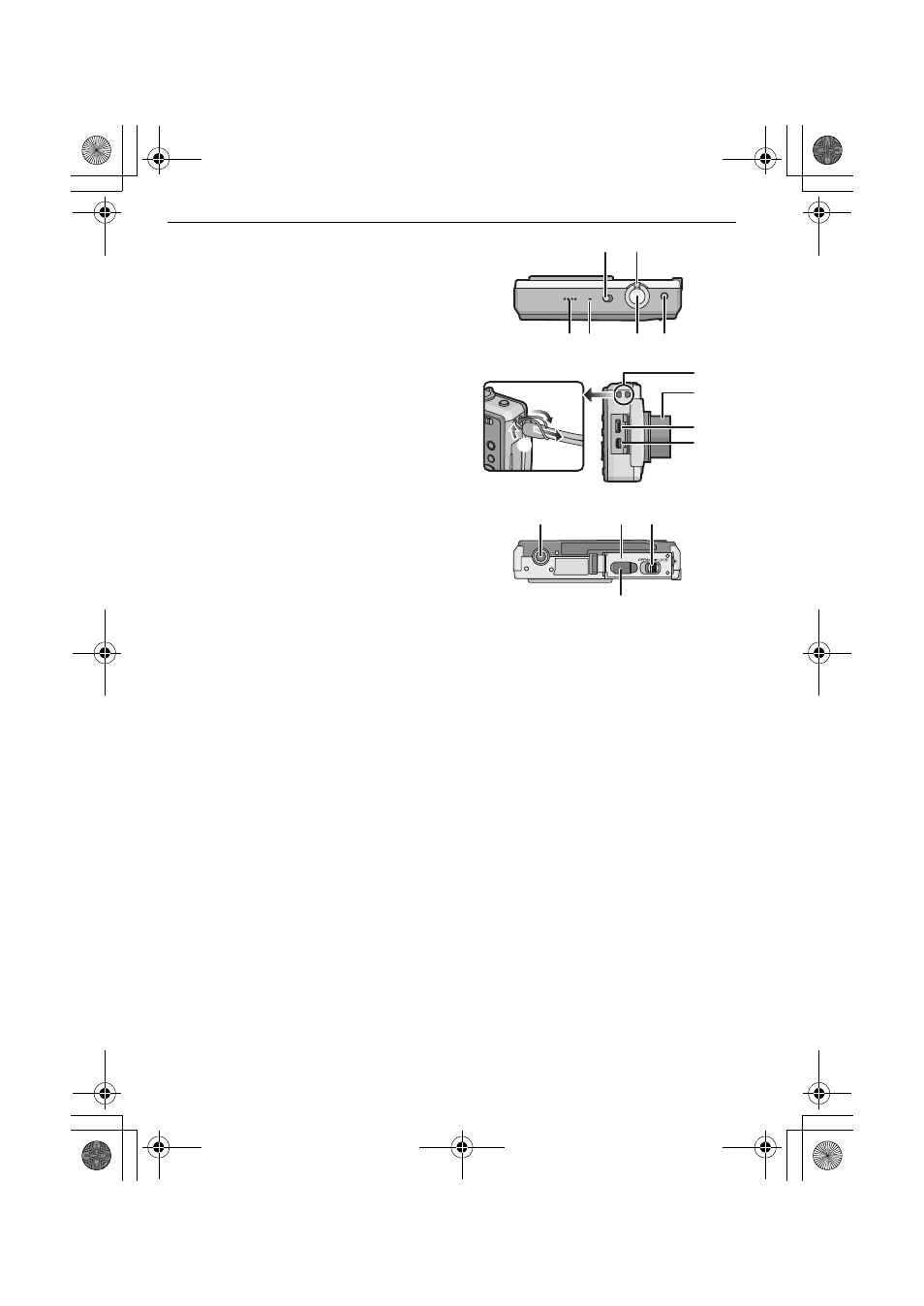

12 Camera ON/OFF switch (P19)
13 Zoom lever (P34)
14 Speaker (P98)
15 Microphone (P66, 83, 102)
16 Shutter button (P29, 66)
17 [E.ZOOM] button (P36)
18 Hand strap eyelet
• Be sure to attach the hand strap when
using the camera to ensure that you will
not drop it.
19 Lens barrel
20 [COMPONENT OUT] socket (P111)
21
[AV OUT/DIGITAL] socket (P104, 106, 110)
22 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
23 Card/Battery door (P16)
24 Release lever (P16)
25 DC coupler cover (P17)
• When using an AC adaptor, ensure that
the Panasonic DC coupler (DMW-DCC4;
optional) and AC adaptor (DMW-AC5PP;
optional) are used. For connection details,
refer to P17.
12
14
13
15 16 17


19
21
20
18
22 23 24
25
