41
TRACTOR -- MODEL NUMBER 271190

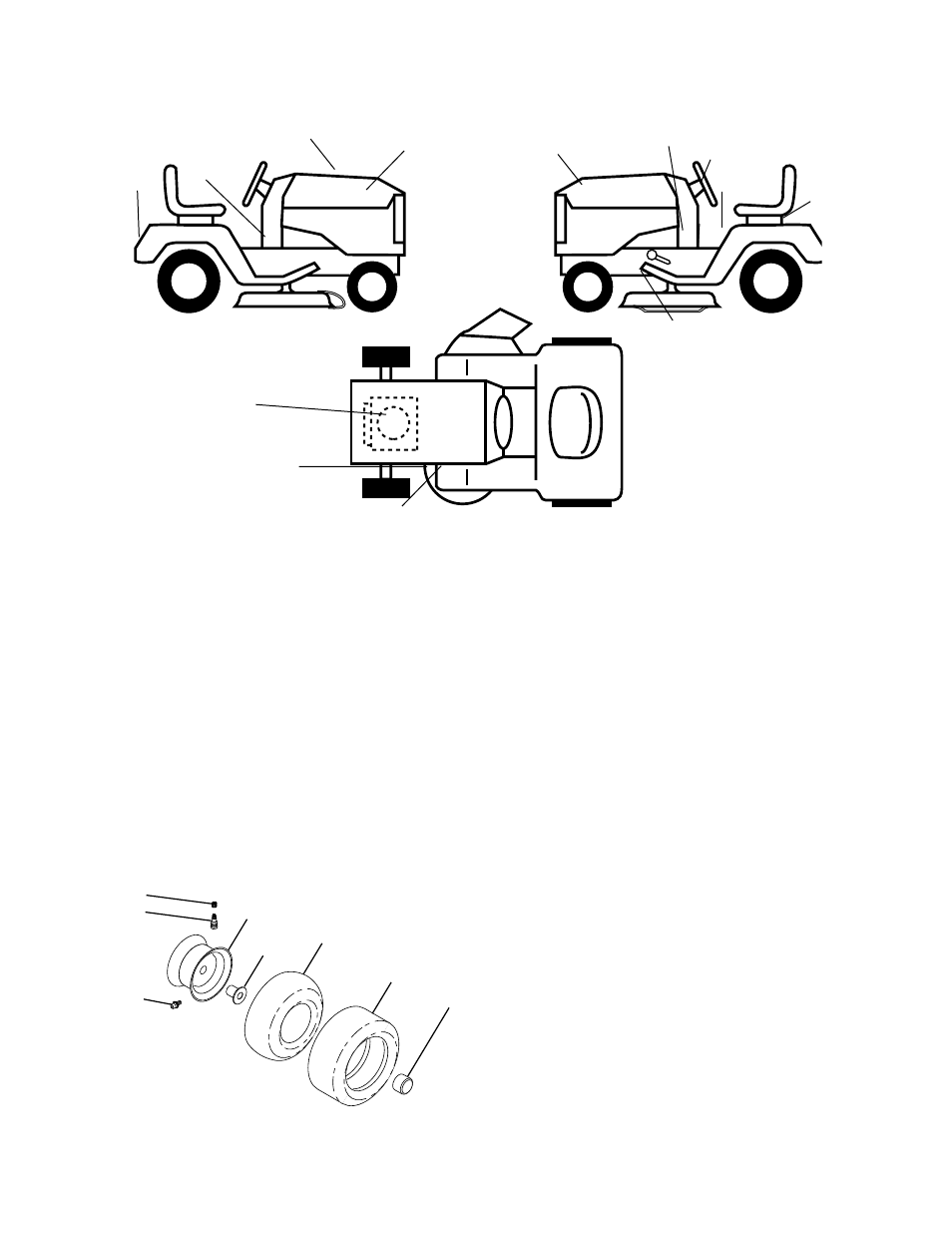

DECALS
15
3 7
3
4
13
KEY PART
NO. NO. DESCRIPTION
1 181685 Decal Lower Dash
2 184769 Decal Engine
3 171828 Decal Hood
4 171829 Decal Fender
5 145005 Decal Battery Danger
6 189806 Decal Replacement
7 171830 Decal Steering
8 156867 Decal, Oper sdl P/L Gear
WHEELS AND TIRES
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X624 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (front Wheel
Only)
8 106108X624 Rim Asm 8"rear Service
9 124635X Tire Rear
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
6
2
1
5,8
4,10
3,9
11
7
wheel_1
8
11
2
1
12
KEY PART
NO. NO. DESCRIPTION
11 156439 Decal Fender Dnger
12 181249 Decal, Clutch/Brake Eng
13 146046 Decal V-Belt Dr Sch tractor
15 136832 Decal V-Belt sch
- - 138311 Decal Handle Lft Height
Adjust (Lift Handle)
- - 189956 Owner’s Manual, English
- - 189957 Owner’s Manual, Spanish
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
5
1
6
