REPAIR PARTS
TRACTOR - - MODEL NUMBER PD2042STA, PRODUCT NUMBER 954 56 97-07

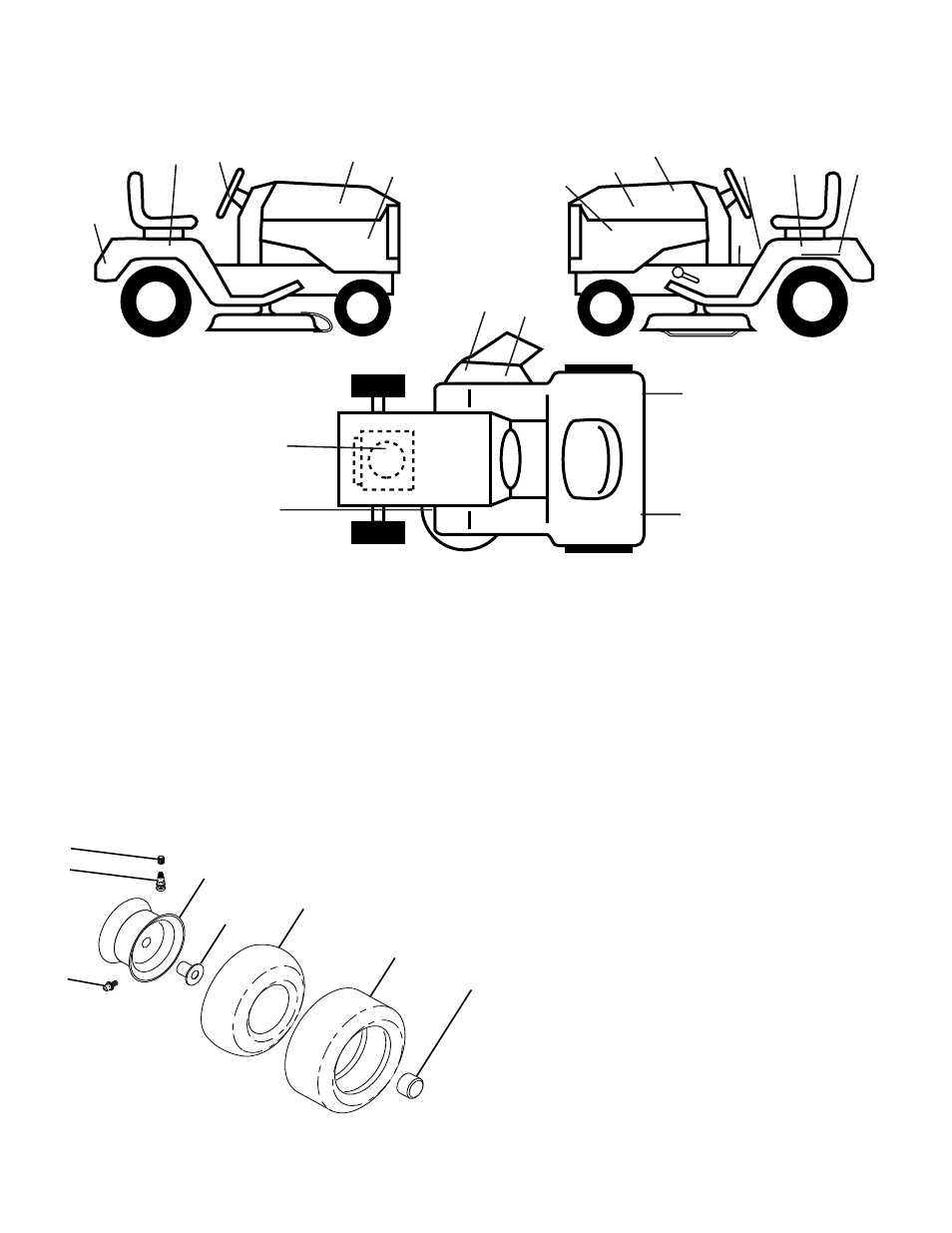

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
5,8
4,10
3,9
11
7
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
10
3
16
9
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 170455 Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X421 Rim Asm 6"front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel Only)
8 106108X421 Rim Asm 8"rear Service
9 170456 Tire R Ts 20x10-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X421 Cap Axle 1 50 X 1 00
- - 144334 Sealant, Tire ( 10 oz. Tube)
8
20
14
5
1 156369 Decal Oper
2 176305 Decal Fender Side
3 186164 Decal Hood LH
4 185809 Decal Side Panel Logo
5 170851 Decal HP Engine
6 179128 Decal Deck "B" 42"
7 185439 Decal Repl. Parts
8 170563 Decal Warning Mult-Language
9 172740 Decal Fender Logo
1
2
2 11
19
10 157140 Decal Fender Danger E/F
11 172743 Decal Ins Strg Whl
14 160396 Decal V-Belt Schematic
16 186163 Decal Hood Rh
18 173587 Decal Fender Refl ector RH
19 173589 Decal Fender Refl ector LH
20 145005 Decal Bat Dan/Psn
- - 179768X428 Pad Footrest LH
- - 179769X428 Pad Footrest RH
- - 138311 Decal Handle Lft Height Adjust
- - 185491 Manual Owner's (English)
- - 185492 Manual Owner's (French)
