6

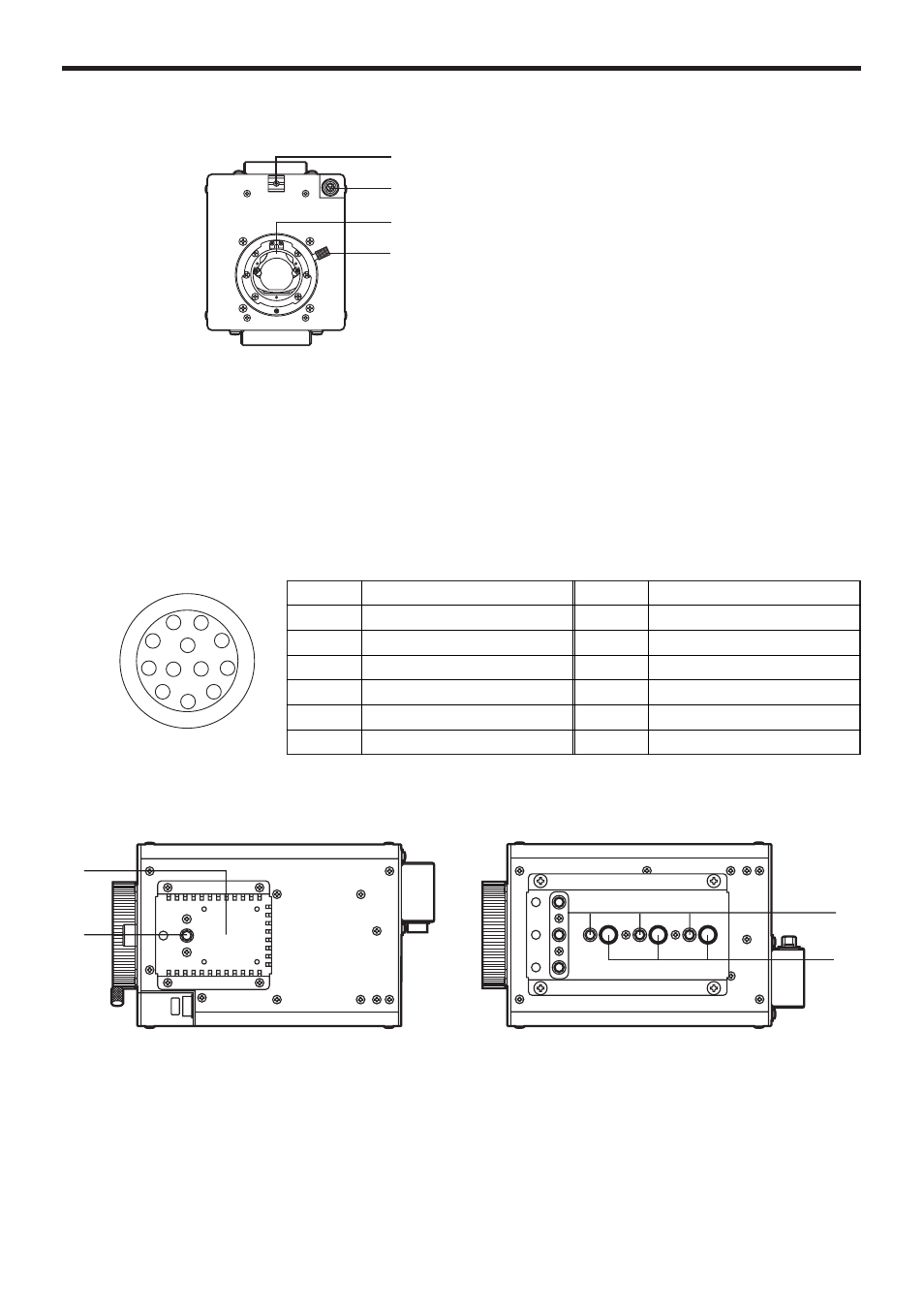

Major Operating Controls and Their Functions
_ Front Panel
5 Cooling Fan
• Do not block or obstruct the ventilation during operation. It may otherwise cause
internal heating or fire.
• The life of this fan is approximately 50,000 hours (at room temp. 25°C). Replace the
fan as needed.
(When the room temperature is higher than 35°C, replace the fan earlier.)
Be sure to ask the dealer for the replacement.
_ Top and Bottom Panels
3
4
1
2
LENS
5
6
6
7
1
2
3
4
5
6
7
8
9
10
11 12
Pin No.
1
2
3
4
5
6
Signal
Return control
VTR-S/S
UNREG GND
Iris manual selection
Iris control
UNREG 12V
Pin No.
7
8
9
10
11
12
Signal
Iris follow
Iris auto selection
——
——
——
NC
1 Lens Mount
2/3q standard bayonet type (B4 mount) lens is installed.
2 Lens Fixing Ring Knob
Lens is fixed by turning the knob counterclockwise.
3 Cable Clamp
Used to clamp the lens cable.
4 Lens Connector [LENS]
Used to connect the camera cables of the lens.
